Schneider Electric power bases are one of two basic units that are required every when used in conjunction with a control unit. This type of power base is independent of the control voltage motor power, it also incorporates the braking function.

Current shown is when at a voltage of 440V is utilised. LUB**** series power bases are non-reversing, LU2B**** series are reversing types.

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

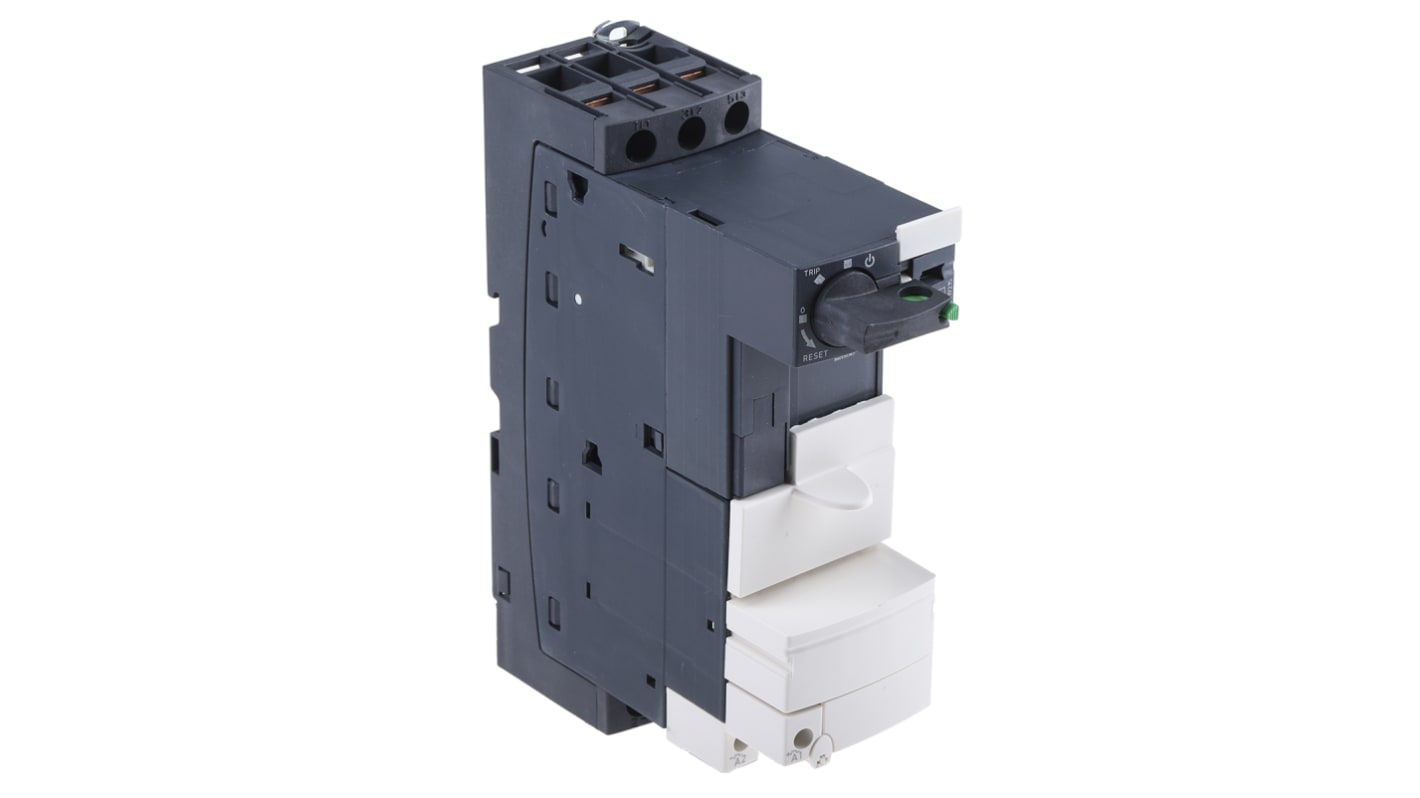

Get your industrial motor off to a solid start with this power base from Schneider Electric. It works with DOL starters in the LUC range (such as 272-527) to deliver the safe supply of energy your engine needs to run smoothly. Thanks to its 32A current rating, this unit handles heavy-duty applications with ease. Its modular design means you can integrate it with other devices on your circuit for advanced control and protection. You can either clip this flexible component directly onto your DIN rail or fasten it to a mounting plate.

• Low weight of 900g for easy handling and minimal strain
• Mechanical durability of 15 million operating cycles, so you can count on a long-term performance
• Rated impulse withstand voltage of 6kV means it handles high power surges without breaking a sweat
• Compact dimensions of 154 (H) x 45 (W) x 126mm (D) for space-efficient installation in tight setups

• Automotive industry
• Conveyor systems
• Oil and gas plants

Yes. With a power rating of 15kW, this unit loses just 3W to heat, so it's energy-saving.

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
