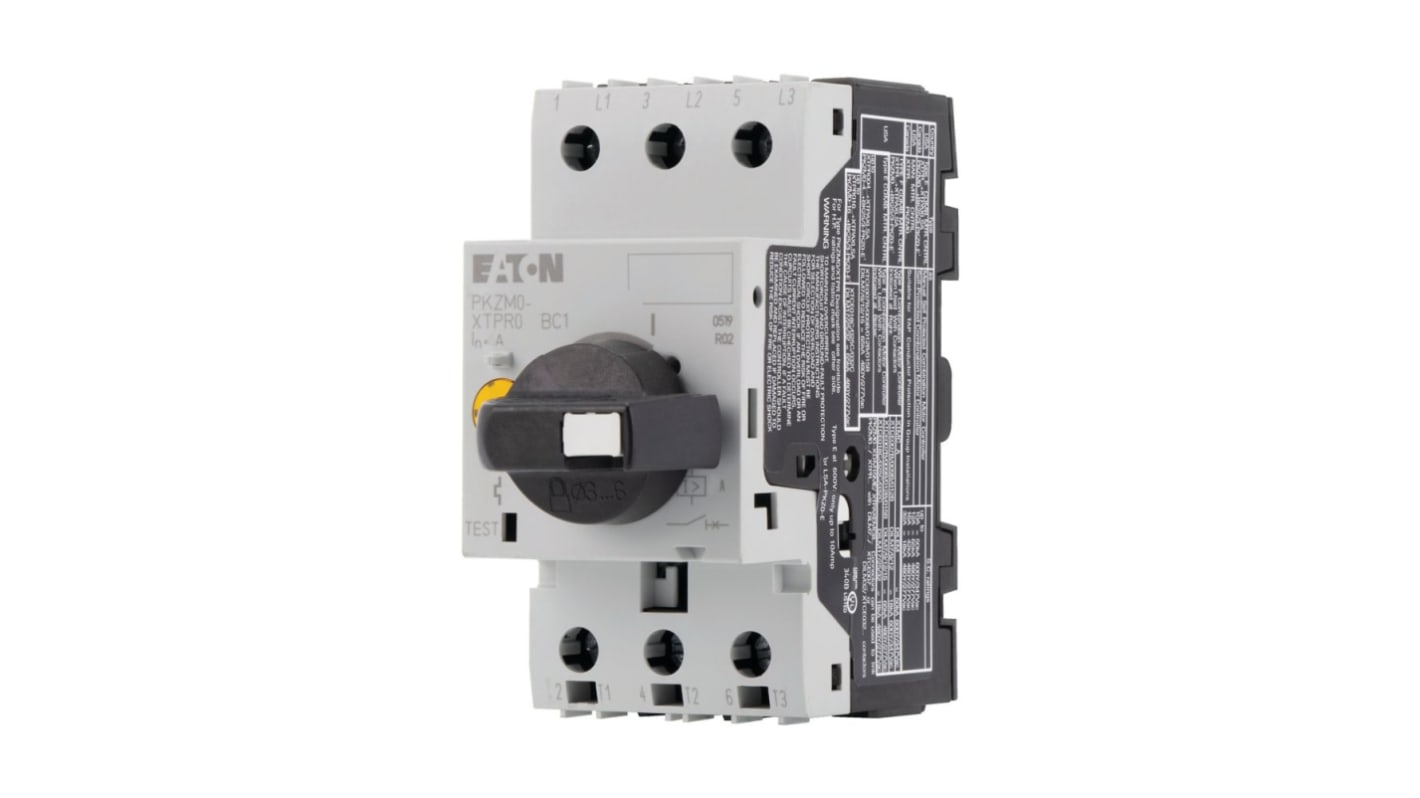

Eaton 25 → 32 A Motor Protection Circuit Breaker, 690 V ac
- RS Stock No.:
- 866-1329
- Mfr. Part No.:
- 156398 PKZM0-32/AK
- Brand:
- Eaton
Subtotal (1 unit)*
£209.30
(exc. VAT)
£251.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £209.30 |
*price indicative
- RS Stock No.:
- 866-1329
- Mfr. Part No.:
- 156398 PKZM0-32/AK
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 25 → 32 A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V ac | |
| Overall Length | 45mm | |
| Overall Width | 76mm | |
| Overall Depth | 94mm | |
| Minimum Operating Temperature | -25°C | |
| Voltage Rating | 690 V | |
| Maximum Operating Temperature | +55°C | |
| Terminal Type | Screw | |
| Breaking Capacity | 1 kA | |
| Number of Poles | 3 | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 25 → 32 A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V ac | ||
Overall Length 45mm | ||
Overall Width 76mm | ||
Overall Depth 94mm | ||
Minimum Operating Temperature -25°C | ||
Voltage Rating 690 V | ||
Maximum Operating Temperature +55°C | ||
Terminal Type Screw | ||
Breaking Capacity 1 kA | ||
Number of Poles 3 | ||
Eaton Motor Protection Circuit Breaker, 3.19W Heat Dissipation Per Pole, Lockable Design - 156398 PKZM0-32/AK
Shield your industrial devices from electrical hazards with this motor protection circuit breaker from Eaton. It monitors the power supply and promptly shuts down a circuit when a phase failure occurs. This lets you identify and address faults swiftly, so downtime is kept to a minimum. The unit's front-facing rotary handle provides a clear view of the switch's position and at-a-glance confirmation of its status. A lockable design enhances safety by preventing unauthorised personnel from accessing or tampering with sensitive equipment such as wind turbines and HVAC systems.
Features & Benefits
• IP20 rating means it's finger-safe and resistant to dust or objects over 12mm, including tools and wires
• Maximum current rating of 32A for use in high-powered applications
• DIN rail mounting for wide compatibility with existing equipment
• Maximum current rating of 32A for use in high-powered applications
• DIN rail mounting for wide compatibility with existing equipment
What type of conductors can I connect to this breaker's terminals?
You can terminate the device using flexible or solid conductors, so it's a versatile option.
What size is the unit?
The MPCB has a compact size of 94 (H) x 45 (W) x 76mm (D), so it fits into applications where space is at a premium.
Note
Eaton formerly known as Moeller
