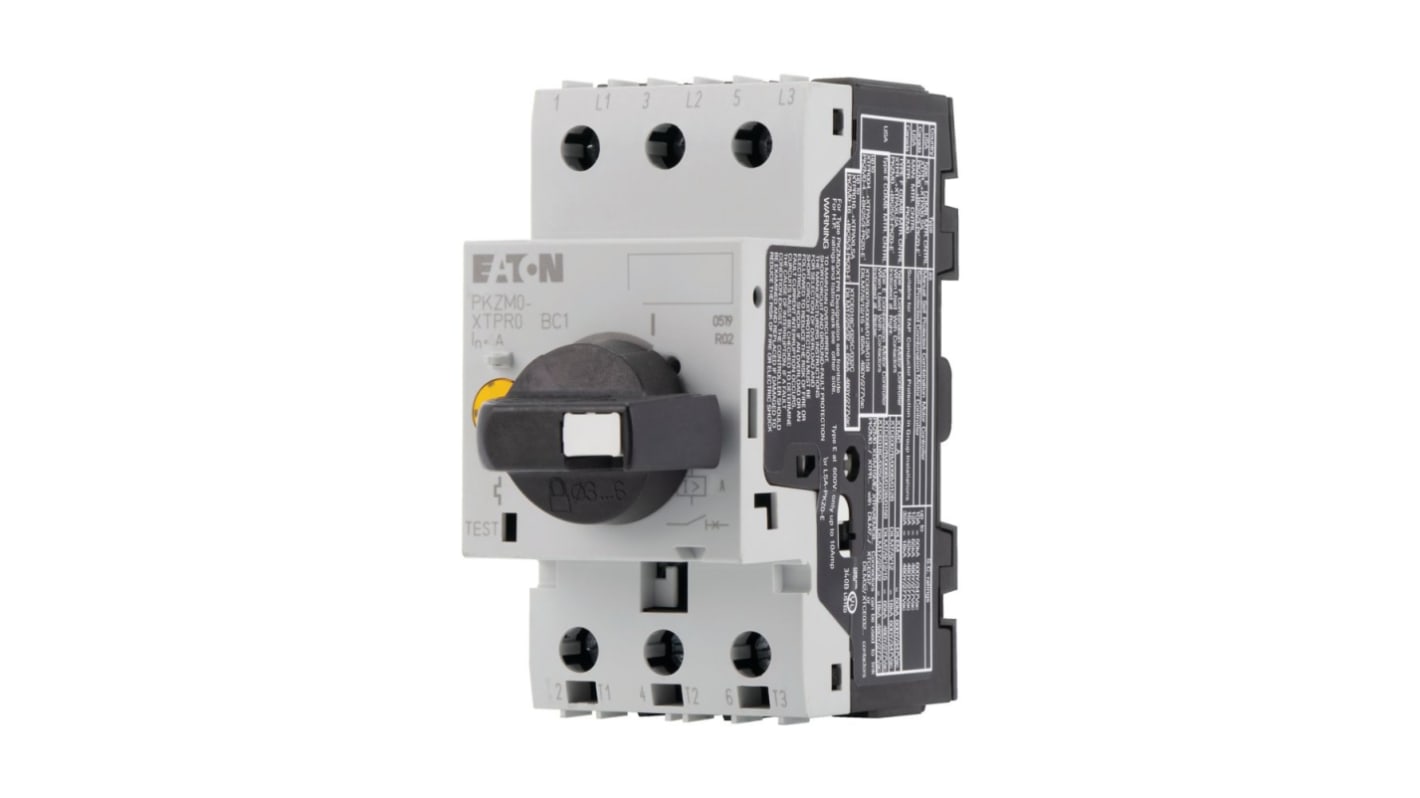

Eaton 1 → 1.6 A Motor Protection Circuit Breaker, 690 V ac
- RS Stock No.:
- 866-1537
- Mfr. Part No.:
- 265336 PKZM0-1,6/AK
- Brand:
- Eaton
Subtotal (1 unit)*
£118.39
(exc. VAT)
£142.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £118.39 |
*price indicative
- RS Stock No.:
- 866-1537
- Mfr. Part No.:
- 265336 PKZM0-1,6/AK
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 1 → 1.6 A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V ac | |
| Overall Length | 45mm | |
| Overall Width | 93mm | |
| Overall Depth | 94mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 1 → 1.6 A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V ac | ||
Overall Length 45mm | ||
Overall Width 93mm | ||
Overall Depth 94mm | ||
Eaton PKZM0 Series Motor Protection Circuit Breaker, 1 to 1.6A, 690V AC Supply Voltage - 265336 PKZM0-1,6/AK
This motor protection circuit breaker is designed to protect electric motors from overloads and phase failures. It optimises operational efficiency and enhances the longevity of electrical systems, ensuring safety and dependability in industrial and commercial settings.
Features & Benefits
• Integrates phase-failure sensitivity for improved safety
• High breaking capacity of 150kA
• Compact design facilitates easy installation on standard rails
• Includes a padlock mechanism for added security during maintenance
• Operates optimally within a temperature range of -25 to 40°C
• Suitable for motors classified with efficiency class IE3
• High breaking capacity of 150kA
• Compact design facilitates easy installation on standard rails
• Includes a padlock mechanism for added security during maintenance
• Operates optimally within a temperature range of -25 to 40°C
• Suitable for motors classified with efficiency class IE3
Applications
• Protects three-phase motor systems
• Suitable for automation and control in manufacturing environments
• Used in various electrical distribution systems
• Provides reliable overload protection in diverse applications
• Compatible with terminal installations for enhanced flexibility
• Suitable for automation and control in manufacturing environments
• Used in various electrical distribution systems
• Provides reliable overload protection in diverse applications
• Compatible with terminal installations for enhanced flexibility
What is the recommended mounting method for this device?
It can be easily snapped onto IEC/EN 60715 top-hat rails.
What environmental conditions can it operate in?
It operates effectively between -25°C and 40°C ambient temperatures.
Is it possible to connect different types of cables?
Yes, it accommodates flexible cables with ferrules and solid cables.
How it can be ensure proper electrical connection?
Use the specified tightening torque of 1.7Nm for the main cables.
What maintenance steps are advisable to prolong lifespan?
Regular inspections for signs of wear and ensuring secure connections are recommended.
Note
Eaton formerly known as Moeller
