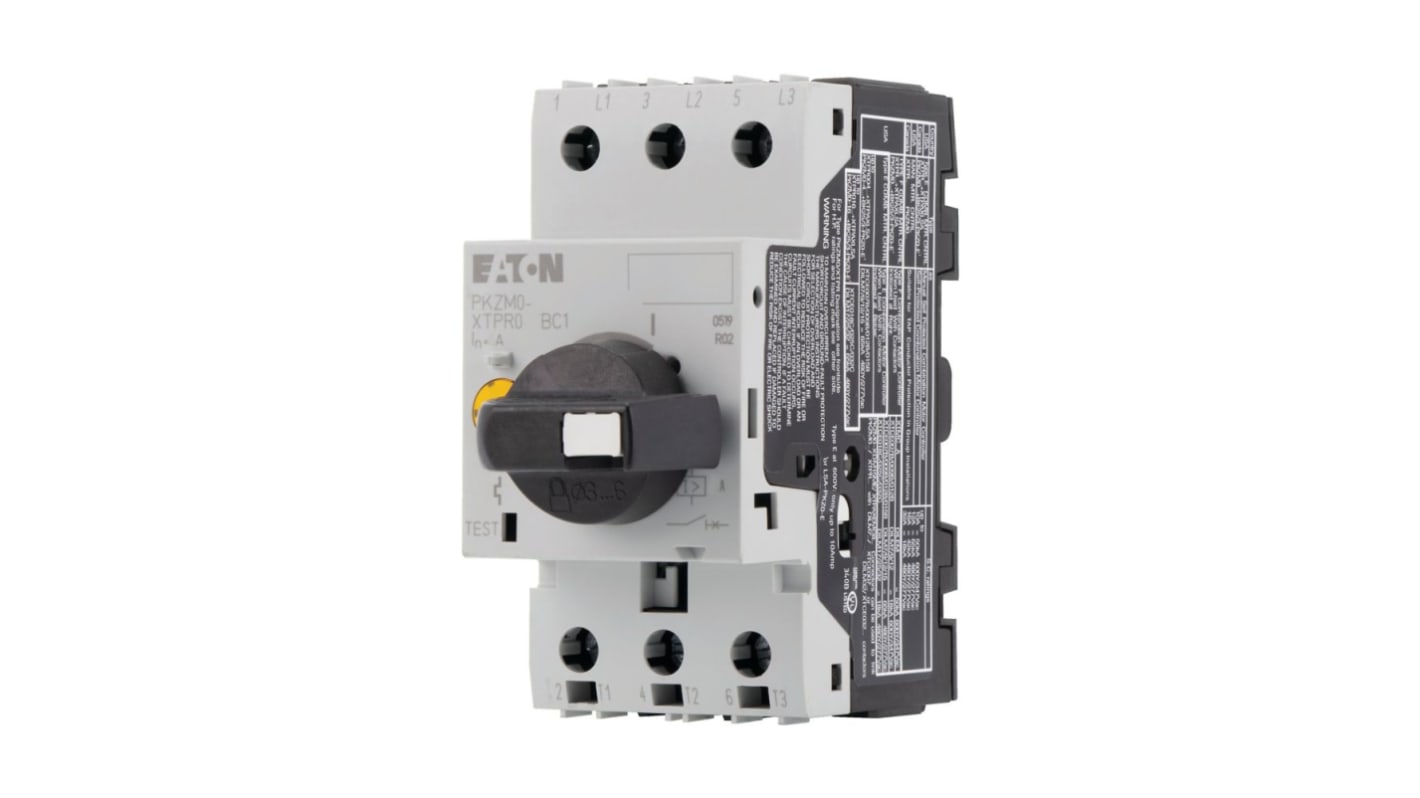

Eaton 8 → 12 A Motor Protection Circuit Breaker, 690 V ac
- RS Stock No.:
- 866-1319
- Mfr. Part No.:
- 156397 PKZM0-12/AK
- Brand:
- Eaton
Subtotal (1 unit)*
£134.97
(exc. VAT)
£161.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 8 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.97 |
*price indicative
- RS Stock No.:
- 866-1319
- Mfr. Part No.:
- 156397 PKZM0-12/AK
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 8 → 12 A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V ac | |
| Overall Length | 45mm | |
| Overall Width | 93mm | |
| Overall Depth | 94mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 8 → 12 A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V ac | ||
Overall Length 45mm | ||
Overall Width 93mm | ||
Overall Depth 94mm | ||
- COO (Country of Origin):
- DE
Eaton PKZM0 Series Motor Protection Circuit Breaker, 8 to 12A, 690V AC Supply Voltage - 156397 PKZM0-12/AK
This motor protection circuit breaker is designed to protect electric motors from overload and short-circuit conditions, ensuring reliable operation and mitigating potential equipment damage. Combining functionality and durability, this circuit breaker is essential for industrial applications, providing users with assurance in various environments.
Features & Benefits
• Effective overcurrent protection for motor applications
• Compact design optimises space in electrical panels
• High breaking capacity of 50 kA ensures safety
• Phase-failure sensitivity helps prevent motor damage
• Lockable thumb grip for secure operation
• Suitable for high operational frequencies in industrial settings
• Compact design optimises space in electrical panels
• High breaking capacity of 50 kA ensures safety
• Phase-failure sensitivity helps prevent motor damage
• Lockable thumb grip for secure operation
• Suitable for high operational frequencies in industrial settings
Applications
• Motor protection in industrial automation systems
• Control of three-phase motors in manufacturing
• Circuit protection for essential equipment
• Utilised in HVAC systems requiring motor control protection
• Control of three-phase motors in manufacturing
• Circuit protection for essential equipment
• Utilised in HVAC systems requiring motor control protection
What current rating is suitable for my application?
The device supports a current rating of 8-12 A for optimal motor protection.
How can it be install this safely?
For safe operation, follow the installation manual and ensure correct terminal connections and mounting.
Is it compatible with high-efficiency motors?
Yes, it is suitable for motors meeting efficiency class IE3, ensuring protection during operation.
What are the ambient temperature limits for this device?
It operates within a temperature range of -25 to 55 °C, accommodating diverse environmental conditions.
How can it be ensure the longevity of the circuit breaker?
Regular inspections and maintaining correct operational parameters can significantly extend its lifespan.
Note
Eaton formerly known as Moeller
Eaton XT Series
