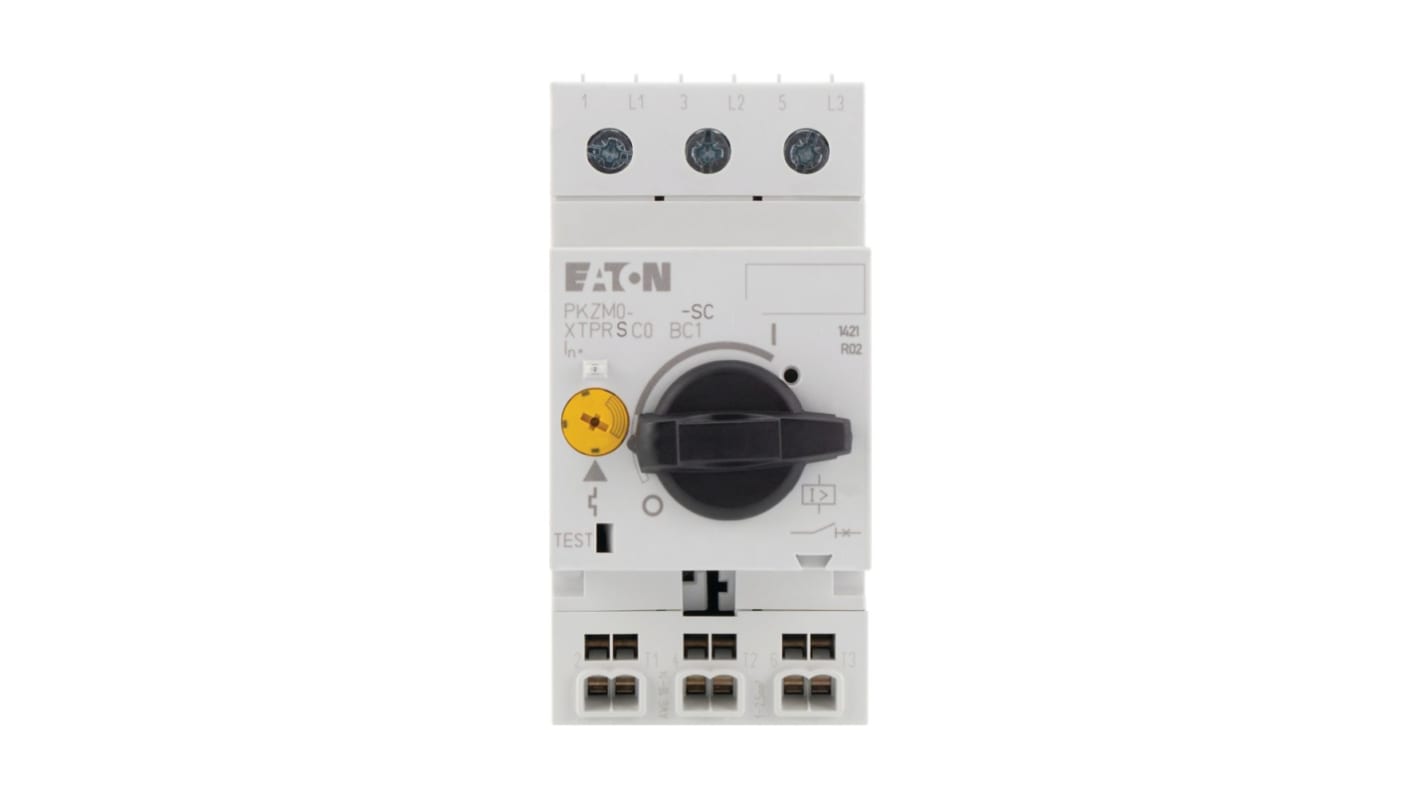

Eaton 1A, 1.6 A PKZM 0 Motor Protection Circuit Breaker, 690V, 55 °C, -25 °C
- RS Stock No.:
- 229-9471
- Mfr. Part No.:
- 229833 PKZM0-1,6-SC
- Brand:
- Eaton
Subtotal (1 unit)*
£99.90
(exc. VAT)
£119.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £99.90 |
*price indicative
- RS Stock No.:
- 229-9471
- Mfr. Part No.:
- 229833 PKZM0-1,6-SC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Motor Protection Circuit Breaker | |
| Current Rating | 1, 1.6A | |
| Motor Protection Component | Motor Controller | |
| Supply Voltage | 690V | |
| Motor Protection System | IE3 Efficiency Class Motor | |
| Series | PKZM 0 | |
| Sensing Type | Thermomagnetic | |
| Overall Length | 92.4mm | |
| Overall Width | 45mm | |
| Overall Depth | 76mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE marking, CSA - C22.2 No. 60947-4-1-14, IEC/EN 60947-4-1, UL 60947-4-1 | |
| Number of Poles | 3 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Motor Protection Circuit Breaker | ||
Current Rating 1, 1.6A | ||
Motor Protection Component Motor Controller | ||
Supply Voltage 690V | ||
Motor Protection System IE3 Efficiency Class Motor | ||
Series PKZM 0 | ||
Sensing Type Thermomagnetic | ||
Overall Length 92.4mm | ||
Overall Width 45mm | ||
Overall Depth 76mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE marking, CSA - C22.2 No. 60947-4-1-14, IEC/EN 60947-4-1, UL 60947-4-1 | ||
Number of Poles 3 | ||
Eaton PKZM0 Series Motor Protection Circuit Breaker, 1 to 1.6A, 690V Supply Voltage - 229833 PKZM0-1,6-SC
This motor protection circuit breaker ensures the safe and efficient operation of electrical motors by safeguarding against overloads and phase failures. Its robust construction is essential in industrial environments, providing effective protection for motors up to 690V while complying with IE3 efficiency class standards.
Features & Benefits
• Offers a breaking capacity of 150kA for enhanced protection
• Equipped with screw and spring cage terminals for flexible connections
• Phase-failure sensitivity improves operational reliability
• Supports efficient operation with IE3 efficiency class motors
• Compact design facilitates easy installation in confined spaces
• Suitable for applications requiring high-performance motor control
Applications
• Utilised with industrial motors for consistent performance
• Ideal for settings requiring high breaking capacities
• Appropriate for automation and process control systems
• Effectively manages motor operations in electrical networks
What is the maximum voltage the device can handle?
It operates at a maximum voltage of 690V, suitable for high-voltage applications.
How does it protect against overloads?
It features an overload release that detects current surges beyond the rated operational current, ensuring safe functioning.
Is it compatible with various motor types?
Yes, it is compatible with motors across different efficiency classes, including IE3.
What types of terminals does it use for connections?
It employs screw and spring cage terminals, offering flexibility in wiring configurations.
How can it be install it?
The circuit breaker can be mounted onto an IEC/EN 60715 top-hat rail, simplifying installation within a control panel or electrical enclosure.
Note
Replacement part code: PKZM0-1,6-SPI16 / Eaton formerly known as Moeller
