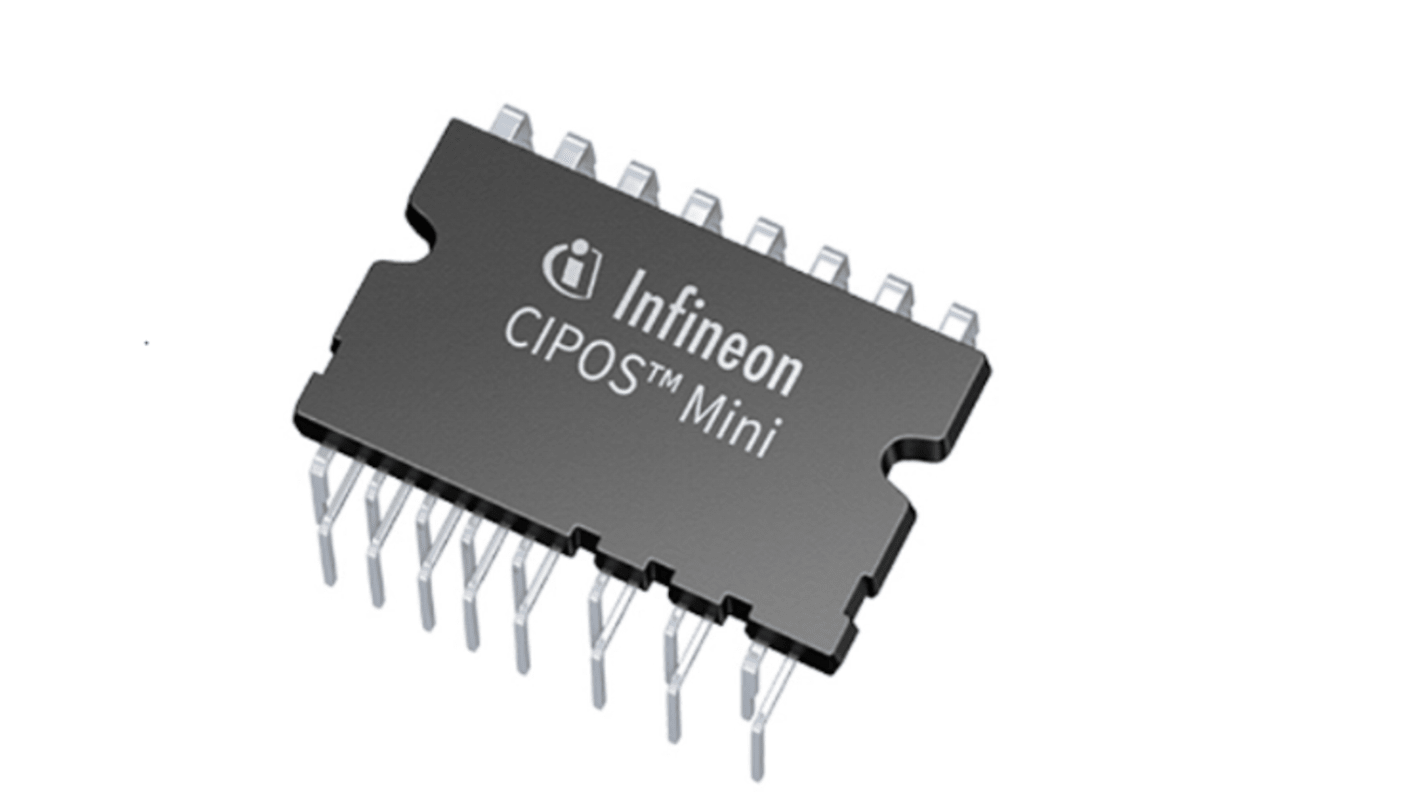

Infineon IGCM20F60GAXKMA1, Permanent Magnet, AC Motor Motor Driver IC, 600 V 24-Pin, DIP

View all Motor Driver ICs
Bulk discount available

Subtotal (1 unit)*

£9.95

(exc. VAT)

£11.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 69 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£9.95
10 - 24£9.44
25 - 49£9.05
50 - 99£8.65
100 +£8.06

*price indicative

Packaging Options:
RS Stock No.:
226-6071
Mfr. Part No.:
IGCM20F60GAXKMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Motor Type

Permanent Magnet, AC Motor

Product Type

Motor Driver IC

Configuration

3 Phase

Maximum Collector Emitter Voltage Vceo

600V

Mount Type

Through Hole

Package Type

DIP

Output Current

20A

Pin Count

24

Minimum Supply Voltage

14V

Maximum Supply Voltage

18.5V

Typical Switching Frequency

10kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Standards/Approvals

No

Length

36mm

Series

IGCM20F60G

Height

3.1mm

Inverter Power Rating

1600W

Automotive Standard

AEC-Q101

Supply Current

900μA

The Infineon CIPOS module family offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motor and permanent magnet motor in variable speed drives for applications like a refrigerator and a dish washer. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also EMI-save control and overload protection.

Reverse conducting IGBTs with monolithic body diode

Rugged SOI gate driver technology with stability against transient and negative voltage

Over current shutdown

Temperature monitor

Under-voltage lockout at all channels
