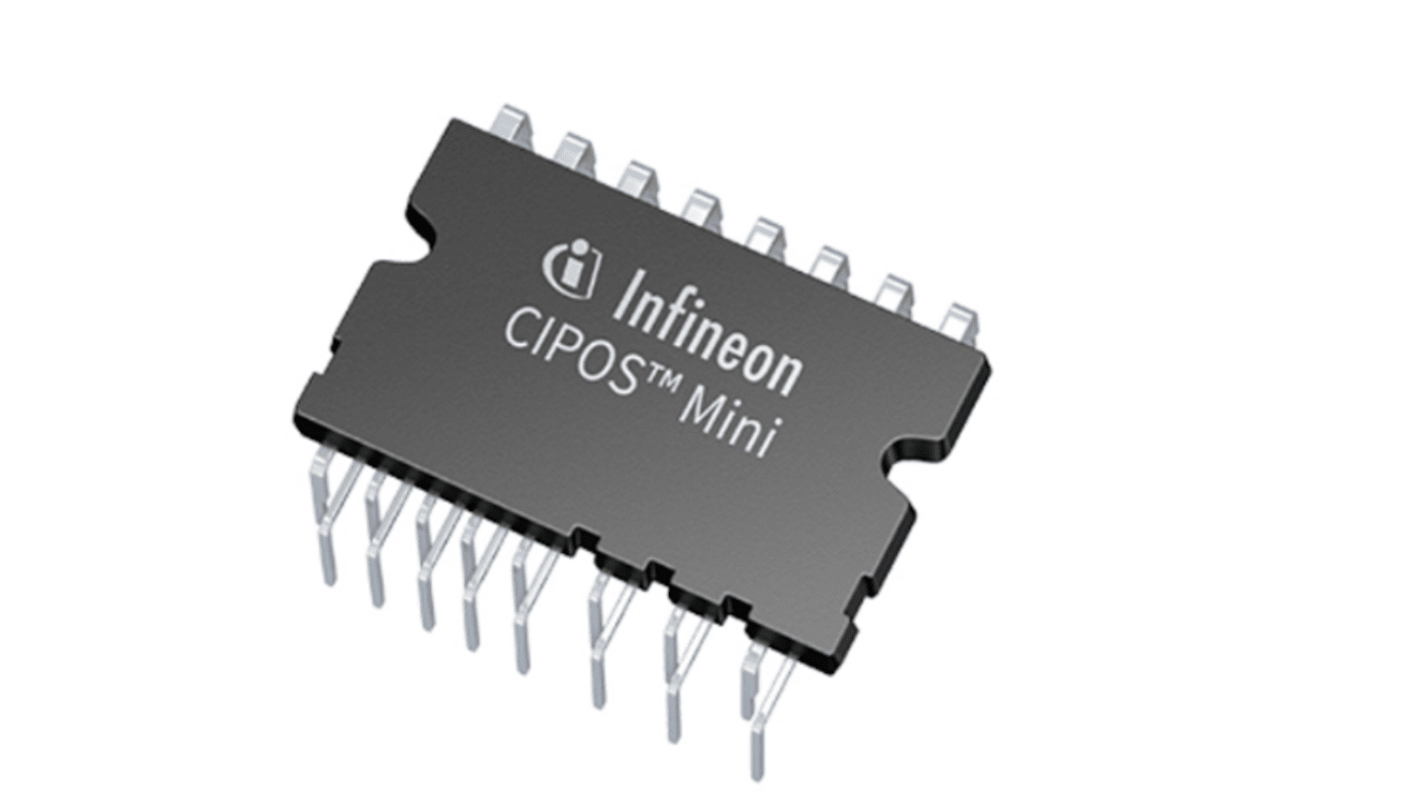

Infineon IGCM06F60GAXKMA1, Permanent Magnet, AC Motor CIPOSTM Control Integrated Power System, 600 V 4 A 24-Pin, DIP

View all Motor Driver ICs
Bulk discount available

Subtotal (1 unit)*

£6.38

(exc. VAT)

£7.66

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 66 unit(s), ready to ship

Units
Per unit
1 - 4£6.38
5 - 9£6.06
10 - 24£5.81
25 - 49£5.55
50 +£5.17

*price indicative

Packaging Options:
RS Stock No.:
226-6065
Mfr. Part No.:
IGCM06F60GAXKMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Motor Type

Permanent Magnet, AC Motor

Product Type

CIPOSTM Control Integrated Power System

Configuration

3 Phase

Maximum IGBT Collector Current

4A

Maximum Collector Emitter Voltage Vceo

600V

Mount Type

Through Hole

Package Type

DIP

Output Current

15A

Pin Count

24

Maximum Supply Voltage

18.5V

Minimum Supply Voltage

14V

Minimum Operating Temperature

-40°C

Typical Switching Frequency

20kHz

Maximum Operating Temperature

125°C

Standards/Approvals

No

Series

IGCM06F60

Length

33.11mm

Height

3.1mm

Inverter Power Rating

800W

Automotive Standard

AEC-Q101

The Infineon CIPOS module family offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motor and permanent magnet motor in variable speed drives for applications like a refrigerator and a dish washer. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also EMI-save control and overload protection.

Reverse conducting IGBTs with monolithic body diode

Rugged SOI gate driver technology with stability against transient and negative voltage

Over current shutdown

Temperature monitor

Under-voltage lockout at all channels
