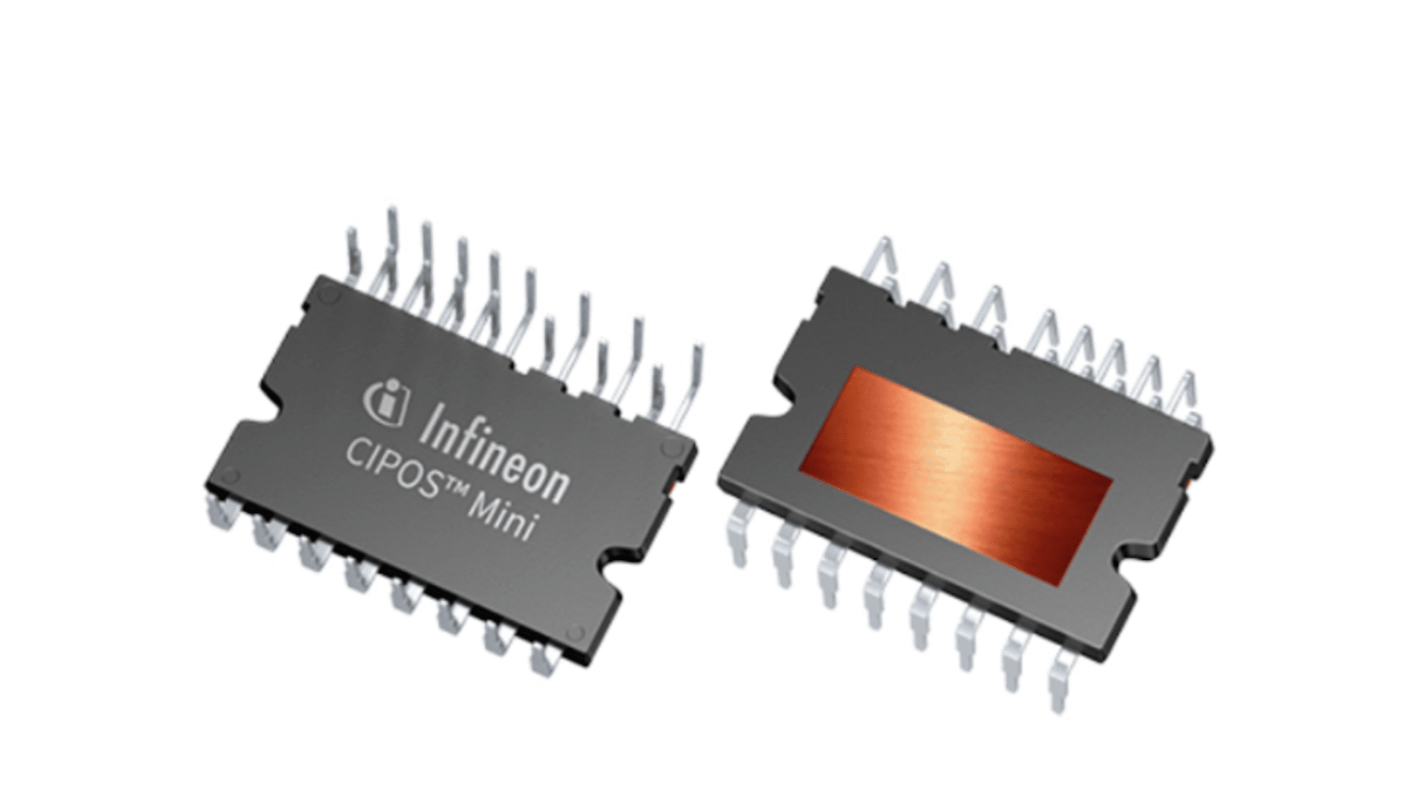

Infineon IKCM15L60GDXKMA1, Permanent Magnet, AC Motor Intelligent Power Module, 600 V 30 A 24-Pin, DIP
- RS Stock No.:
- 226-6086
- Mfr. Part No.:
- IKCM15L60GDXKMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£11.39
(exc. VAT)
£13.67
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 67 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.39 |
| 5 - 9 | £10.82 |
| 10 - 24 | £10.37 |
| 25 - 49 | £9.91 |
| 50 + | £9.27 |
*price indicative
- RS Stock No.:
- 226-6086
- Mfr. Part No.:
- IKCM15L60GDXKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Intelligent Power Module | |
| Motor Type | Permanent Magnet, AC Motor | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 30A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Output Current | 15A | |
| Pin Count | 24 | |
| Minimum Supply Voltage | 14.5V | |
| Maximum Supply Voltage | 18.5V | |
| Typical Switching Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 36mm | |
| Series | IKCM15L60GD | |
| Standards/Approvals | No | |
| Width | 21mm | |
| Height | 3.1mm | |
| Inverter Power Rating | 2200W | |
| Supply Current | 900μA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Intelligent Power Module | ||
Motor Type Permanent Magnet, AC Motor | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 30A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Output Current 15A | ||
Pin Count 24 | ||
Minimum Supply Voltage 14.5V | ||
Maximum Supply Voltage 18.5V | ||
Typical Switching Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 36mm | ||
Series IKCM15L60GD | ||
Standards/Approvals No | ||
Width 21mm | ||
Height 3.1mm | ||
Inverter Power Rating 2200W | ||
Supply Current 900μA | ||
Automotive Standard AEC-Q101 | ||
Infineon IKCM15L60GD Series Intelligent Power Module, 2200W Inverter Power Rating, 15A Output Current - IKCM15L60GDXKMA1
This intelligent power module provides a Compact drive solution for three-phase permanent magnet and AC motors in automotive and industrial contexts. It integrates high-voltage IGBT switching and control functions to support inverter applications up to 2200 W, operating from typical automotive supply ranges and designed for through-hole mounting on power assemblies.
Features and Benefits:
• 600 V Vceo rating enables high-voltage inverter operation
• 15 A continuous output current supports moderate-power drives
• 20 kHz switching frequency suits PM motor control requirements
• 900 μA supply current minimises quiescent power draw
• 30 A maximum IGBT collector current permits transient handling
• 15 A continuous output current supports moderate-power drives
• 20 kHz switching frequency suits PM motor control requirements
• 900 μA supply current minimises quiescent power draw
• 30 A maximum IGBT collector current permits transient handling
Applications
• Suitable for 2200 W inverter-driven motor systems
• Ideal for permanent magnet motor drive modules
• Used with automotive powertrains requiring AEC‑Q101 standardisation
• Can be used for three-phase industrial motor controllers
• Ideal for permanent magnet motor drive modules
• Used with automotive powertrains requiring AEC‑Q101 standardisation
• Can be used for three-phase industrial motor controllers
What supply voltage range does it accept?
It accepts a minimum of 14.5 V and a maximum of 18.5 V, suitable for typical vehicle electrical systems.
How does it handle temperature extremes in operation?
It is rated to operate from −40 °C up to 125 °C to accommodate wide thermal conditions.
What mounting style is required for integration?
The device is supplied in a through-hole DIP package for PCB insertion and soldering.
What package pin count and configuration are provided?
It uses a 24-pin arrangement configured for three-phase control integration.
What inverter power capability can be achieved with this module?
It supports inverter power ratings up to 2200 W for suitable motor and system pairings.
