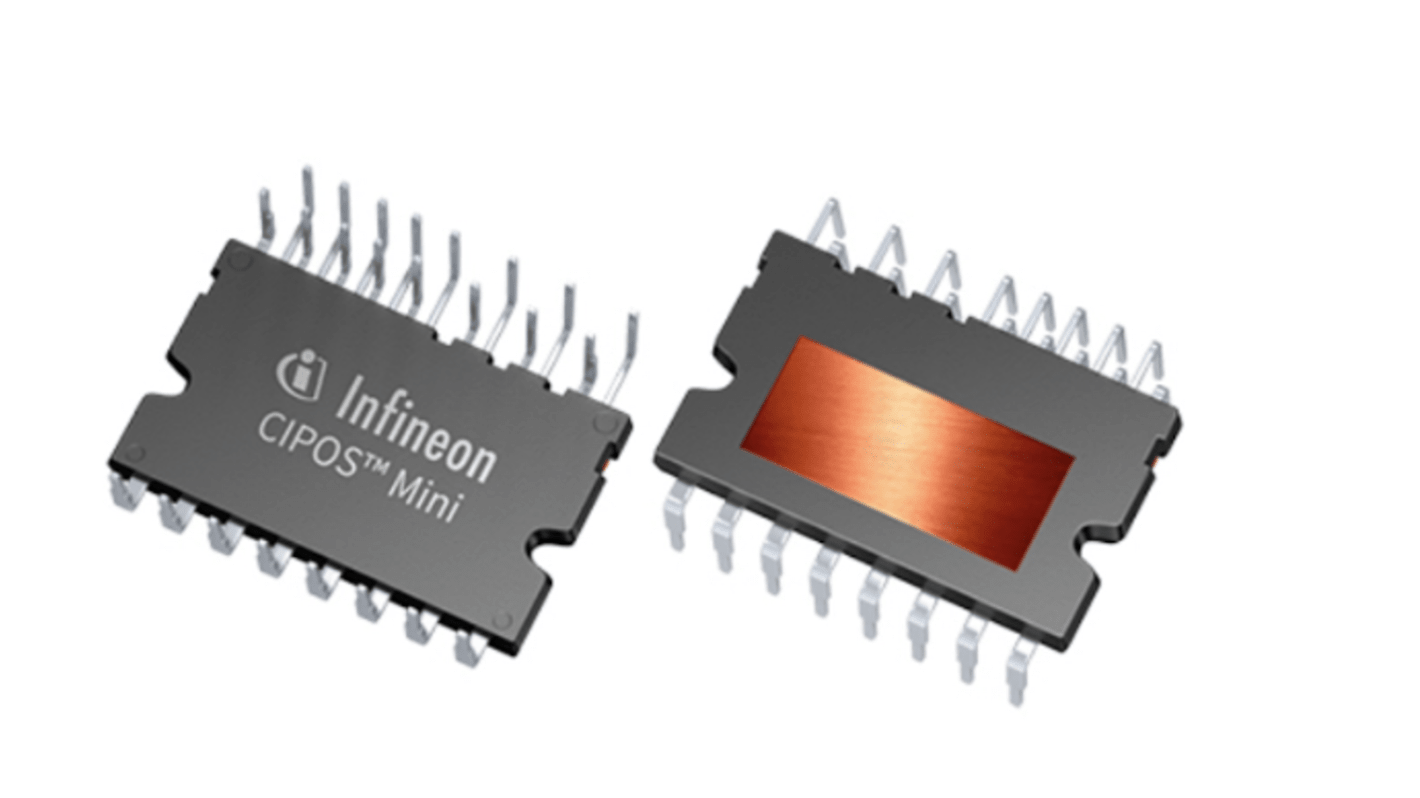

Infineon, AC Motor, Permanent Magnet Motor Driver IC, 600 V 24-Pin, DIP
- RS Stock No.:
- 226-6060
- Mfr. Part No.:
- IFCM15P60GDXKMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 14 units)*
£124.684
(exc. VAT)
£149.618
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 182 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 14 - 14 | £8.906 | £124.68 |
| 28 - 56 | £8.796 | £123.14 |
| 70 + | £8.688 | £121.63 |
*price indicative
- RS Stock No.:
- 226-6060
- Mfr. Part No.:
- IFCM15P60GDXKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Motor Driver IC | |
| Motor Type | AC Motor, Permanent Magnet | |
| Configuration | 3 Phase | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Output Current | 15A | |
| Pin Count | 24 | |
| Minimum Supply Voltage | 14.5V | |
| Maximum Supply Voltage | 18.5V | |
| Typical Switching Frequency | 40kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 33.11mm | |
| Series | IFCM15P60GD | |
| Height | 3.1mm | |
| Standards/Approvals | No | |
| Inverter Power Rating | 49.8W | |
| Automotive Standard | AEC-Q101 | |
| Supply Current | 900μA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Motor Driver IC | ||
Motor Type AC Motor, Permanent Magnet | ||
Configuration 3 Phase | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Output Current 15A | ||
Pin Count 24 | ||
Minimum Supply Voltage 14.5V | ||
Maximum Supply Voltage 18.5V | ||
Typical Switching Frequency 40kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 33.11mm | ||
Series IFCM15P60GD | ||
Height 3.1mm | ||
Standards/Approvals No | ||
Inverter Power Rating 49.8W | ||
Automotive Standard AEC-Q101 | ||
Supply Current 900μA | ||
The Infineon CIPOS module family offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motor and permanent magnet motor with single phase PFC in variable speed drives for applications like an air conditioning and low power motor drives. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also EMI-save control and overload protection.
Rugged SOI gate driver technology with stability
against transient and negative voltage
Allowable negative VS potential up to -11V for signal transmission at VBS=15V
Integrated bootstrap functionality
Over current shutdown
Temperature monitor
Under-voltage lockout at all channels
