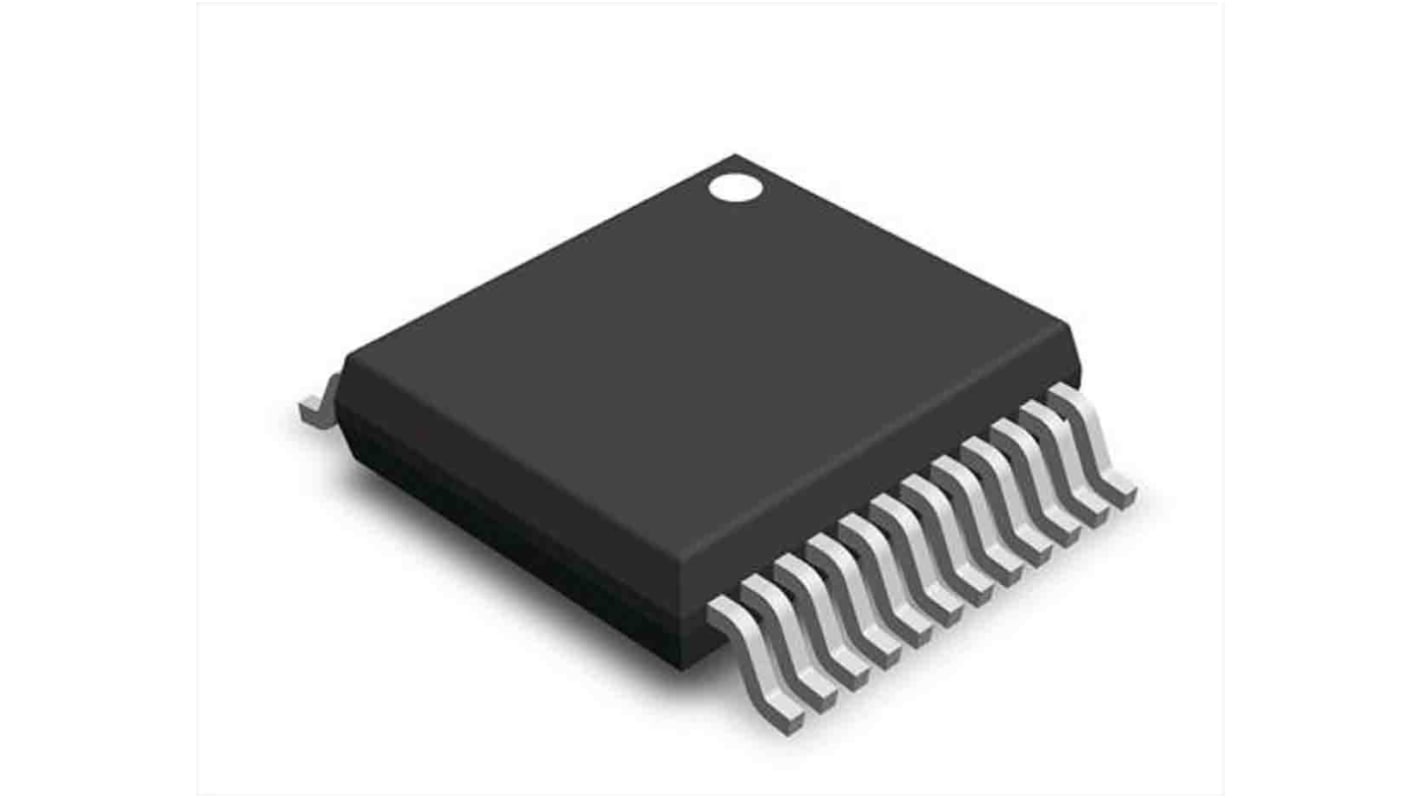

onsemi, DC Motor DC Motor Driver, 45 V 1.1 A 24-Pin, SSOP
- RS Stock No.:
- 202-7281
- Mfr. Part No.:
- NCV7723DQBR2G
- Brand:
- onsemi
Subtotal (1 reel of 2500 units)*
£3,020.00
(exc. VAT)
£3,625.00
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 2,500 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.208 | £3,020.00 |
*price indicative
- RS Stock No.:
- 202-7281
- Mfr. Part No.:
- NCV7723DQBR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | DC Motor | |
| Product Type | DC Motor Driver | |
| Configuration | Half Bridge | |
| Maximum IGBT Collector Current | 1.1A | |
| Maximum Collector Emitter Voltage Vceo | 45V | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Output Current | 1.1A | |
| Pin Count | 24 | |
| Minimum Supply Voltage | 3.15V | |
| Maximum Supply Voltage | 45V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 3.9mm | |
| Length | 8.64mm | |
| Series | NCV7723 | |
| Standards/Approvals | No | |
| Height | 1.7mm | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type DC Motor | ||
Product Type DC Motor Driver | ||
Configuration Half Bridge | ||
Maximum IGBT Collector Current 1.1A | ||
Maximum Collector Emitter Voltage Vceo 45V | ||
Mount Type Surface | ||
Package Type SSOP | ||
Output Current 1.1A | ||
Pin Count 24 | ||
Minimum Supply Voltage 3.15V | ||
Maximum Supply Voltage 45V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 3.9mm | ||
Length 8.64mm | ||
Series NCV7723 | ||
Standards/Approvals No | ||
Height 1.7mm | ||
Automotive Standard AEC-Q100 | ||
Supply Current 3mA | ||
The ON Semiconductor NCV7723B is a six channel half-bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states.
Low quiescent Current sleep mode
Integrated freewheeling protection (LS and HS)
16 Bit frame error detection
