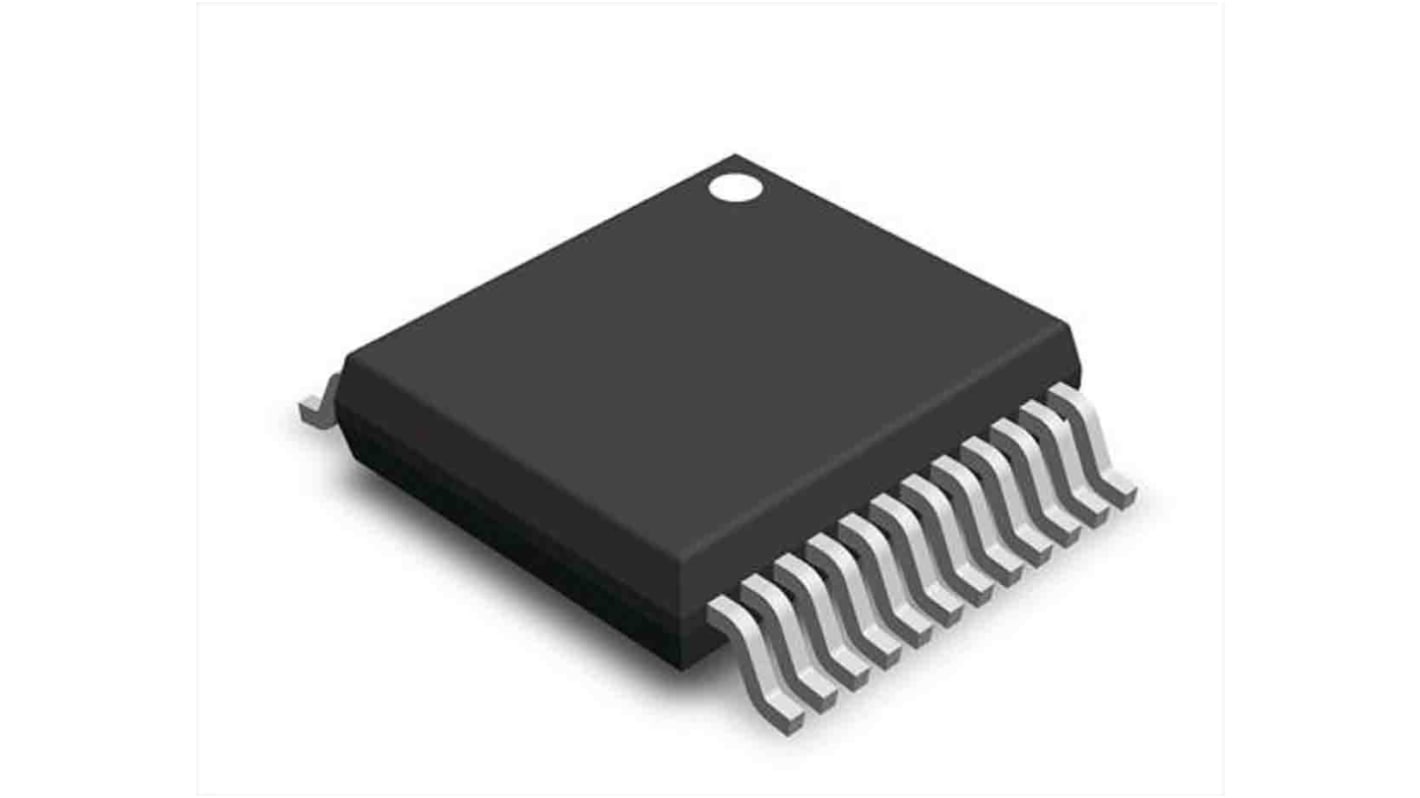

onsemi NCV7725DQBR2G, DC DC Motor Driver, 45 V 1.1A 24-Pin, SSOP
- RS Stock No.:
- 202-7283
- Mfr. Part No.:
- NCV7725DQBR2G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 202-7283
- Mfr. Part No.:
- NCV7725DQBR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | DC | |
| Configuration | Half Bridge | |
| Maximum IGBT Collector Current | 1.1A | |
| Maximum Output Current | 1.1A | |
| Maximum Supply Voltage | 45 V | |
| Maximum Collector Emitter Voltage | 45 V | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 24 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type DC | ||
Configuration Half Bridge | ||
Maximum IGBT Collector Current 1.1A | ||
Maximum Output Current 1.1A | ||
Maximum Supply Voltage 45 V | ||
Maximum Collector Emitter Voltage 45 V | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 24 | ||
The ON Semiconductor NCV7725B is a ten channel half-bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states.
Low quiescent Current sleep mode
Integrated freewheeling protection (LS and HS)
16 Bit frame error detection
Integrated freewheeling protection (LS and HS)
16 Bit frame error detection
