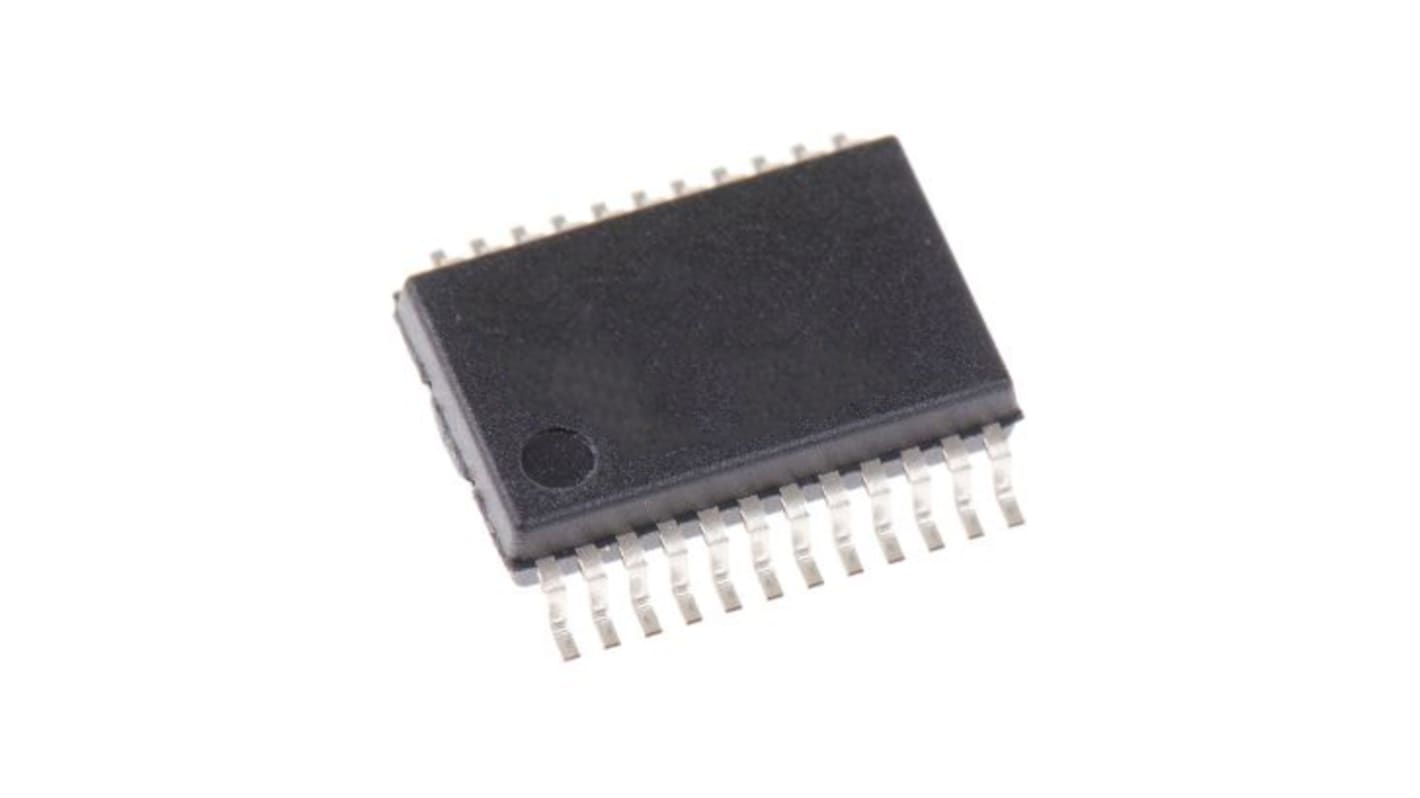

onsemi NCV7750DPR2G, Stepper Motor Driver IC 24-Pin, SSOP
- RS Stock No.:
- 189-0248
- Mfr. Part No.:
- NCV7750DPR2G
- Brand:
- onsemi
Subtotal (1 reel of 2500 units)*
£2,415.00
(exc. VAT)
£2,897.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.966 | £2,415.00 |
*price indicative
- RS Stock No.:
- 189-0248
- Mfr. Part No.:
- NCV7750DPR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | Stepper | |
| Maximum Output Current | 1.3A | |
| Maximum Supply Voltage | 5.5 V | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 24 | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Supply Voltage | -0.3 V | |
| Typical Switching Frequency | 5 (Maximum)MHz | |
| Minimum Operating Temperature | -40 °C | |
| Product Height | 1.5mm | |
| Width | 3.9mm | |
| Height | 1.5mm | |
| Maximum Operating Temperature | +150 °C | |
| Product Width | 3.9mm | |
| Dimensions | 8.65 x 3.9 x 1.5mm | |
| Product Length | 8.65mm | |
| Length | 8.65mm | |
| Automotive Standard | AEC-Q100 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type Stepper | ||
Maximum Output Current 1.3A | ||
Maximum Supply Voltage 5.5 V | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 24 | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Supply Voltage -0.3 V | ||
Typical Switching Frequency 5 (Maximum)MHz | ||
Minimum Operating Temperature -40 °C | ||
Product Height 1.5mm | ||
Width 3.9mm | ||
Height 1.5mm | ||
Maximum Operating Temperature +150 °C | ||
Product Width 3.9mm | ||
Dimensions 8.65 x 3.9 x 1.5mm | ||
Product Length 8.65mm | ||
Length 8.65mm | ||
Automotive Standard AEC-Q100 | ||
Power Up without Open Circuit Detection
Low Quiescent Current
16 bit SPI control
Limp Home Functionality
3.3V and 5V compatible Digital Input Supply Range
Fault Reporting of Open Load, Over Load, and Over Temperature
Power On Reset
Uniform output structure of all outputs on one side of the package.
4 Channels
600 mA Low-Side Drivers
Parallel Input Pins
Allows for power up without LED load illumination.
Able to report errors and is capable of daisy chain connections.
Automotive system feature allowing the vehicle to maintain operation with a defective micro processor.
Suitable for both 3.3V and 5V micro processor interfaces.
The micro processor and report unusual activity for troubleshooting and system integrity purposes.
Maintains a smooth system power up and power down.
Simplifies printed circuit board layouts.
Automotive requirement maintains site and change control.
Applications
Relay Driver
LED Driver.
Stepper Motor Driver
End Products
Automotive Body Control Unit
Automotive Engine Control Unit
Low Quiescent Current
16 bit SPI control
Limp Home Functionality
3.3V and 5V compatible Digital Input Supply Range
Fault Reporting of Open Load, Over Load, and Over Temperature
Power On Reset
Uniform output structure of all outputs on one side of the package.
4 Channels
600 mA Low-Side Drivers
Parallel Input Pins
Allows for power up without LED load illumination.
Able to report errors and is capable of daisy chain connections.
Automotive system feature allowing the vehicle to maintain operation with a defective micro processor.
Suitable for both 3.3V and 5V micro processor interfaces.
The micro processor and report unusual activity for troubleshooting and system integrity purposes.
Maintains a smooth system power up and power down.
Simplifies printed circuit board layouts.
Automotive requirement maintains site and change control.
Applications
Relay Driver
LED Driver.
Stepper Motor Driver
End Products
Automotive Body Control Unit
Automotive Engine Control Unit
