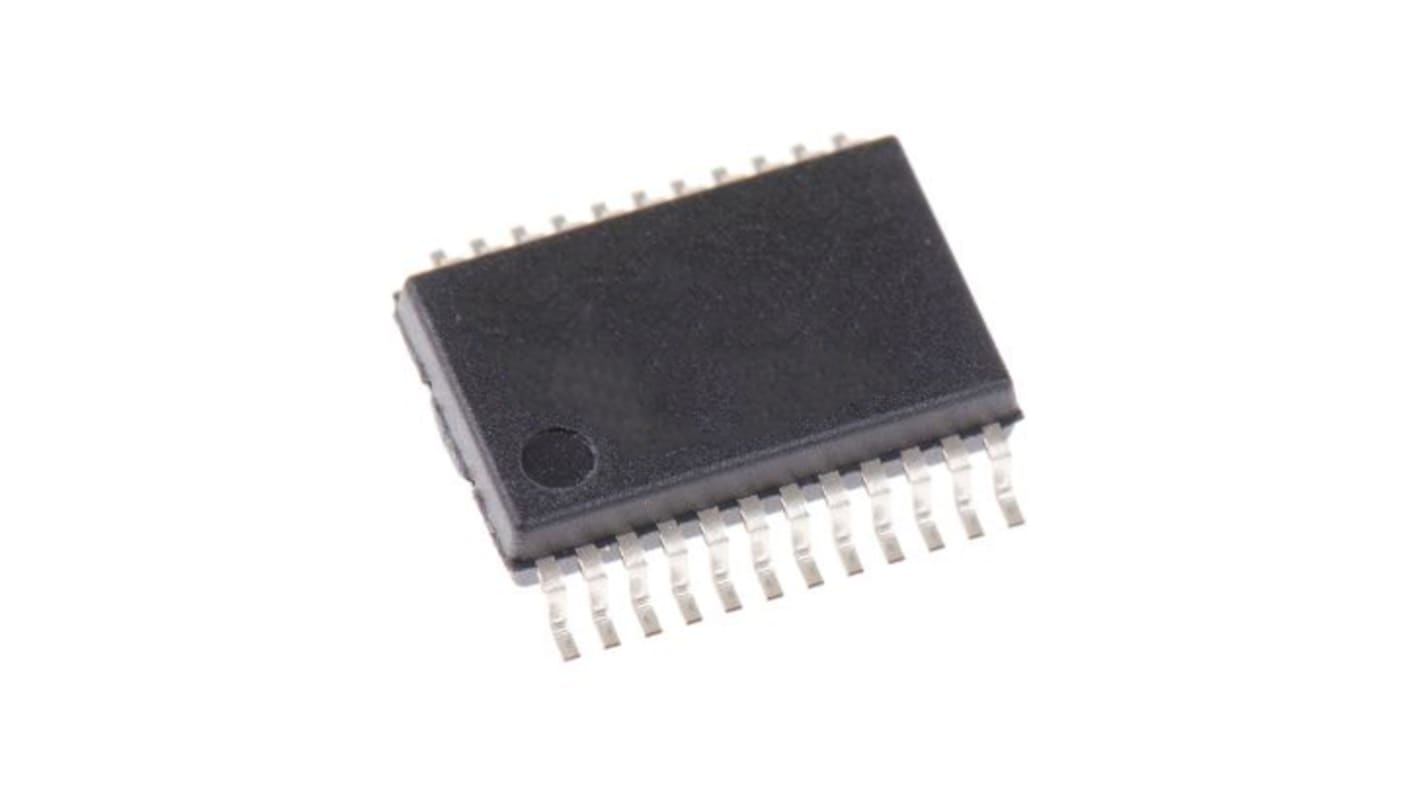

onsemi NCV7726DQBR2G, DC Motor Driver IC 24-Pin, SSOP
- RS Stock No.:
- 189-0492
- Mfr. Part No.:
- NCV7726DQBR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.57
(exc. VAT)
£7.884
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 2,500 left, ready to ship
- Final 2,500 unit(s) shipping from 11 March 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £3.285 | £6.57 |
| 20 - 198 | £2.83 | £5.66 |
| 200 - 998 | £2.455 | £4.91 |
| 1000 + | £2.16 | £4.32 |
*price indicative
- RS Stock No.:
- 189-0492
- Mfr. Part No.:
- NCV7726DQBR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | DC | |
| Output Configuration | Half Bridge | |
| Maximum Output Current | 500mA | |
| Maximum Supply Voltage | 5.25 V | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Pin Count | 24 | |
| Minimum Operating Supply Voltage | 3.15 V | |
| Typical Switching Frequency | 5 (Maximum)MHz | |
| Automotive Standard | AEC-Q100 | |
| Length | 8.64mm | |
| Width | 3.9mm | |
| Dimensions | 8.64 x 3.9 x 1.65mm | |
| Product Length | 8.64mm | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.65mm | |
| Maximum Operating Temperature | +150 °C | |
| Product Width | 3.9mm | |
| Product Height | 1.65mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type DC | ||
Output Configuration Half Bridge | ||
Maximum Output Current 500mA | ||
Maximum Supply Voltage 5.25 V | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Maximum Operating Supply Voltage 5.25 V | ||
Pin Count 24 | ||
Minimum Operating Supply Voltage 3.15 V | ||
Typical Switching Frequency 5 (Maximum)MHz | ||
Automotive Standard AEC-Q100 | ||
Length 8.64mm | ||
Width 3.9mm | ||
Dimensions 8.64 x 3.9 x 1.65mm | ||
Product Length 8.64mm | ||
Minimum Operating Temperature -40 °C | ||
Height 1.65mm | ||
Maximum Operating Temperature +150 °C | ||
Product Width 3.9mm | ||
Product Height 1.65mm | ||
The NCV7726B is a twelve channel half-bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states. The device is controlled via a 16 bit SPI interface and is daisy chain compatible.
Low Quiescent Current Sleep Mode
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.5 A Peak Current
RDS(on) = 0.85 Ω (typ.)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16-Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.5 A Peak Current
RDS(on) = 0.85 Ω (typ.)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16-Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
