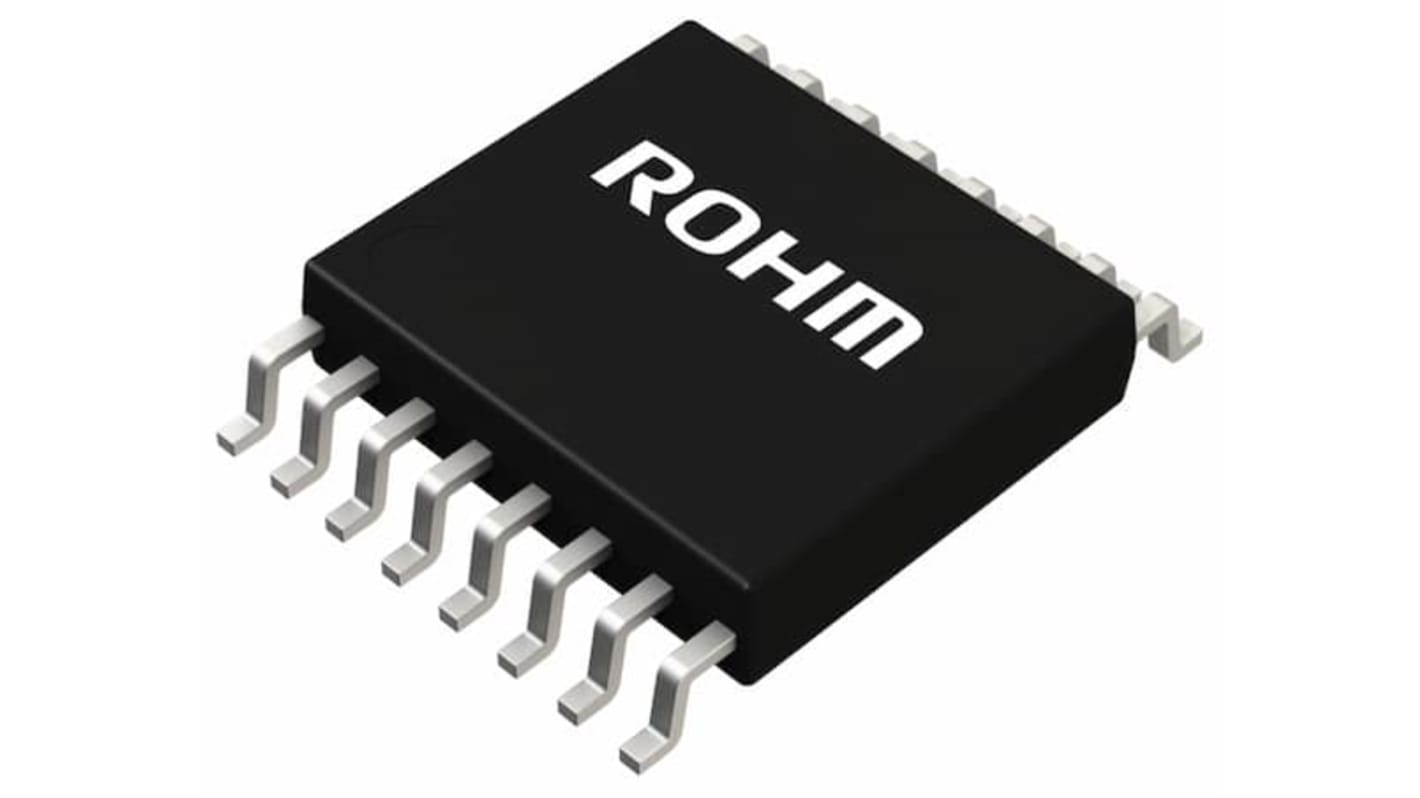

ROHM BD63242FV-E2, Brushless DC Motor Driver 16-Pin, SSOP-B16
- RS Stock No.:
- 241-2259
- Mfr. Part No.:
- BD63242FV-E2
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 241-2259
- Mfr. Part No.:
- BD63242FV-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | DC Motor Driver | |
| Motor Type | Brushless | |
| Configuration | 3 Phase | |
| Mount Type | Surface | |
| Package Type | SSOP-B16 | |
| Output Current | 1A | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 20V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | BD63242FV | |
| Height | 1.35mm | |
| Length | 6.4mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Supply Current | 6.6mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type DC Motor Driver | ||
Motor Type Brushless | ||
Configuration 3 Phase | ||
Mount Type Surface | ||
Package Type SSOP-B16 | ||
Output Current 1A | ||
Pin Count 16 | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 20V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series BD63242FV | ||
Height 1.35mm | ||
Length 6.4mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Supply Current 6.6mA | ||
ROHM BD63242FV is a 1 chip driver composed of a Power DMOSFET Motor Driver. It features a sensor less drive which does not require a hall device as a position detection sensor. Furthermore, it introduces by making output current a sine wave that achieves
Small Package
Driver Including Power DMOSFET
Sensor less Full Sine Drive
Speed Controllable by DC/PWM Input
Minimum Output Duty Setting Only on DC Voltage Input Speed Control.
Rotation Direction Select
Rotation Speed Pulse Signal Output FG
