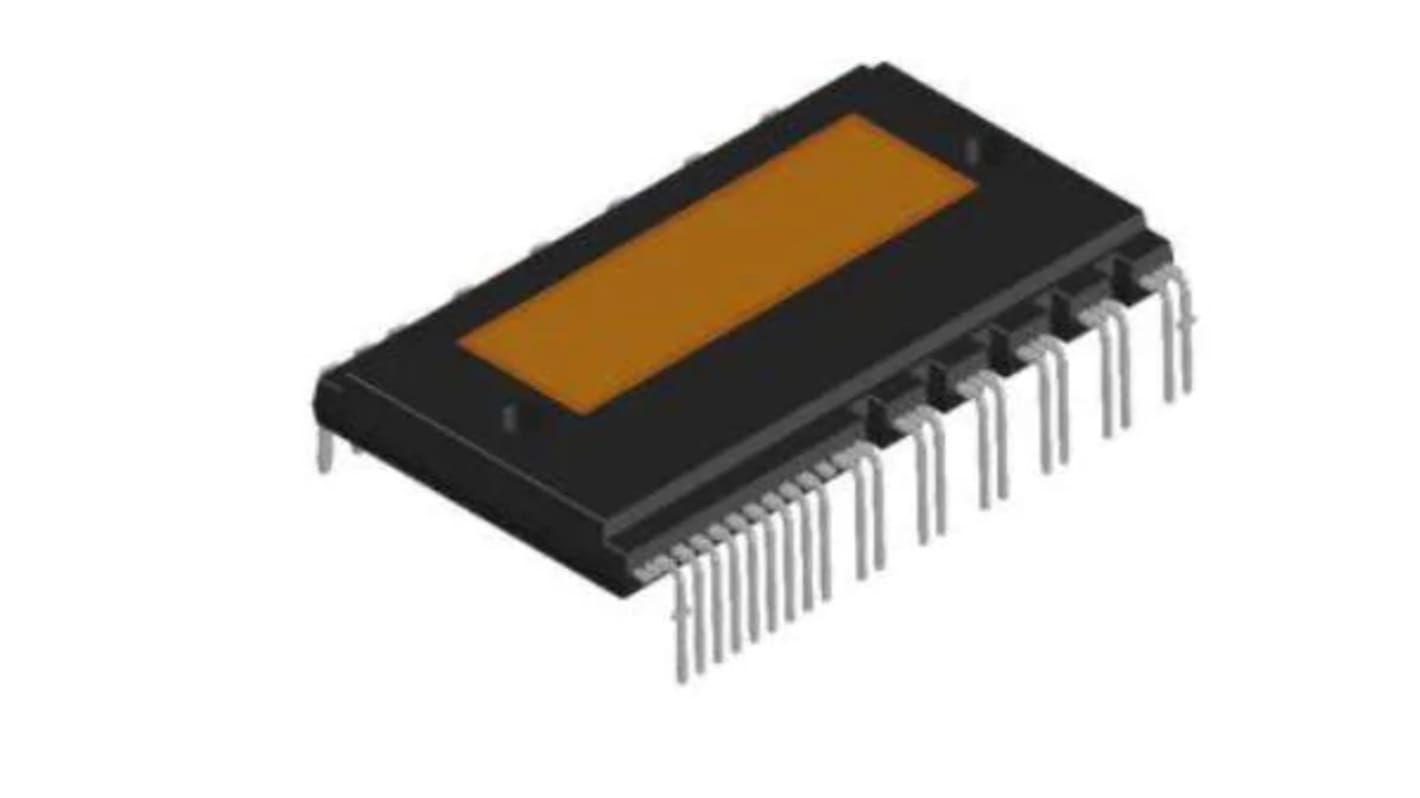

onsemi NFAM5065L4BT, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module, 650 V ±100A 39-Pin, DIP39

View all Motor Driver ICs

Subtotal (1 tube of 90 units)*

£1,465.56

(exc. VAT)

£1,758.69

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
90 +£16.284£1,465.56

*price indicative

RS Stock No.:
195-8975
Mfr. Part No.:
NFAM5065L4BT
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Motor Type

AC Induction, BLDC Motor, PMSM Motor

Maximum IGBT Collector Current

±100A

Maximum Output Current

50A

Maximum Supply Voltage

500 V

Maximum Collector Emitter Voltage

650 V

Mounting Type

Through Hole

Package Type

DIP39

Pin Count

39

The On Semiconductor Intelligent 100A power module is a fully-integrated inverter power module has an independent High side gate driver, LVIC, six IGBT’s, suitable for driving permanent magnet synchronous motors, brushless DC (BLDC) motors and AC asynchronous motors. In this device IGBT’s are configured in a three-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm.

Three-phase 650V, 50A IGBT module with independent drivers
Active logic interface
Built-in under voltage protection
Integrated bootstrap diodes and resistors Separate low-side IGBT emitter Connections for individual
Current sensing of each phase
Temperature sensor (VTS)
