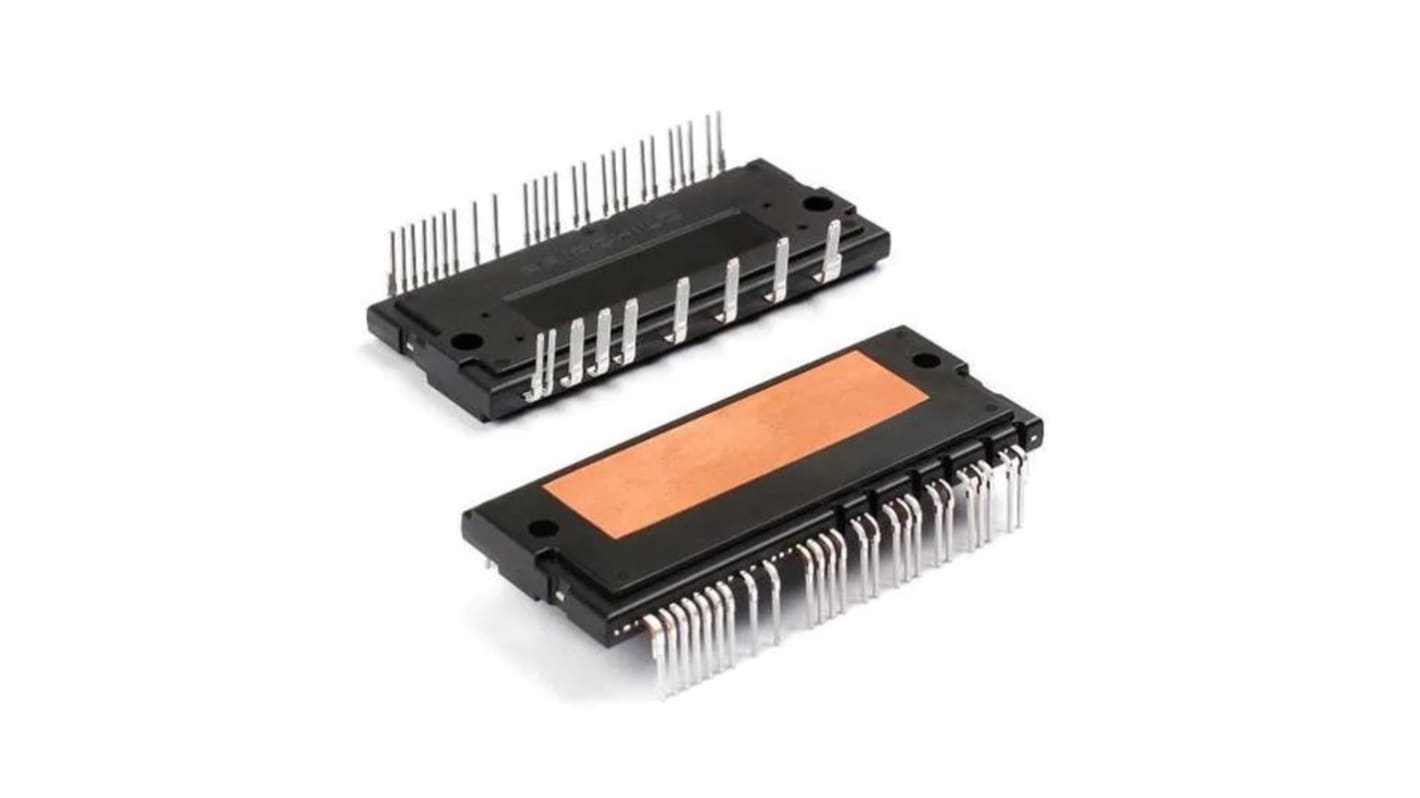

onsemi FNA22512A, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module, 1200 V 25A 34-Pin, SPMCA-A
- RS Stock No.:
- 186-9214
- Mfr. Part No.:
- FNA22512A
- Brand:
- onsemi
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each
£56.29
(exc. VAT)
£67.55
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £56.29 |
| 5 - 9 | £55.56 |
| 10 - 24 | £53.48 |
| 25 - 49 | £52.07 |
| 50 + | £51.74 |
- RS Stock No.:
- 186-9214
- Mfr. Part No.:
- FNA22512A
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
1200 V - 25 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections
Low-Loss, Short-Circuit-Rated IGBTs
Very Low Thermal Resistance Using Al2O3 DBC Substrate
Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing
Single-Grounded Power Supply Supported
Built-In NTC Thermistor for Temperature Monitoring and Management
Adjustable Over-Current Protection via Integrated Sense-IGBTs
Isolation Rating of 2500 Vrms / 1 min.
Applications
Motion Control - Home Appliance/Industrial Motor
Low-Loss, Short-Circuit-Rated IGBTs
Very Low Thermal Resistance Using Al2O3 DBC Substrate
Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing
Single-Grounded Power Supply Supported
Built-In NTC Thermistor for Temperature Monitoring and Management
Adjustable Over-Current Protection via Integrated Sense-IGBTs
Isolation Rating of 2500 Vrms / 1 min.
Applications
Motion Control - Home Appliance/Industrial Motor
Specifications
Attribute | Value |
|---|---|
| Motor Type | AC Induction, BLDC Motor, PMSM Motor |
| Configuration | 3 Phase |
| Output Configuration | Single Ended |
| Maximum IGBT Collector Current | 25A |
| Maximum Output Current | 2 (Fault)mA |
| Maximum Supply Voltage | 16.5 V |
| Maximum Collector Emitter Voltage | 1200 V |
| Mounting Type | Surface Mount |
| Package Type | SPMCA-A |
| Pin Count | 34 |
| Maximum Operating Supply Voltage | 16.5 V |
| Minimum Operating Supply Voltage | 13.5 V |
| Typical Switching Frequency | 20 (Maximum)kHz |
| Maximum Isolation Rating | 2500Vrms |
| Series | SPM2 |
| Product Height | 8.1mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 80.5 x 33.5 x 8.1mm |
| Product Width | 33.5mm |
| Maximum Operating Temperature | +150 °C |
| Length | 80.5mm |
| Product Length | 80.5mm |
| Height | 8.1mm |
| Width | 33.5mm |
