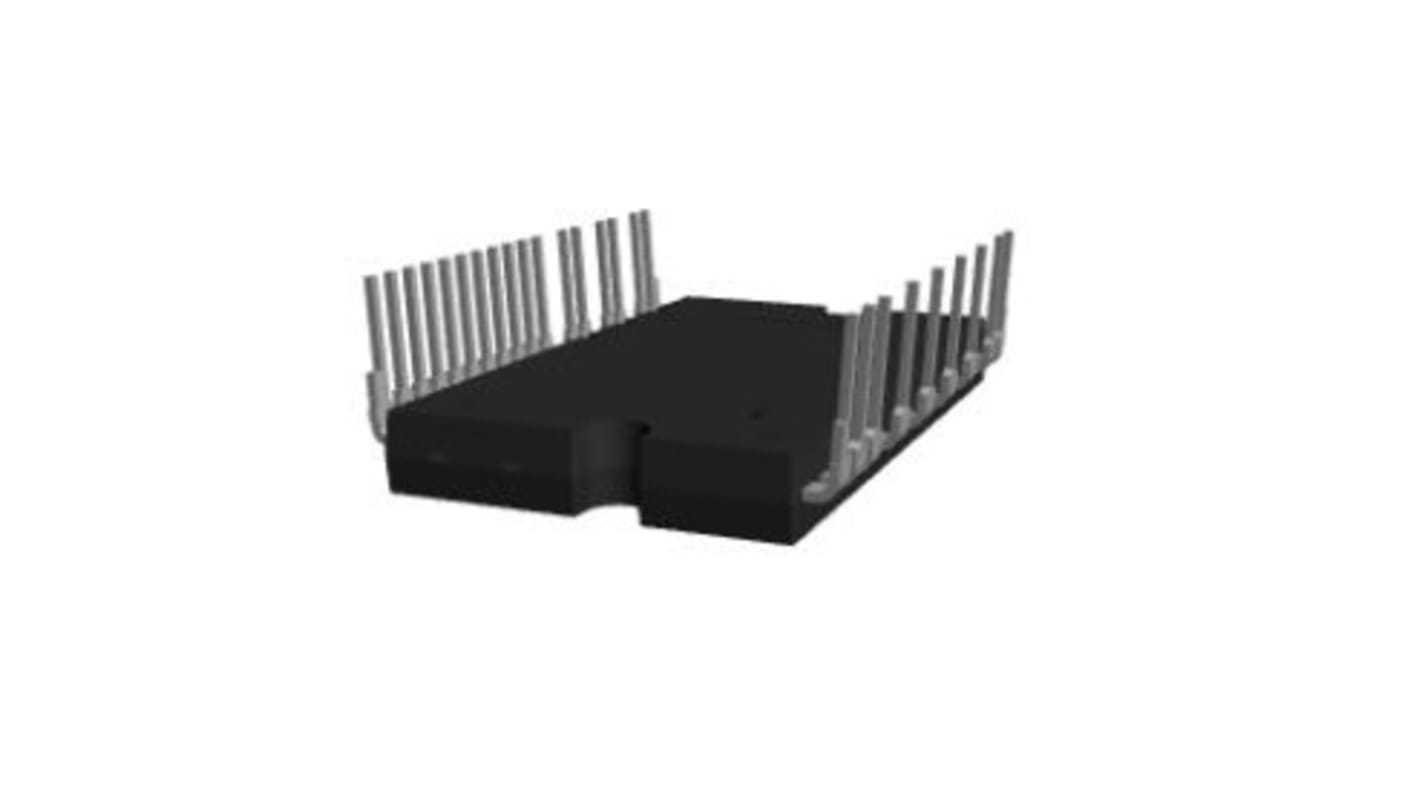

onsemi FND43060T2, AC Induction, BLDC Motor, PMSM Motor Motor Driver IC, 600 V 30 A, 60 A 26-Pin, SPMAA-J
- RS Stock No.:
- 189-0503
- Mfr. Part No.:
- FND43060T2
- Brand:
- onsemi
Available to back order for despatch 11/04/2025
Price Each
£13.06
(exc. VAT)
£15.67
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £13.06 |
10 - 24 | £12.72 |
25 - 99 | £12.38 |
100 - 249 | £12.06 |
250 + | £11.75 |
- RS Stock No.:
- 189-0503
- Mfr. Part No.:
- FND43060T2
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
FND43060T is a power module for motion control, Developed to Provide A Very Compact and High Performance Inverter Solution for AC Motor Drives in Low-Power Applications Such as Air Conditioners and Industrial Inverter. It Combines Low-Loss Short-Circuit Rated IGBTs and Optimized Gate Drivers in A Fully Isolated Package to Deliver A Simple and Robust Design. The System Reliability Is Further Enhanced by The Built-In NTC for Temperature Monitoring, Integrated Under-Voltage Lock-Out Function for Both High and Low Side, and An Over-Current Protection Input. Three Separate Open-Emitter Pins for Low Side IGBTs Make Three Leg Current Sensing Possible. Built-In Bootstrap Diodes and Dedicated VS Pins Make PCB Layout Easy.
600V 30A 3-phase IGBT inverter with integral gate drivers and protection
Low thermal resistance using ceramic substrate
Low-loss, Short-circuit rated IGBTs
Built-in bootstrap diodes and dedicated Vs pins simplify PCB layout
Built-in NTC thermistor for temperature monitoring
Separate open-emitter pins from low-side IGBTs for three-phase current sensing
Single-grounded power supply
Isolation rating 2000Vrms/min
Applications
Motion Control - Home Appliance/Industrial Motor
Low thermal resistance using ceramic substrate
Low-loss, Short-circuit rated IGBTs
Built-in bootstrap diodes and dedicated Vs pins simplify PCB layout
Built-in NTC thermistor for temperature monitoring
Separate open-emitter pins from low-side IGBTs for three-phase current sensing
Single-grounded power supply
Isolation rating 2000Vrms/min
Applications
Motion Control - Home Appliance/Industrial Motor
Specifications
Attribute | Value |
---|---|
Motor Type | AC Induction, BLDC Motor, PMSM Motor |
Output Configuration | 3 Phase |
Maximum Output Current | 1 (Fault)mA |
Maximum IGBT Collector Current | 30 A, 60 A |
Maximum Supply Voltage | 400 V |
Maximum Collector Emitter Voltage | 600 V |
Mounting Type | Through Hole |
Package Type | SPMAA-J |
Pin Count | 26 |
Maximum Operating Supply Voltage | 400 V |
Typical Switching Frequency | 20 (Maximum PWM)kHz |
Maximum Isolation Rating | 4000Vrms |
Series | Motion SPM 45 |
Maximum Operating Temperature | +150 °C |
Product Length | 39.5mm |
Length | 39.5mm |
Product Width | 23.5mm |
Dimensions | 39.5 x 23.5 x 4.8mm |
Minimum Operating Temperature | -40 °C |
Product Height | 4.8mm |
Width | 23.5mm |
Height | 4.8mm |
