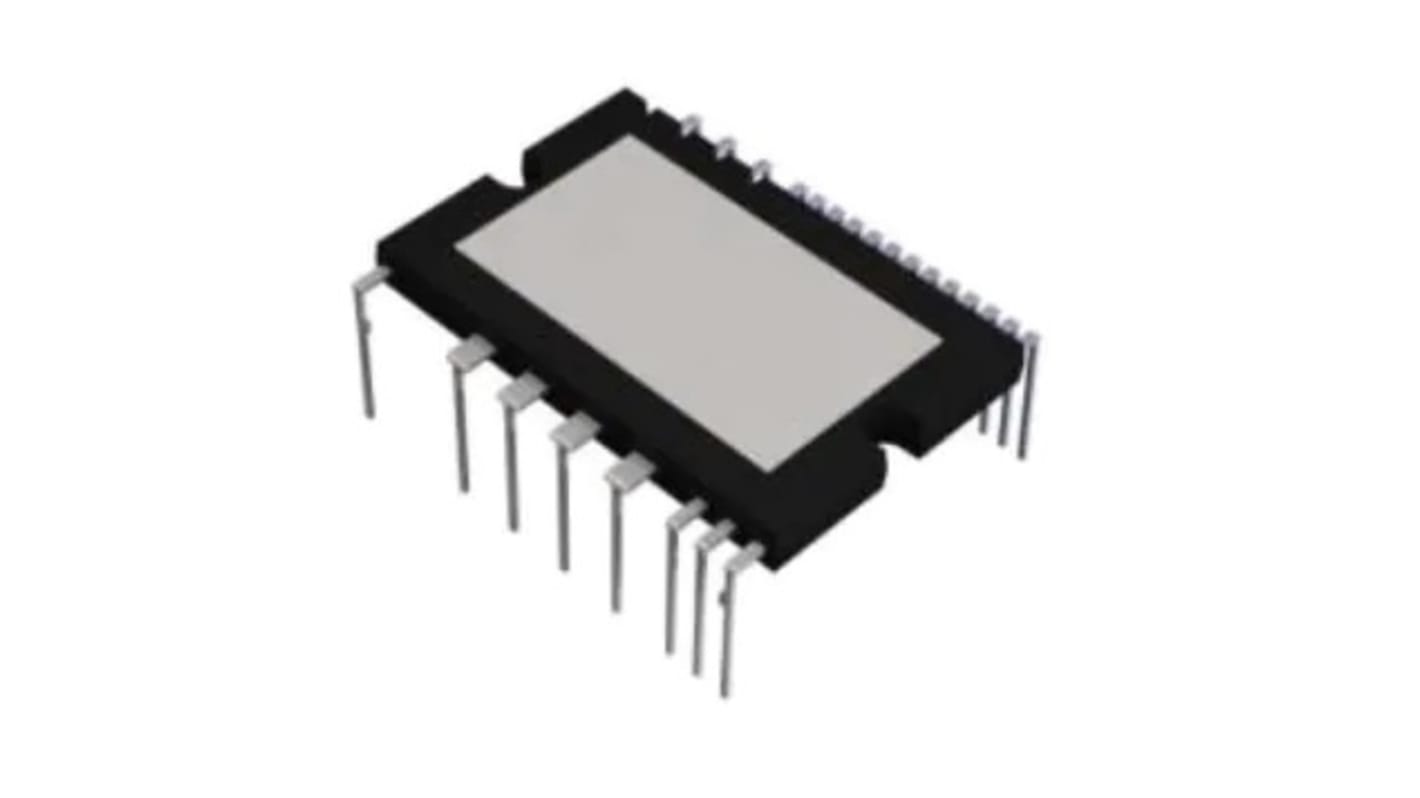

ROHM BM64374S-VA, DC Motor Motor Driver IC, 600 V 15 A 25-Pin, HSDIP25
- RS Stock No.:
- 235-2635
- Mfr. Part No.:
- BM64374S-VA
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 235-2635
- Mfr. Part No.:
- BM64374S-VA
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Motor Type | DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 15A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | HSDIP25 | |
| Output Current | 1mA | |
| Pin Count | 25 | |
| Minimum Supply Voltage | 0V | |
| Maximum Supply Voltage | 450V | |
| Typical Switching Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 115°C | |
| Series | BM64374S | |
| Standards/Approvals | No | |
| Length | 38.5mm | |
| Height | 3.75mm | |
| Inverter Power Rating | 33W | |
| Automotive Standard | No | |
| Supply Current | 2.8mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Motor Type DC Motor | ||
Product Type Motor Driver IC | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 15A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type HSDIP25 | ||
Output Current 1mA | ||
Pin Count 25 | ||
Minimum Supply Voltage 0V | ||
Maximum Supply Voltage 450V | ||
Typical Switching Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 115°C | ||
Series BM64374S | ||
Standards/Approvals No | ||
Length 38.5mm | ||
Height 3.75mm | ||
Inverter Power Rating 33W | ||
Automotive Standard No | ||
Supply Current 2.8mA | ||
The ROHM BM6437xx-VA series is an intelligent power module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. It is mainly used for compressor motor, control for Air conditioner, washing machine and refrigerator.
3 phase DC/AC inverter
Low side IGBT open emitter
High side IGBT gate driver
Temperature output by analogue signal
