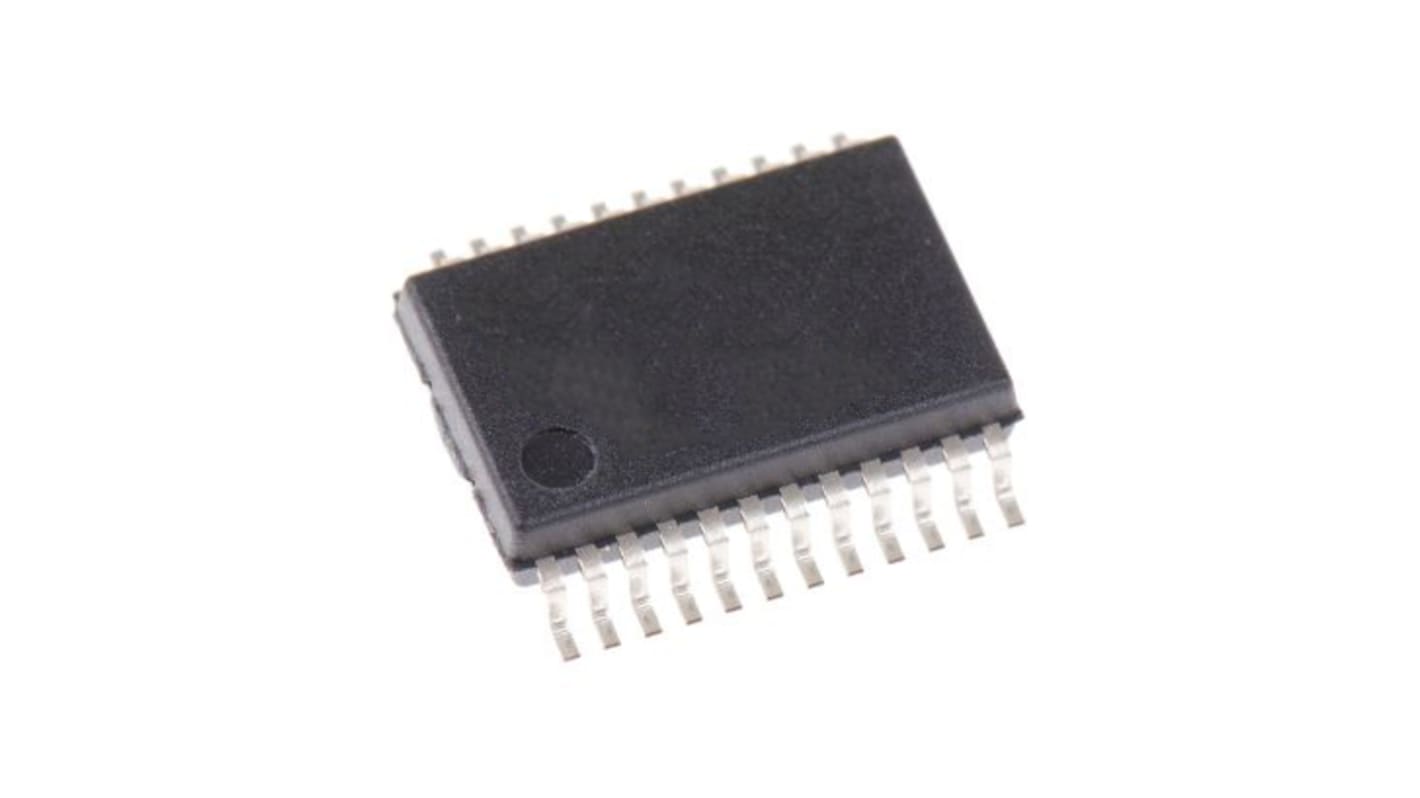

onsemi NCV7719DQAR2G, DC Motor Driver IC 24-Pin, SSOP
- RS Stock No.:
- 189-0446
- Mfr. Part No.:
- NCV7719DQAR2G
- Brand:
- onsemi
Save 34% when you buy 1000 units
Subtotal (1 pack of 2 units)*
£8.53
(exc. VAT)
£10.236
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,402 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £4.265 | £8.53 |
| 20 - 198 | £3.675 | £7.35 |
| 200 - 998 | £3.185 | £6.37 |
| 1000 + | £2.80 | £5.60 |
*price indicative
- RS Stock No.:
- 189-0446
- Mfr. Part No.:
- NCV7719DQAR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | DC | |
| Output Configuration | Half Bridge | |
| Configuration | 8-Channel | |
| Maximum Output Current | 550mA | |
| Maximum Supply Voltage | 5.25 V | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Pin Count | 24 | |
| Minimum Operating Supply Voltage | 3.15 V | |
| Typical Switching Frequency | 5 (Maximum)MHz | |
| Length | 8.64mm | |
| Maximum Operating Temperature | +150 °C | |
| Product Width | 3.9mm | |
| Product Length | 8.64mm | |
| Automotive Standard | AEC-Q100 | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.65mm | |
| Width | 3.9mm | |
| Product Height | 1.65mm | |
| Dimensions | 8.64 x 3.9 x 1.65mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type DC | ||
Output Configuration Half Bridge | ||
Configuration 8-Channel | ||
Maximum Output Current 550mA | ||
Maximum Supply Voltage 5.25 V | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Maximum Operating Supply Voltage 5.25 V | ||
Pin Count 24 | ||
Minimum Operating Supply Voltage 3.15 V | ||
Typical Switching Frequency 5 (Maximum)MHz | ||
Length 8.64mm | ||
Maximum Operating Temperature +150 °C | ||
Product Width 3.9mm | ||
Product Length 8.64mm | ||
Automotive Standard AEC-Q100 | ||
Minimum Operating Temperature -40 °C | ||
Height 1.65mm | ||
Width 3.9mm | ||
Product Height 1.65mm | ||
Dimensions 8.64 x 3.9 x 1.65mm | ||
The NCV7719 Octal is an eight channel half-bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states. The device is controlled via a 16 bit SPI interface and is daisy chain compatible.
Low Quiescent Current Sleep Mode
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.55 A Peak Current
RDS(on) = 1 ohm (typ)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
High Side and Low Side Drivers Connected in a Half Bridge Configuration
Integrated Freewheeling Protection (LS and HS)
0.55 A Peak Current
RDS(on) = 1 ohm (typ)
5 MHz SPI Control
Compliance with 5 V and 3. 3 V Systems
Undervoltage and Overvoltage Lockout
Overcurrent Protection, Overtemperature Protection
Under Load Detection
Discriminated Fault Reporting
16Bit Frame Detection
Daisy Chain Compatible with Multiple of 8 bit Devices
Applications
Automotive
Industrial
DC Motor Management for HVAC Application
