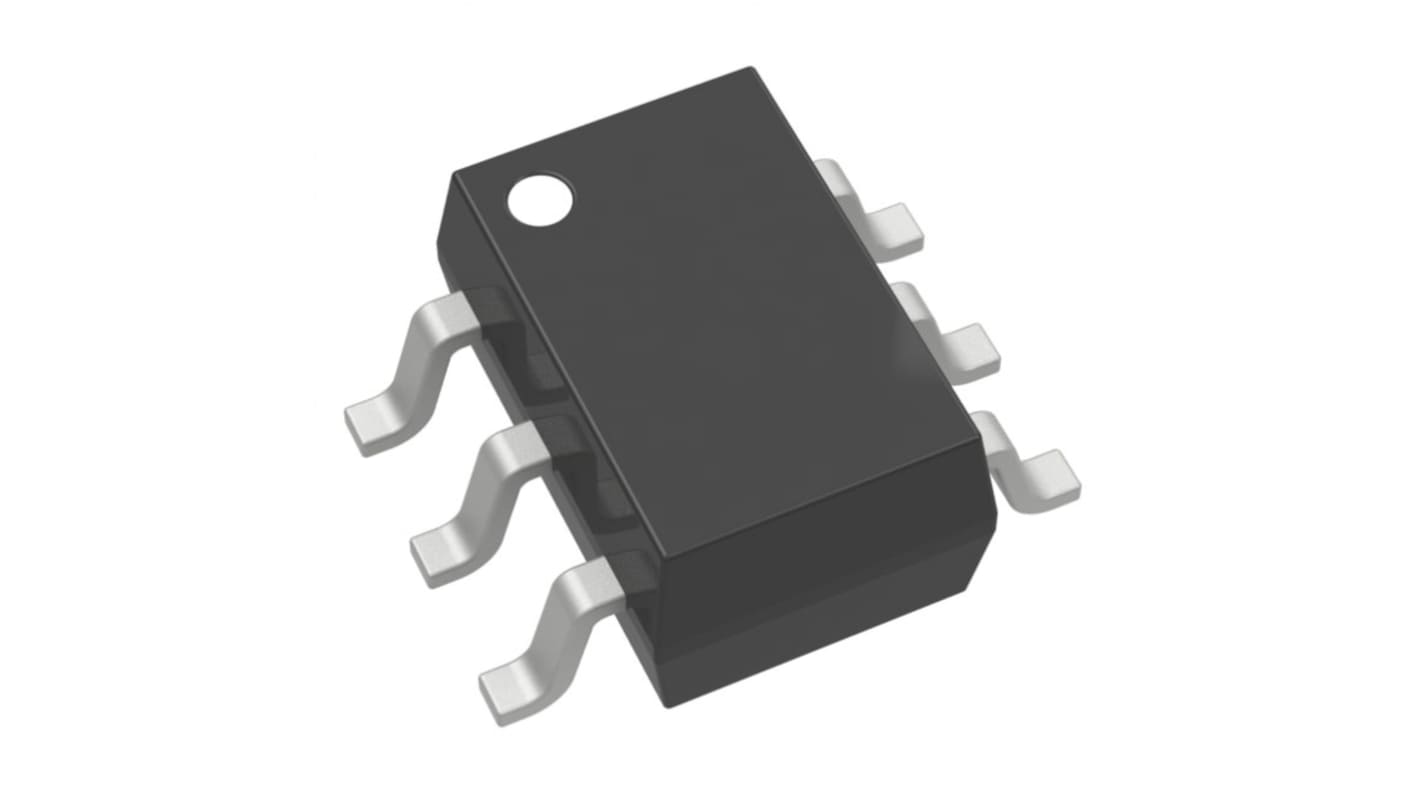

MPS MP6513GJ-P, Stepper Motor Dual H Bridge Driver 6-Pin, TSOT23-6
- RS Stock No.:
- 337-279
- Mfr. Part No.:
- MP6513GJ-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-279
- Mfr. Part No.:
- MP6513GJ-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Motor Type | Stepper Motor | |
| Output Configuration | H Bridge | |
| Configuration | H Bridge | |
| Maximum Output Current | 800mA | |
| Maximum Supply Voltage | 2.5 → 21 V | |
| Package Type | TSOT23-6 | |
| Pin Count | 6 | |
Select all | ||
|---|---|---|
Brand MPS | ||
Motor Type Stepper Motor | ||
Output Configuration H Bridge | ||
Configuration H Bridge | ||
Maximum Output Current 800mA | ||
Maximum Supply Voltage 2.5 → 21 V | ||
Package Type TSOT23-6 | ||
Pin Count 6 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd H bridge motor driver used for driving reversible motors, which can drive one DC motor, one winding of a stepper motor, or other loads. The H bridge consists of four N channel power MOSFETs. An internal charge pump generates the necessary gate drive voltages. Its operates on a motor power supply voltage from 2.5V to 21V, which can supply an output current of up to 0.8A according to the logic control.
Thermal shutdown
Internal charge pump
Cycle by cycle over current protection
Short circuit protection
Internal charge pump
Cycle by cycle over current protection
Short circuit protection
