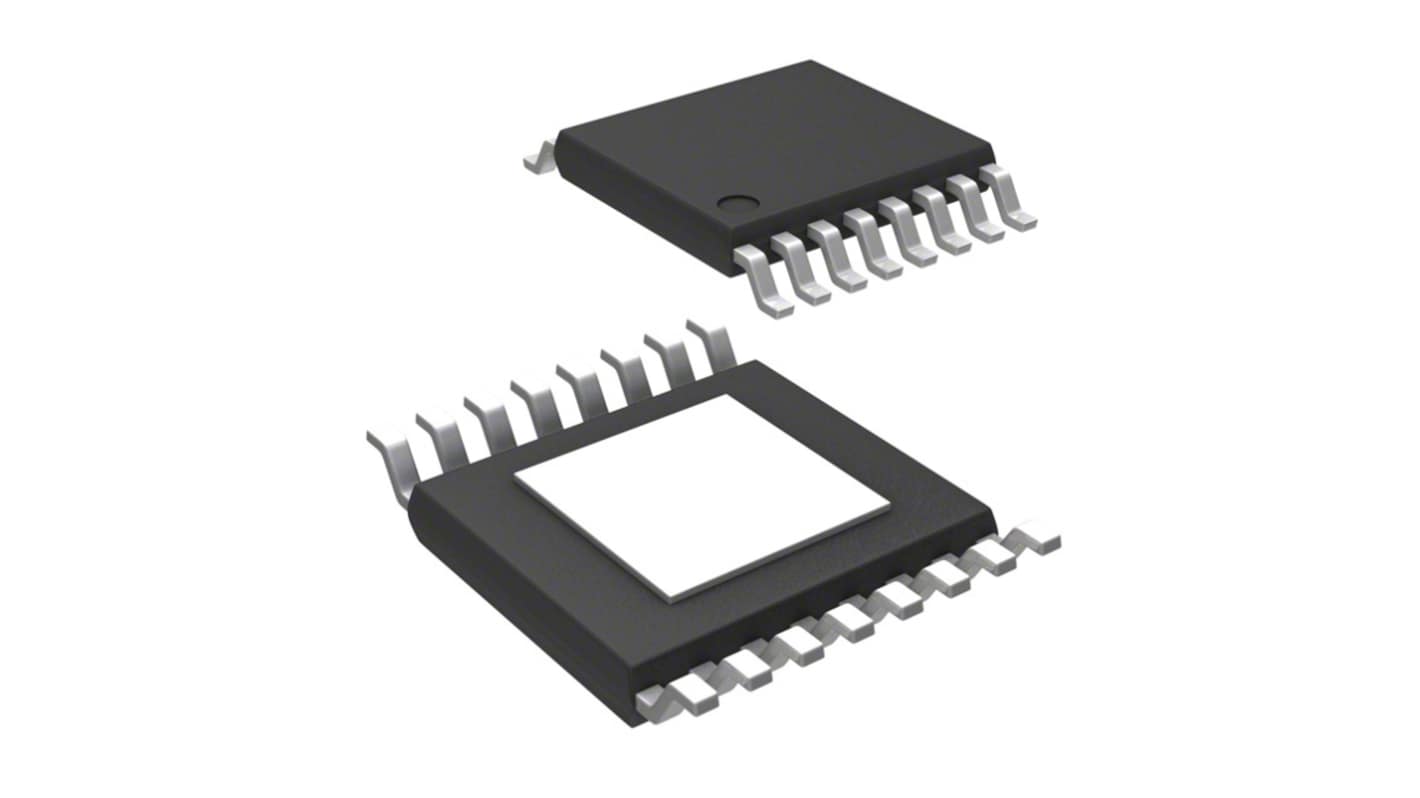

MPS MP6515GF-P, Brushed DC Motor Dual H Bridge Driver 16-Pin, TSSOP-16 EP
- RS Stock No.:
- 337-283
- Mfr. Part No.:
- MP6515GF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-283
- Mfr. Part No.:
- MP6515GF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Motor Type | Brushed DC Motor | |
| Configuration | H Bridge | |
| Output Configuration | H Bridge | |
| Maximum Output Current | 2.8A | |
| Maximum Supply Voltage | 5.4 → 34 V | |
| Package Type | TSSOP-16 EP | |
| Pin Count | 16 | |
Select all | ||
|---|---|---|
Brand MPS | ||
Motor Type Brushed DC Motor | ||
Configuration H Bridge | ||
Output Configuration H Bridge | ||
Maximum Output Current 2.8A | ||
Maximum Supply Voltage 5.4 → 34 V | ||
Package Type TSSOP-16 EP | ||
Pin Count 16 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd H bridge motor driver operates from a supply voltage of up to 35V and delivers motor current up to 2.8A. Typically, the MP6515 is used to drive a DC brush motor. An internal current sensing circuit provides an output with voltage proportional to the load current. In addition, cycle by cycle current regulation/limiting is provided. These features do not require the use of a low ohm shunt resistor.
3.3V and 5V compatible logic supply
Over current protection
Over voltage protection
Thermal shutdown
Under voltage lockout
Fault indication output
Thermally enhanced surface mount package
Over current protection
Over voltage protection
Thermal shutdown
Under voltage lockout
Fault indication output
Thermally enhanced surface mount package
