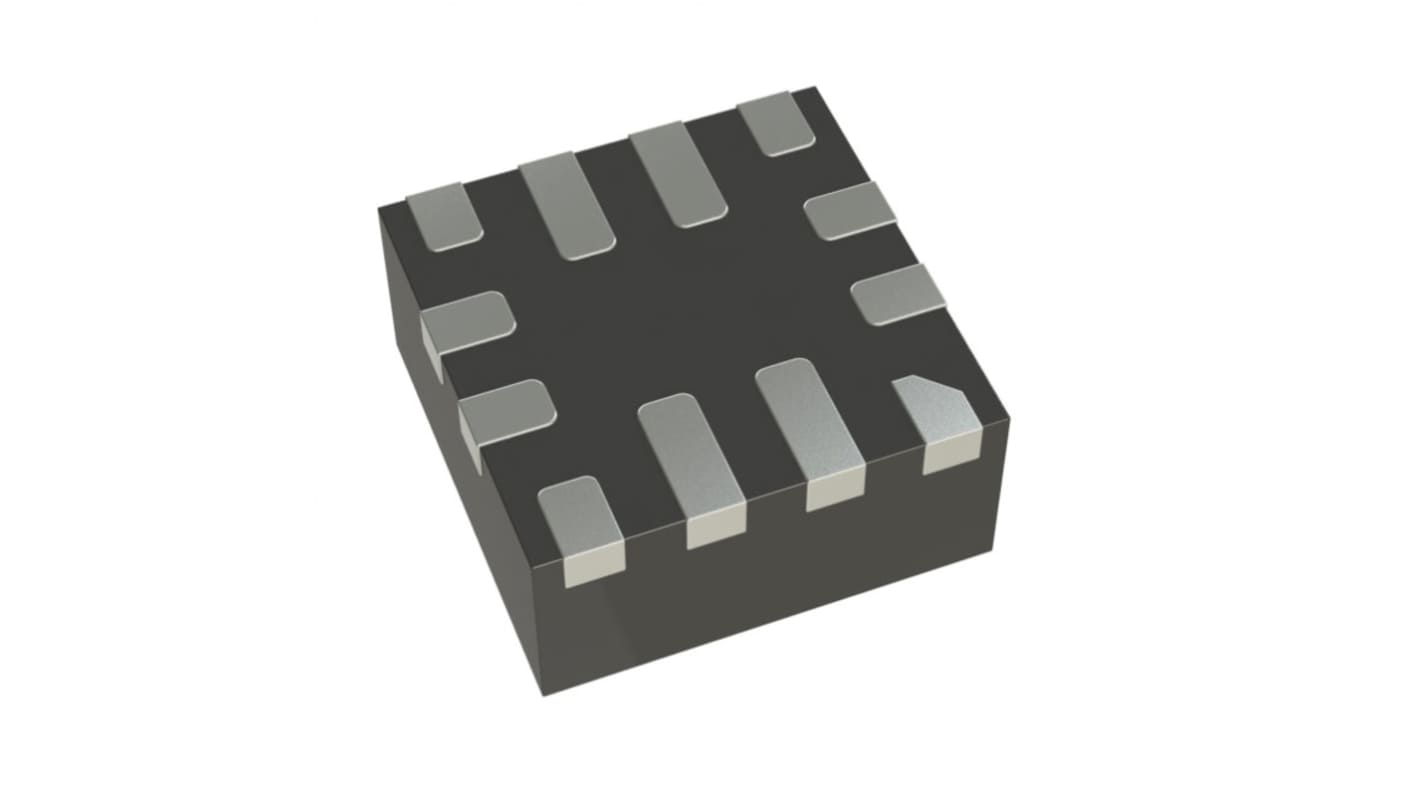

MPS MP6550GG-P, Brushed DC Motor Dual H Bridge Driver 12-Pin, QFN-12
- RS Stock No.:
- 337-296
- Mfr. Part No.:
- MP6550GG-P
- Brand:
- MPS
Subtotal (1 reel of 500 units)*
£468.00
(exc. VAT)
£561.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.936 | £468.00 |
*price indicative
- RS Stock No.:
- 337-296
- Mfr. Part No.:
- MP6550GG-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Product Type | Dual H Bridge Driver | |
| Motor Type | Brushed DC Motor | |
| Package Type | QFN-12 | |
| Pin Count | 12 | |
| Output Current | 2A | |
| Maximum Supply Voltage | 22V | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand MPS | ||
Product Type Dual H Bridge Driver | ||
Motor Type Brushed DC Motor | ||
Package Type QFN-12 | ||
Pin Count 12 | ||
Output Current 2A | ||
Maximum Supply Voltage 22V | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The MPS International Ltd H bridge motor driver consists of four N channel power MOSFETs and an internal charge pump to generate gate drive voltages. It is typically used to drive a DC brush motor. Its operates on a motor power supply voltage from 1.8V to 22V, which can supply an output current of up to 2A according to the logic control.
Low standby circuit current
Thermal shutdown
Internal charge pump
Cycle by cycle over current protection
Short circuit protection
