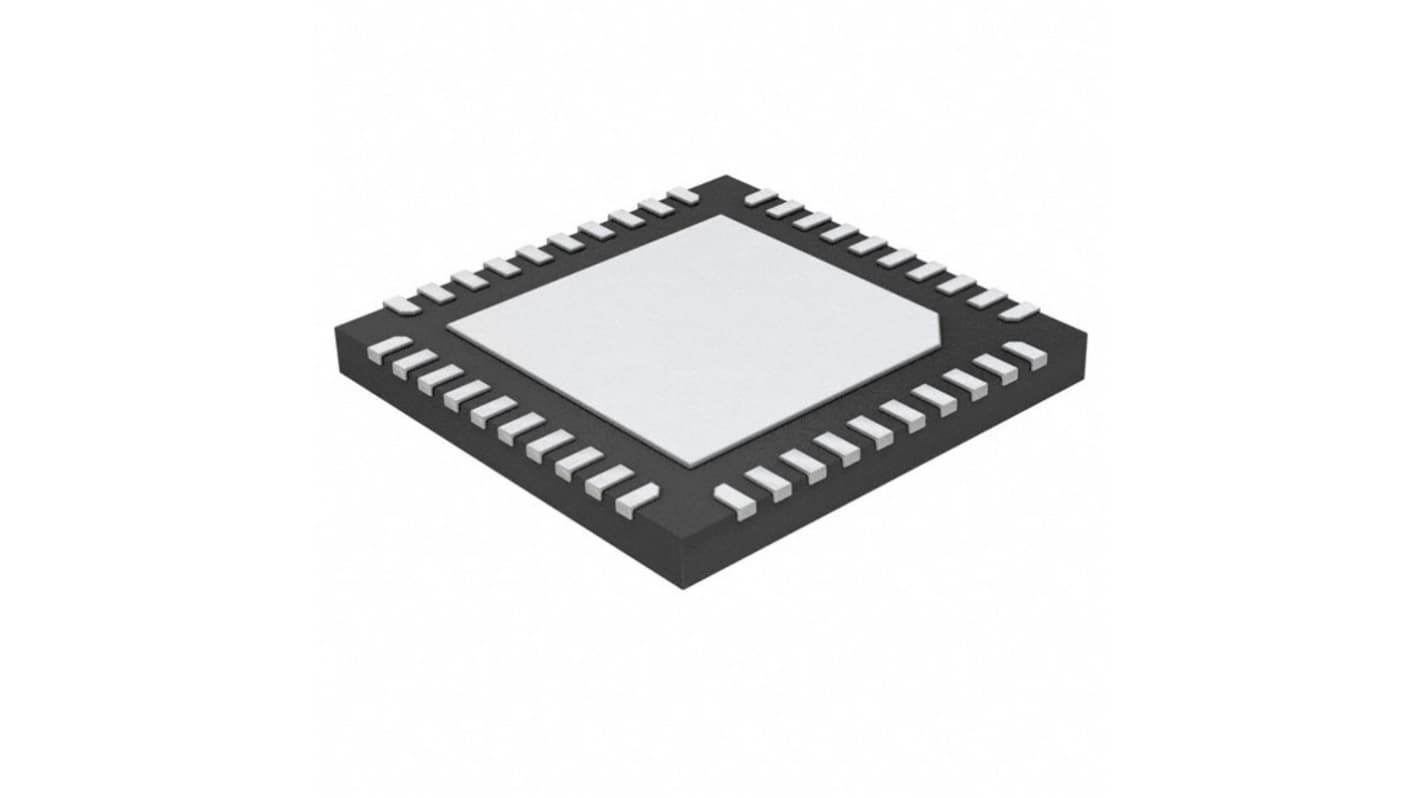

MPS MP6536DU-LF-P, Brushless DC Motor Dual H Bridge Driver 40-Pin, QFN-40
- RS Stock No.:
- 337-293
- Mfr. Part No.:
- MP6536DU-LF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-293
- Mfr. Part No.:
- MP6536DU-LF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Motor Type | Brushless DC Motor | |
| Output Configuration | Half Bridge | |
| Configuration | Half Bridge | |
| Maximum Output Current | 5.5A | |
| Maximum Supply Voltage | 5 → 26 V | |
| Package Type | QFN-40 | |
| Pin Count | 40 | |
Select all | ||
|---|---|---|
Brand MPS | ||
Motor Type Brushless DC Motor | ||
Output Configuration Half Bridge | ||
Configuration Half Bridge | ||
Maximum Output Current 5.5A | ||
Maximum Supply Voltage 5 → 26 V | ||
Package Type QFN-40 | ||
Pin Count 40 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd 3 channel half bridge driver IC intended to drive a 3 phase brushless DC motor. Its features a low current shutdown mode, standby mode, input under voltage protection, current limit, thermal shutdown, and fault flag signal output. All channels of the drivers interface with standard logic signals.
All switches current limited
Internal under voltage protection
Internal thermal protection
Short circuit protection
Fault output flag
Internal under voltage protection
Internal thermal protection
Short circuit protection
Fault output flag
