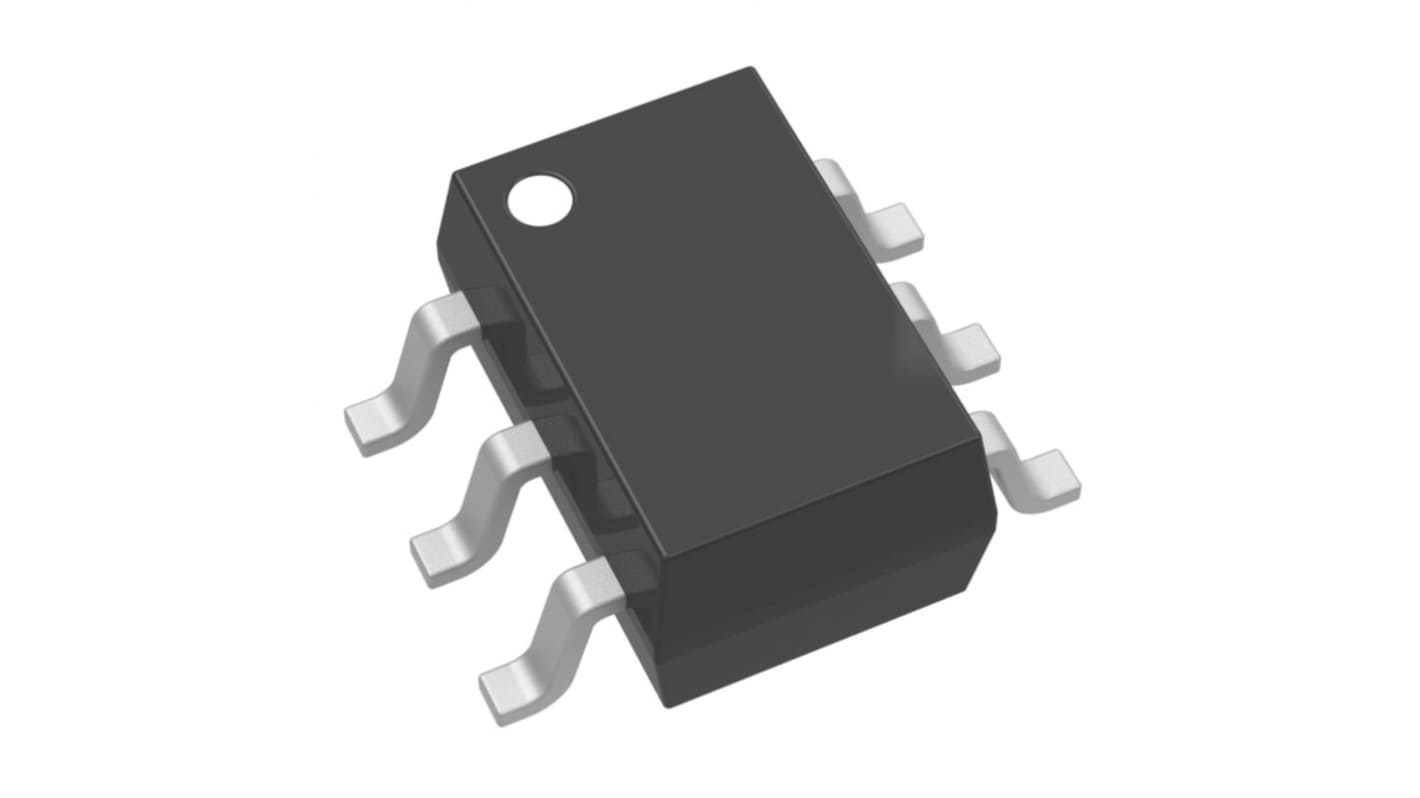

MPS, Stepper Motor Dual H Bridge Driver 6-Pin, TSOT-23-6
- RS Stock No.:
- 337-281
- Mfr. Part No.:
- MP6513LGJ-P
- Brand:
- MPS
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.75
(exc. VAT)
£4.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.75 | £3.75 |
| 50 - 95 | £0.712 | £3.56 |
| 100 + | £0.66 | £3.30 |
*price indicative
- RS Stock No.:
- 337-281
- Mfr. Part No.:
- MP6513LGJ-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Product Type | Dual H Bridge Driver | |
| Motor Type | Stepper Motor | |
| Configuration | H Bridge | |
| Package Type | TSOT-23-6 | |
| Pin Count | 6 | |
| Output Current | 600mA | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand MPS | ||
Product Type Dual H Bridge Driver | ||
Motor Type Stepper Motor | ||
Configuration H Bridge | ||
Package Type TSOT-23-6 | ||
Pin Count 6 | ||
Output Current 600mA | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The MPS International Ltd H bridge motor driver used for driving reversible motors, which can drive one DC motor, one winding of a stepper motor, or other loads. The H bridge consists of four N channel power MOSFETs. An internal charge pump generates the necessary gate drive voltages. Its operates on a motor power supply voltage from 2.5V to 5.5V, which can supply an output current of up to 0.6A according to the logic control.
Thermal shutdown
Internal charge pump
Cycle by cycle over current protection
Short circuit protection
