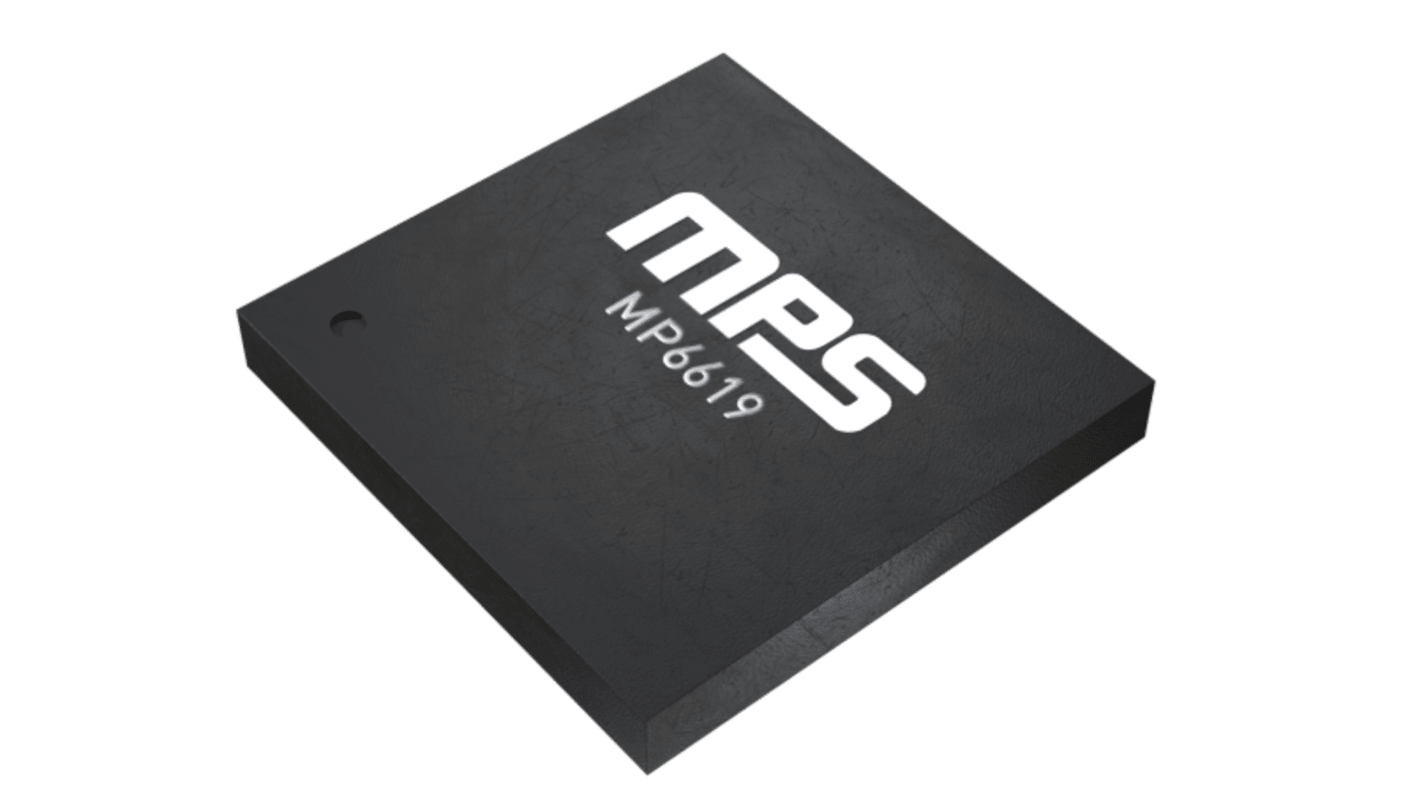

MPS MP6619GQ-P, Stepper Motor Dual H Bridge Driver 19-Pin, QFN-19
- RS Stock No.:
- 337-304
- Mfr. Part No.:
- MP6619GQ-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-304
- Mfr. Part No.:
- MP6619GQ-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Motor Type | Stepper Motor | |
| Output Configuration | H Bridge | |
| Configuration | H Bridge | |
| Maximum Output Current | 5A | |
| Maximum Supply Voltage | 5.4 → 28 V | |
| Package Type | QFN-19 | |
| Pin Count | 19 | |
Select all | ||
|---|---|---|
Brand MPS | ||
Motor Type Stepper Motor | ||
Output Configuration H Bridge | ||
Configuration H Bridge | ||
Maximum Output Current 5A | ||
Maximum Supply Voltage 5.4 → 28 V | ||
Package Type QFN-19 | ||
Pin Count 19 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd H bridge motor driver that operates from a supply voltage up to 28V and delivers a motor current up to 5A. It is ideally suited to drive a brushed DC motor. It also has cycle by cycle current limiting. Full protection features include over current protection (OCP), input over voltage protection (OVP), under voltage lockout , and thermal shutdown.
Output short circuit protection
Input over voltage protection
Under voltage lockout
Over temperature shutdown
Fault indication output
Input over voltage protection
Under voltage lockout
Over temperature shutdown
Fault indication output
