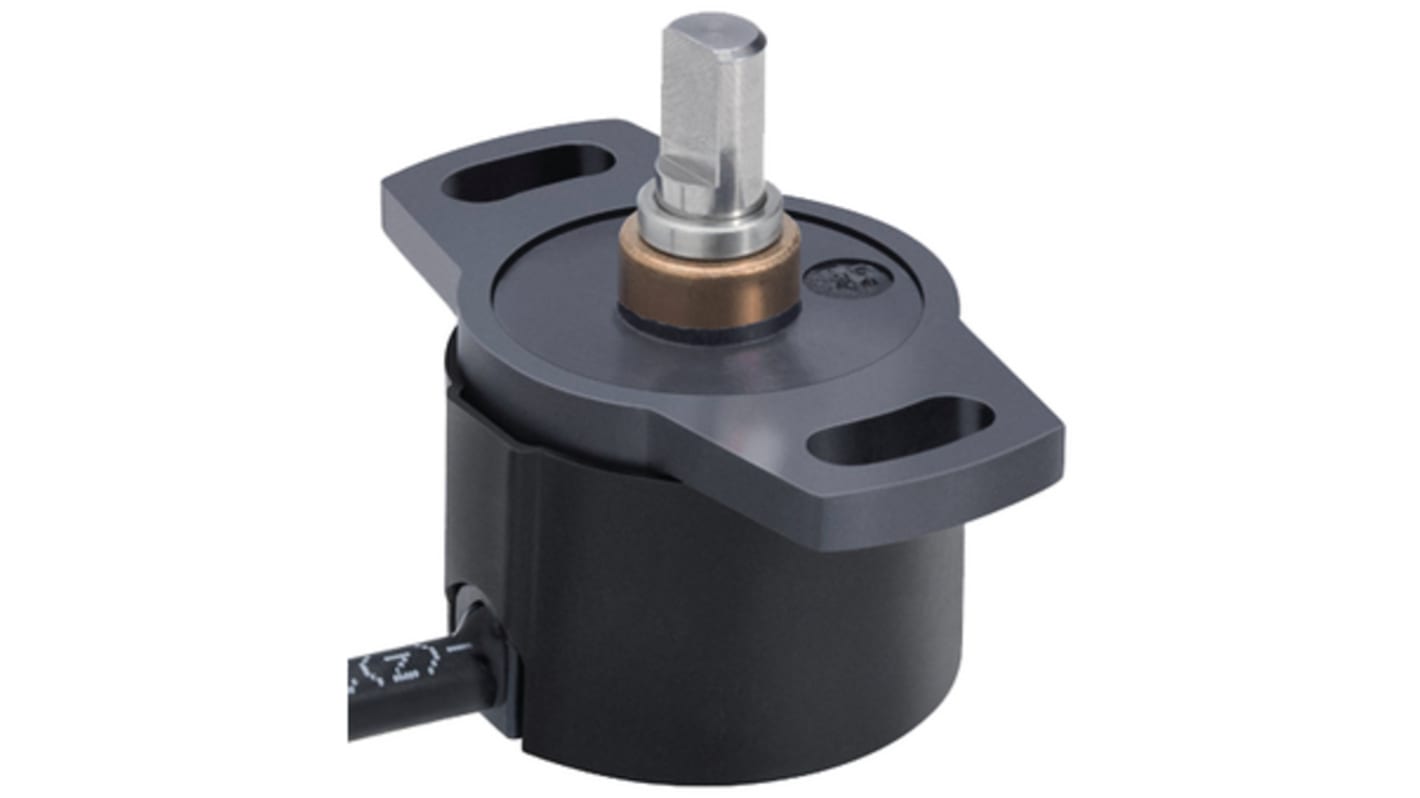

Novotechnik RSM2800 Series Hall Effect Position Sensor 30V, Analogue Signal, 4.6 mm Shaft
- RS Stock No.:
- 288-3644
- Distrelec Article No.:
- 110-37-224
- Mfr. Part No.:
- RSM-2832-010-111-202
- Brand:
- Novotechnik
Subtotal (1 unit)*
£281.68
(exc. VAT)
£338.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £281.68 |
*price indicative
- RS Stock No.:
- 288-3644
- Distrelec Article No.:
- 110-37-224
- Mfr. Part No.:
- RSM-2832-010-111-202
- Brand:
- Novotechnik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Novotechnik | |
| Product Type | Position Sensor | |
| Encoder Technology | Hall Effect | |
| Series | RSM2800 | |
| Output Signal Type | Analogue | |
| Shaft Diameter | 4.6mm | |
| Interface Type | Analogue | |
| IP Rating | IP65 | |
| Terminal Type | Cable Terminal | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Overall Depth | 40mm | |
| Overall Width | 160mm | |
| Overall Height | 225mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 85°C | |
| Mount Type | Cable | |
| Switching Frequency | 2000Hz | |
| Select all | ||
|---|---|---|
Brand Novotechnik | ||
Product Type Position Sensor | ||
Encoder Technology Hall Effect | ||
Series RSM2800 | ||
Output Signal Type Analogue | ||
Shaft Diameter 4.6mm | ||
Interface Type Analogue | ||
IP Rating IP65 | ||
Terminal Type Cable Terminal | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Overall Depth 40mm | ||
Overall Width 160mm | ||
Overall Height 225mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 85°C | ||
Mount Type Cable | ||
Switching Frequency 2000Hz | ||
- COO (Country of Origin):
- DE
The compact and contactless Novoturn Multiturn Sensor is a versatile solution for measuring angles across multiple turns. With its non-contacting, magnetic detection technology, this sensor offers high resolution and accuracy. It is not sensitive to dirt or dampness, making it ideal for various applications. The sensor provides continuous analogue output signal across the selected angle range, ensuring precise measurements in demanding environments.
Compact and contactless design
Non-contacting magnetic detection technology
High resolution and accuracy
Continuous analogue output signal
Resistant to dirt and dampness
Versatile applications
