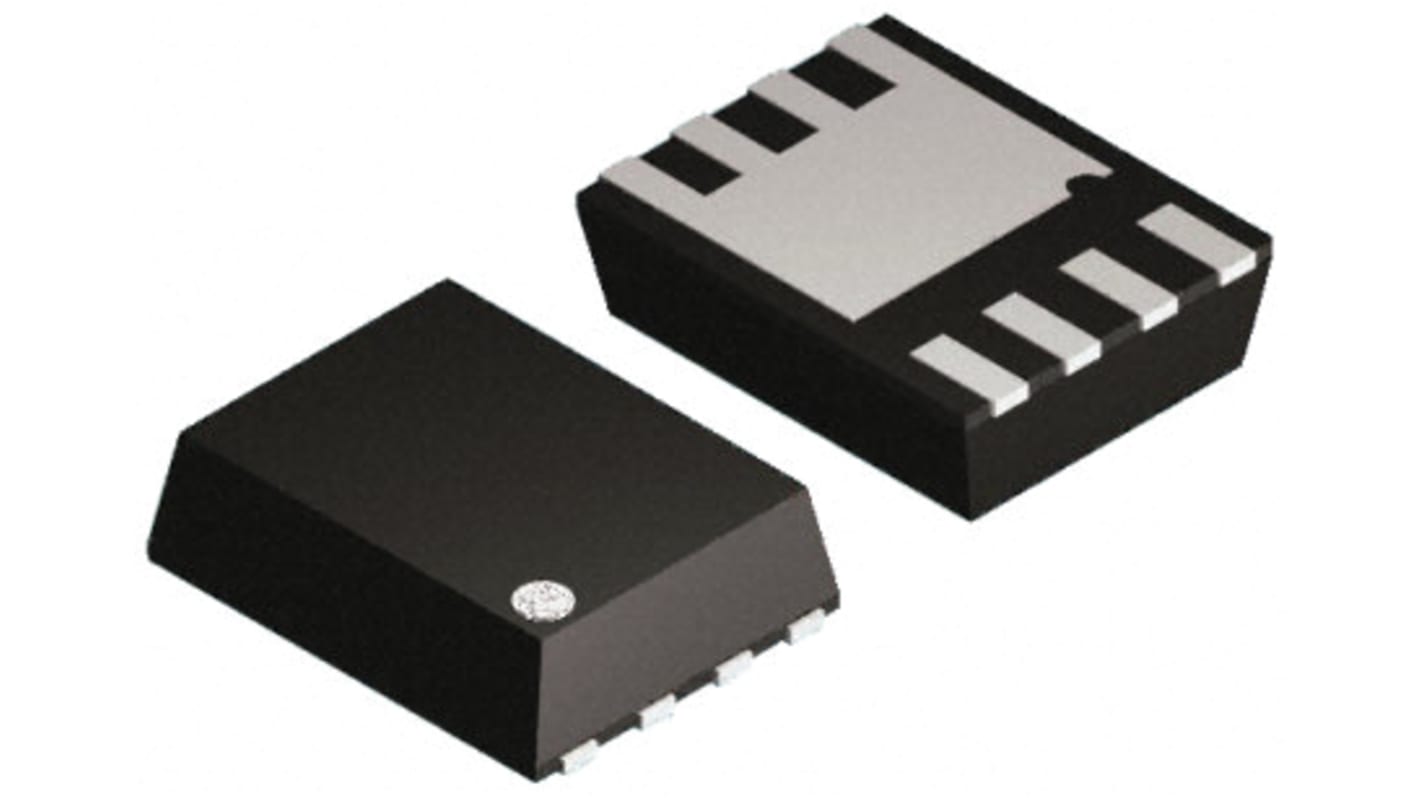

N-Channel MOSFET, 100 A, 30 V, 8-Pin PowerPAK SO-8 Vishay SIRA00DP-T1-GE3
- RS Stock No.:
- 919-4246
- Mfr. Part No.:
- SIRA00DP-T1-GE3
- Brand:
- Vishay
220 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.741
(exc. VAT)
£0.889
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.741 | £2,223.00 |
*price indicative
- RS Stock No.:
- 919-4246
- Mfr. Part No.:
- SIRA00DP-T1-GE3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
N-Channel MOSFET, TrenchFET Gen IV, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PowerPAK SO-8 |
| Series | TrenchFET |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 1.35 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 104 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +20 V |
| Typical Gate Charge @ Vgs | 147 nC @ 10 V |
| Length | 6.25mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Number of Elements per Chip | 1 |
| Width | 5.26mm |
| Height | 1.12mm |
| Minimum Operating Temperature | -55 °C |
