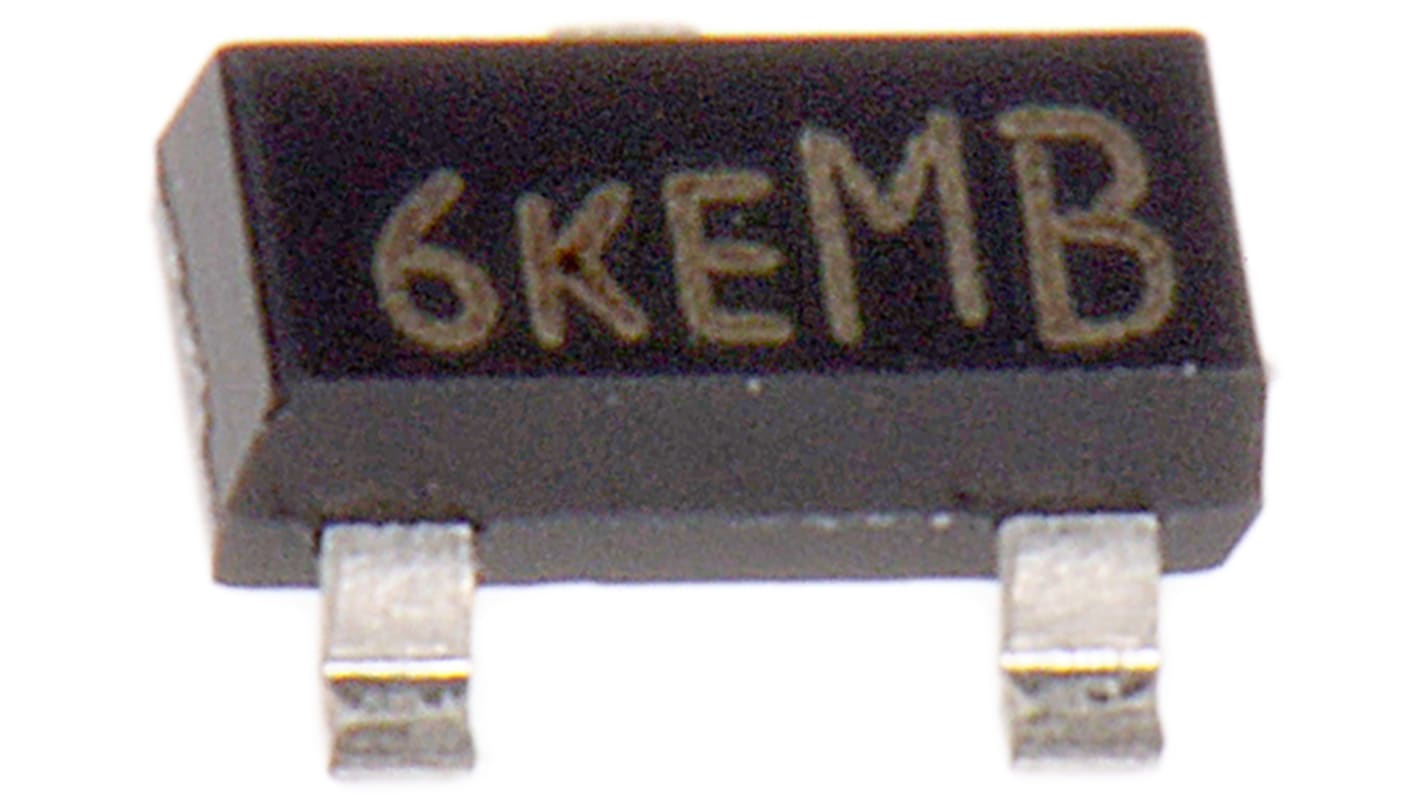

Vishay TP0610K Type P-Channel MOSFET, 185 mA, 60 V Enhancement, 3-Pin SOT-23 TP0610K-T1-GE3
- RS Stock No.:
- 787-9018
- Mfr. Part No.:
- TP0610K-T1-GE3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 787-9018
- Mfr. Part No.:
- TP0610K-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 185mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | TP0610K | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 10Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | -1.4V | |
| Typical Gate Charge Qg @ Vgs | 1.7nC | |
| Maximum Power Dissipation Pd | 350mW | |
| Maximum Operating Temperature | 150°C | |
| Length | 3.04mm | |
| Standards/Approvals | No | |
| Height | 1.02mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 185mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Series TP0610K | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 10Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf -1.4V | ||
Typical Gate Charge Qg @ Vgs 1.7nC | ||
Maximum Power Dissipation Pd 350mW | ||
Maximum Operating Temperature 150°C | ||
Length 3.04mm | ||
Standards/Approvals No | ||
Height 1.02mm | ||
Automotive Standard No | ||
Halogen-free
Definition
TrenchFET® Power MOSFET
High-Side Switching
Low On-Resistance: 6
Low Threshold: - 2 V (typ.)
Fast Swtiching Speed: 20 ns (typ.)
Low Input Capacitance: 20 pF (typ.)
2000 V ESD Protection
APPLICATIONS
Drivers: Relays, Solenoids, Lamps, Hammers, Display,
Memories, Transistors, etc.
Battery Operated Systems
Power Supply Converter Circuits
Solid-State Relays
BENEFITS
Ease in Driving Switches
Low Offset (Error) Voltage
Low-Voltage Operation
High-Speed Circuits
Easily Driven without Buffer
