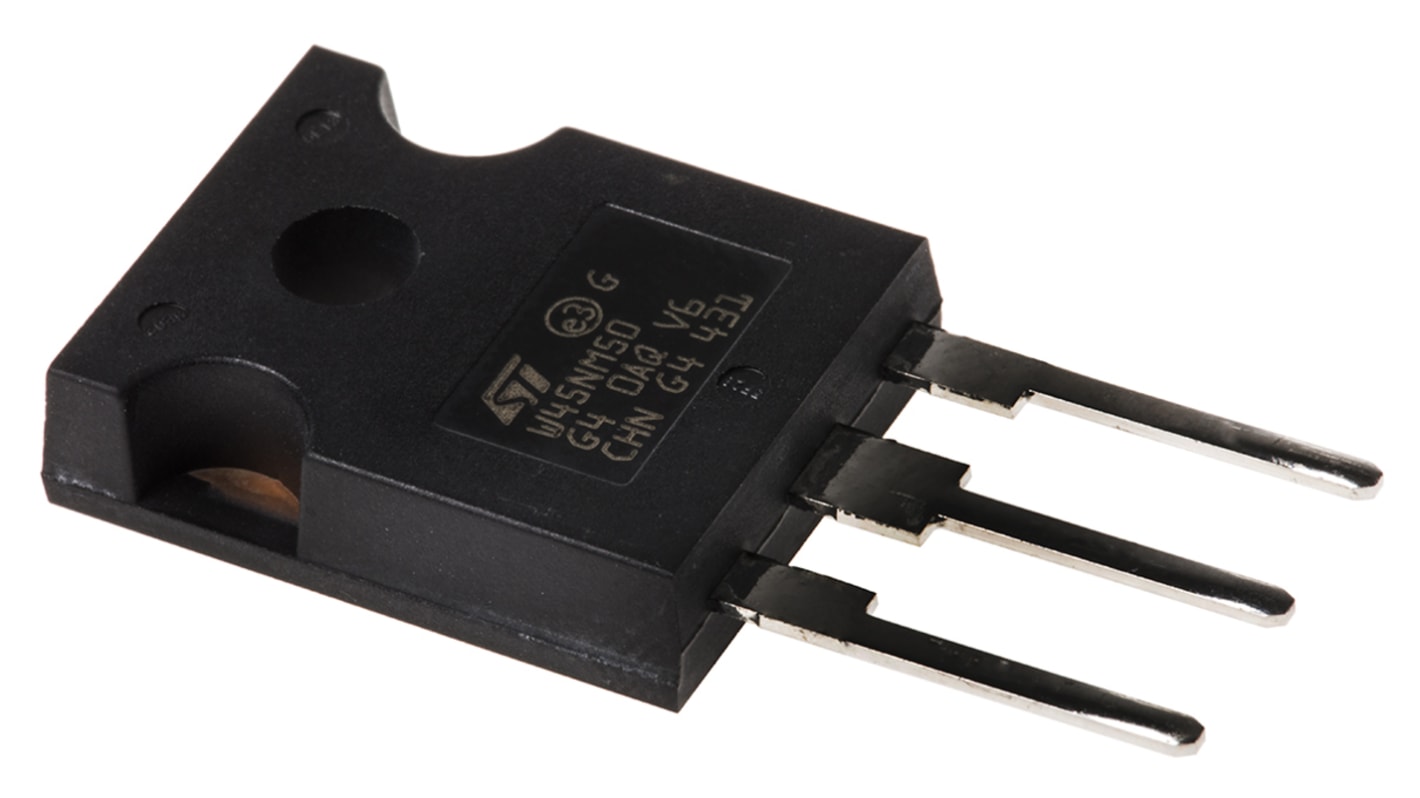

STMicroelectronics MDmesh N-Channel MOSFET, 45 A, 500 V, 3-Pin TO-247 STW45NM50
- RS Stock No.:
- 419-2440
- Mfr. Part No.:
- STW45NM50
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£10.09
(exc. VAT)
£12.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 68 unit(s) ready to ship
- Plus 60 unit(s) shipping from 31 December 2025
- Plus 30 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £10.09 |
| 10 - 24 | £9.12 |
| 25 - 99 | £8.71 |
| 100 - 499 | £7.20 |
| 500 + | £6.36 |
*price indicative
- RS Stock No.:
- 419-2440
- Mfr. Part No.:
- STW45NM50
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 45 A | |
| Maximum Drain Source Voltage | 500 V | |
| Series | MDmesh | |
| Package Type | TO-247 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 100 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 5V | |
| Minimum Gate Threshold Voltage | 3V | |
| Maximum Power Dissipation | 417 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -30 V, +30 V | |
| Transistor Material | Si | |
| Width | 5.15mm | |
| Typical Gate Charge @ Vgs | 87 nC @ 10 V | |
| Maximum Operating Temperature | +150 °C | |
| Number of Elements per Chip | 1 | |
| Length | 15.75mm | |
| Minimum Operating Temperature | -65 °C | |
| Height | 20.15mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 45 A | ||
Maximum Drain Source Voltage 500 V | ||
Series MDmesh | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 100 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 5V | ||
Minimum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 417 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -30 V, +30 V | ||
Transistor Material Si | ||
Width 5.15mm | ||
Typical Gate Charge @ Vgs 87 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Number of Elements per Chip 1 | ||
Length 15.75mm | ||
Minimum Operating Temperature -65 °C | ||
Height 20.15mm | ||
N-Channel MDmesh™, 500V, STMicroelectronics
MOSFET Transistors, STMicroelectronics
