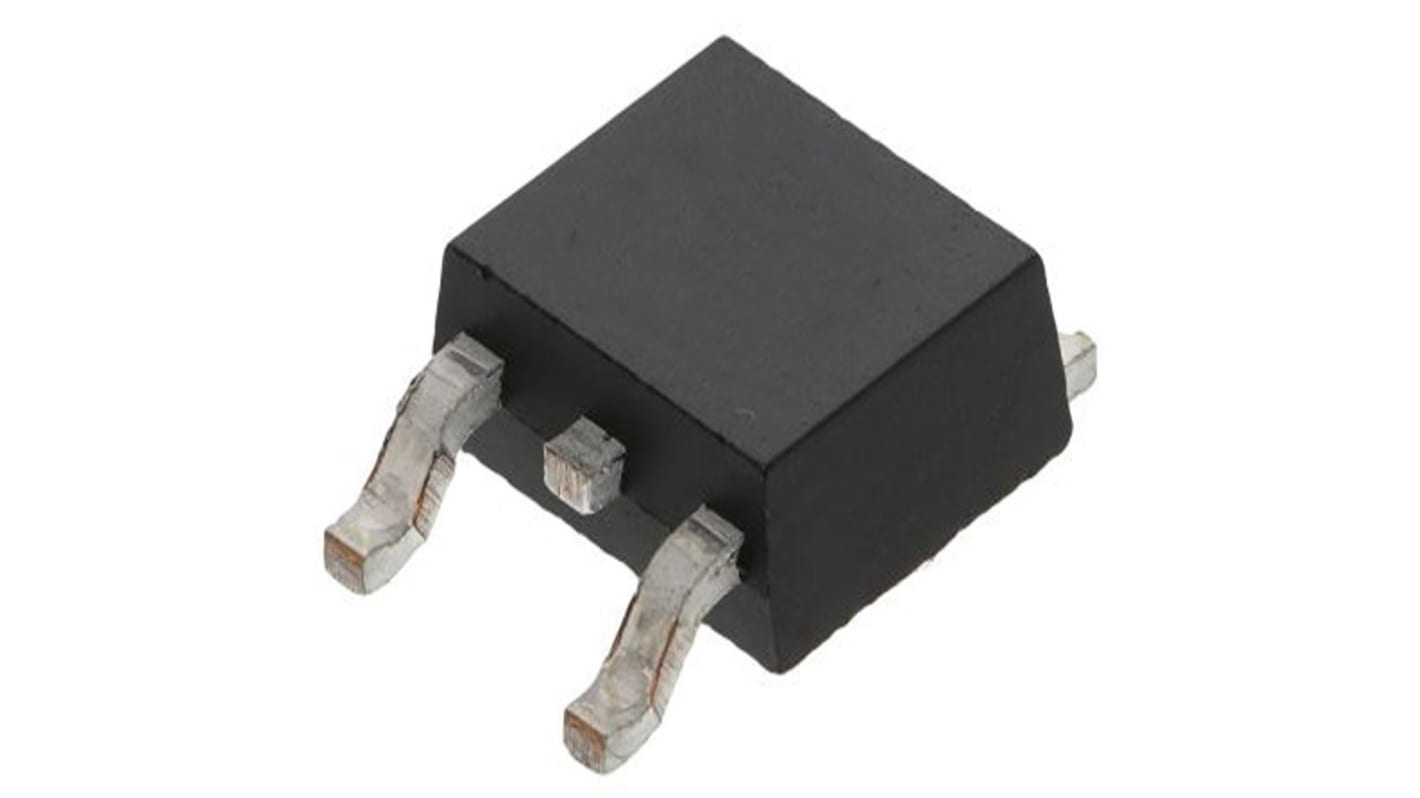

Infineon SPD04P10PL G Type P-Channel MOSFET, -4.2 A, 100 V Enhancement, 3-Pin PG-TO252-3 SPD04P10PLGBTMA1
- RS Stock No.:
- 273-7550
- Mfr. Part No.:
- SPD04P10PLGBTMA1
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£637.50
(exc. VAT)
£765.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.255 | £637.50 |
*price indicative
- RS Stock No.:
- 273-7550
- Mfr. Part No.:
- SPD04P10PLGBTMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | -4.2A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Series | SPD04P10PL G | |
| Package Type | PG-TO252-3 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 850mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 38W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 0.94V | |
| Typical Gate Charge Qg @ Vgs | 12nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 40mm | |
| Width | 40 mm | |
| Standards/Approvals | AEC Q101, RoHS | |
| Height | 1.5mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id -4.2A | ||
Maximum Drain Source Voltage Vds 100V | ||
Series SPD04P10PL G | ||
Package Type PG-TO252-3 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 850mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 38W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 0.94V | ||
Typical Gate Charge Qg @ Vgs 12nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Length 40mm | ||
Width 40 mm | ||
Standards/Approvals AEC Q101, RoHS | ||
Height 1.5mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon MOSFET is a P channel power MOSFET. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on state resistance and figure of merit characteristics. It is a qualified according to AEC Q101.
Logic level
RoHS compliant
Enhancement mode
Pb free lead plating
