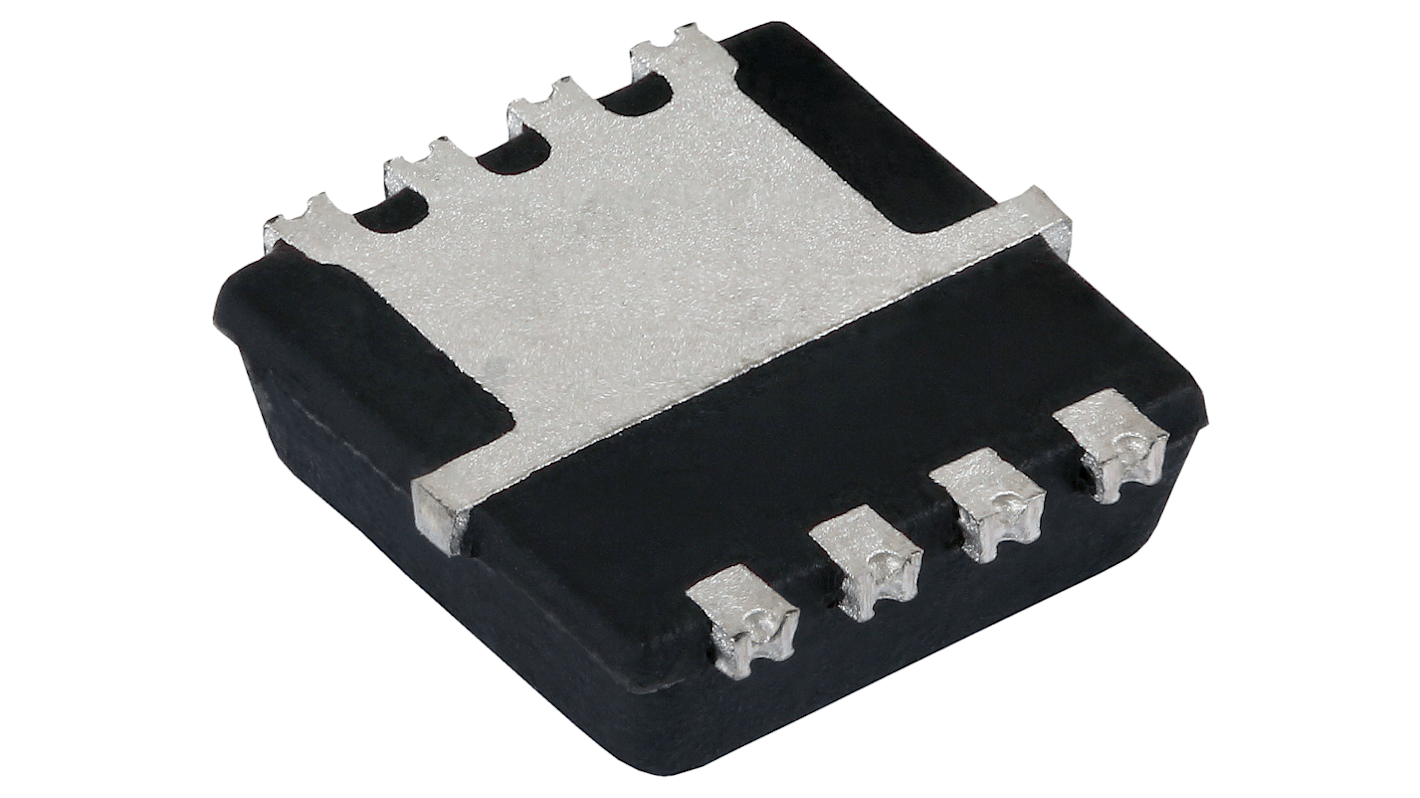

Vishay SQS Type N-Channel MOSFET, 16 A, 80 V Enhancement, 8-Pin PowerPAK 1212-8W SQSA82CENW-T1_GE3
- RS Stock No.:
- 268-8374
- Mfr. Part No.:
- SQSA82CENW-T1_GE3
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£480.00
(exc. VAT)
£570.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.16 | £480.00 |
*price indicative
- RS Stock No.:
- 268-8374
- Mfr. Part No.:
- SQSA82CENW-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 16A | |
| Maximum Drain Source Voltage Vds | 80V | |
| Package Type | PowerPAK 1212-8W | |
| Series | SQS | |
| Mount Type | PCB | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.073Ω | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.8V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 22nC | |
| Maximum Power Dissipation Pd | 27W | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Length | 3.3mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 16A | ||
Maximum Drain Source Voltage Vds 80V | ||
Package Type PowerPAK 1212-8W | ||
Series SQS | ||
Mount Type PCB | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.073Ω | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.8V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 22nC | ||
Maximum Power Dissipation Pd 27W | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Length 3.3mm | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The Vishay automotive N channel TrenchFET power MOSFET is lead Pb and halogen free device. That is single configuration MOSFET and surface mount type device.
AEC Q101 qualified
ROHS compliant
