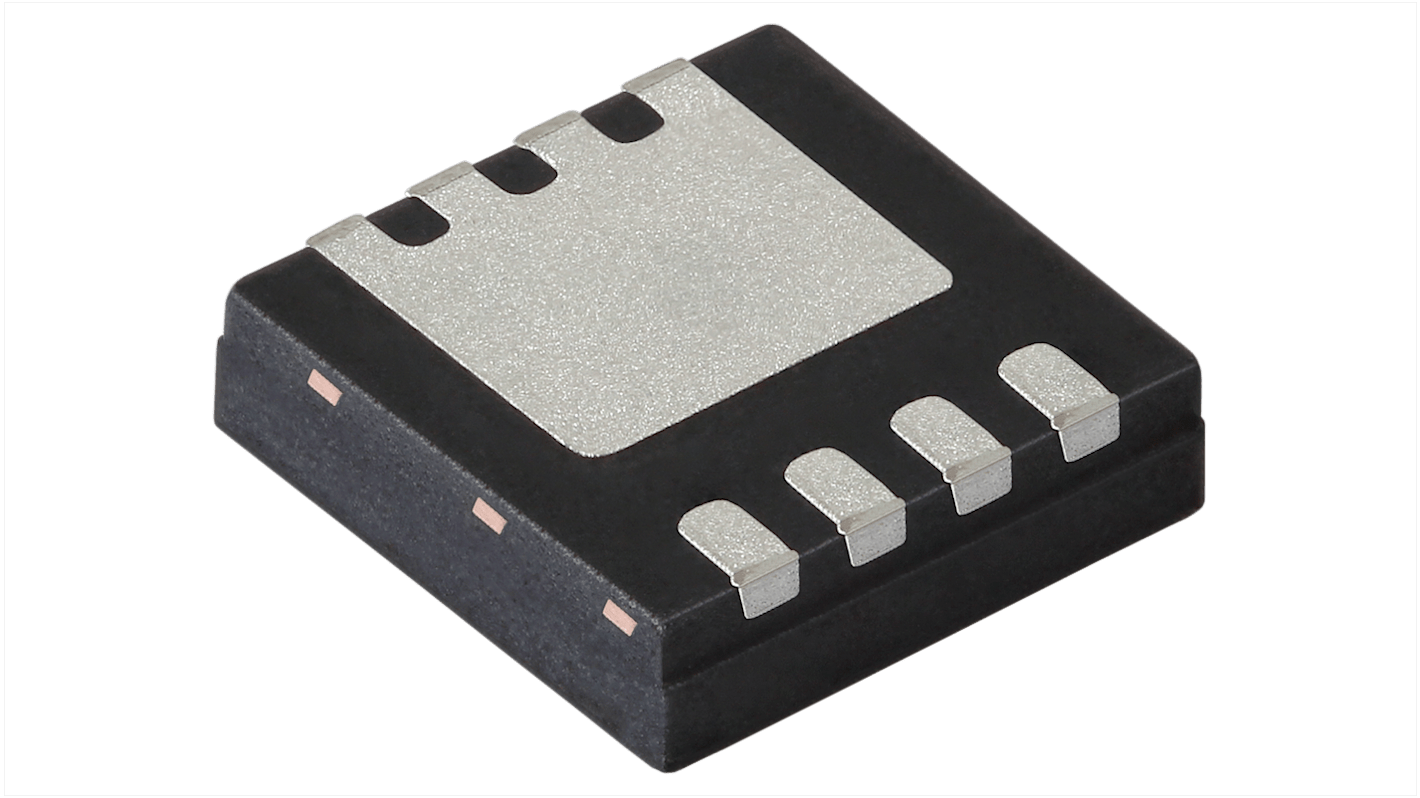

Vishay SQS Type N-Channel MOSFET, 214 A, 40 V Enhancement, 8-Pin PowerPAK 1212-8SLW SQS140ELNW-T1_GE3
- RS Stock No.:
- 268-8370
- Mfr. Part No.:
- SQS140ELNW-T1_GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.50
(exc. VAT)
£9.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.75 | £7.50 |
| 50 - 90 | £0.734 | £7.34 |
| 100 - 240 | £0.585 | £5.85 |
| 250 + | £0.574 | £5.74 |
*price indicative
- RS Stock No.:
- 268-8370
- Mfr. Part No.:
- SQS140ELNW-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 214A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | PowerPAK 1212-8SLW | |
| Series | SQS | |
| Mount Type | PCB | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.0043Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Maximum Power Dissipation Pd | 197W | |
| Typical Gate Charge Qg @ Vgs | 57nC | |
| Forward Voltage Vf | 0.82V | |
| Maximum Operating Temperature | 175°C | |
| Length | 3.3mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 214A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type PowerPAK 1212-8SLW | ||
Series SQS | ||
Mount Type PCB | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.0043Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Maximum Power Dissipation Pd 197W | ||
Typical Gate Charge Qg @ Vgs 57nC | ||
Forward Voltage Vf 0.82V | ||
Maximum Operating Temperature 175°C | ||
Length 3.3mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The Vishay automotive N channel TrenchFET generation 4 power MOSFET is lead Pb and halogen free device with single configuration MOSFET and It is independent of operating temperature. It has wettable flank terminals.
Low thermal resistance
AEC Q101 qualified
ROHS compliant
