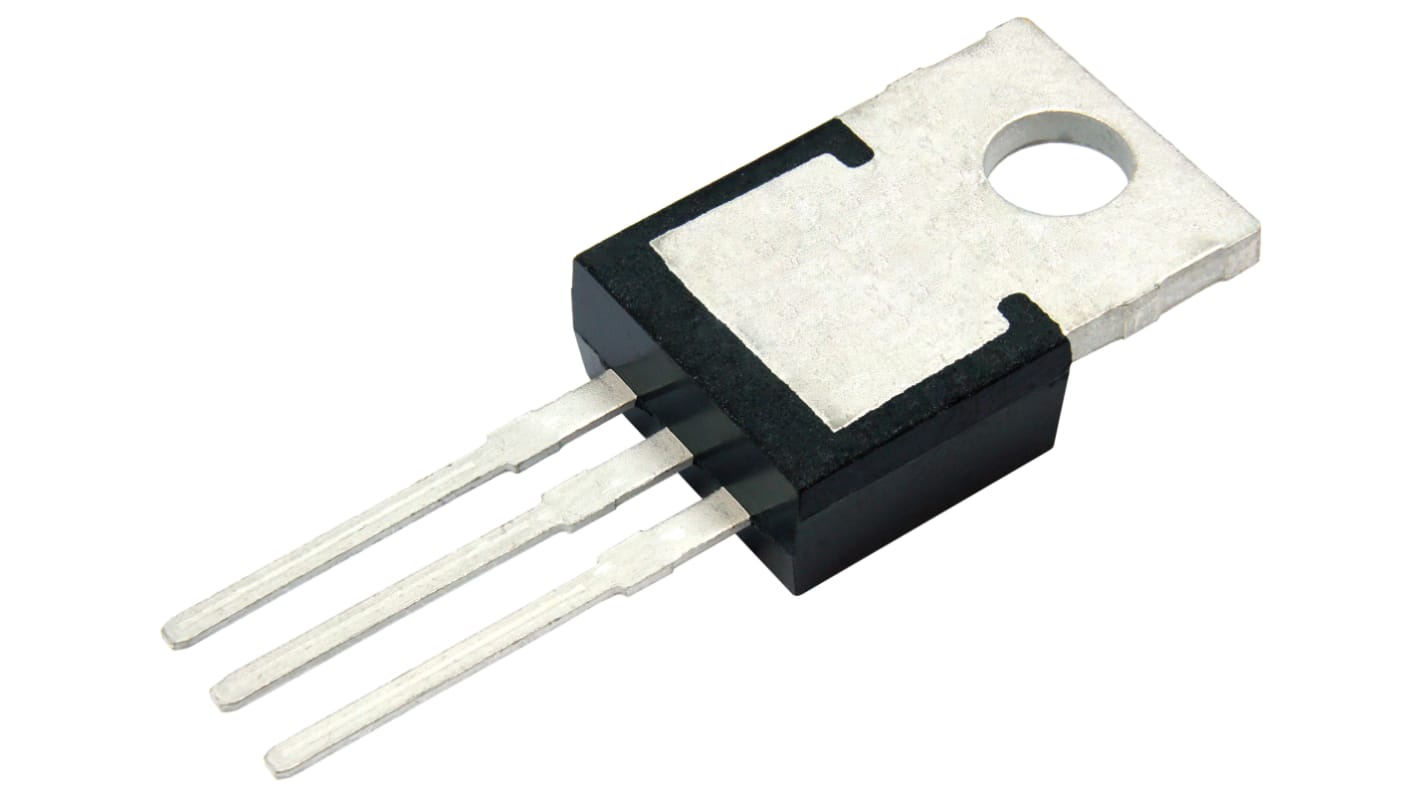

Vishay SIHP Type N-Channel MOSFET, 22 A, 650 V Enhancement, 3-Pin TO-220AB SIHP150N60E-GE3
- RS Stock No.:
- 268-8320
- Mfr. Part No.:
- SIHP150N60E-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.06
(exc. VAT)
£9.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,000 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £4.03 | £8.06 |
| 10 - 18 | £3.64 | £7.28 |
| 20 - 98 | £3.57 | £7.14 |
| 100 - 498 | £2.98 | £5.96 |
| 500 + | £2.53 | £5.06 |
*price indicative
- RS Stock No.:
- 268-8320
- Mfr. Part No.:
- SIHP150N60E-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 22A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | TO-220AB | |
| Series | SIHP | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.158Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 179W | |
| Maximum Gate Source Voltage Vgs | ±30 V | |
| Typical Gate Charge Qg @ Vgs | 36nC | |
| Forward Voltage Vf | 1.2V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 22A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type TO-220AB | ||
Series SIHP | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.158Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 179W | ||
Maximum Gate Source Voltage Vgs ±30 V | ||
Typical Gate Charge Qg @ Vgs 36nC | ||
Forward Voltage Vf 1.2V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Vishay E series power MOSFET with fast body diode and 4 generation E series technology which has reduced switching and conduction losses and it is used in applications such as switch mode power supplies, server power supplies and power factor correcti
Low effective capacitance
Avalanche energy rated
Low figure of merit
