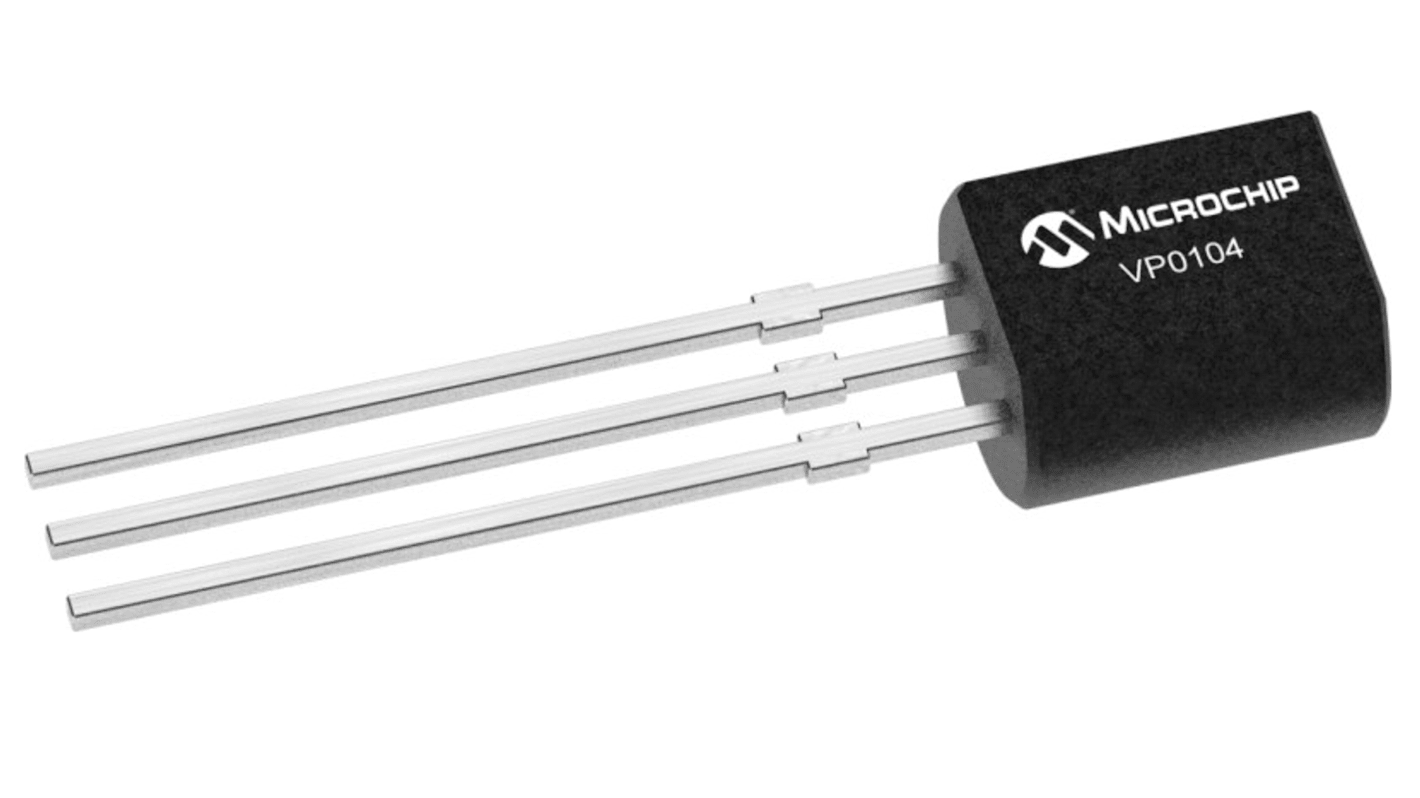

Microchip VP0104 Type P-Channel MOSFET, -500 mA, 40 V MOSFET, 3-Pin TO-92

View all MOSFETs

Subtotal (1 bag of 1000 units)*

£570.00

(exc. VAT)

£680.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
1000 +£0.57£570.00

*price indicative

RS Stock No.:
264-8948
Mfr. Part No.:
VP0104N3-G
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Channel Type

Type P

Product Type

MOSFET

Maximum Continuous Drain Current Id

-500mA

Maximum Drain Source Voltage Vds

40V

Package Type

TO-92

Series

VP0104

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

8Ω

Channel Mode

MOSFET

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

1W

Maximum Gate Source Voltage Vgs

20 V

Forward Voltage Vf

2V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Automotive Standard

No

The Microchip P-Channel low threshold, enhancement-mode (normally-off) MOSFET utilizes a vertical DMOS structure and well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally-induced secondary breakdown. Vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where very low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired.

Free from secondary breakdown

Low power drive requirement

Ease of paralleling

Low CISS and fast switching speeds

Excellent thermal stability

Integral source-drain diode

High input impedance and high gain
