Infineon IPT Type N-Channel MOSFET, 174 A, 150 V, 7-Pin TO-263 IPTG044N15NM5ATMA1
- RS Stock No.:
- 260-2676
- Mfr. Part No.:
- IPTG044N15NM5ATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£4.63
(exc. VAT)
£5.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 150 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.63 |
| 10 - 24 | £4.17 |
| 25 - 49 | £3.89 |
| 50 - 99 | £3.66 |
| 100 + | £3.38 |
*price indicative
- RS Stock No.:
- 260-2676
- Mfr. Part No.:
- IPTG044N15NM5ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 174A | |
| Maximum Drain Source Voltage Vds | 150V | |
| Series | IPT | |
| Package Type | TO-263 | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 4.4mΩ | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 300W | |
| Typical Gate Charge Qg @ Vgs | 71nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 0.82V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS, IEC 61249-2-21 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 174A | ||
Maximum Drain Source Voltage Vds 150V | ||
Series IPT | ||
Package Type TO-263 | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 4.4mΩ | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 300W | ||
Typical Gate Charge Qg @ Vgs 71nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 0.82V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS, IEC 61249-2-21 | ||
Automotive Standard No | ||

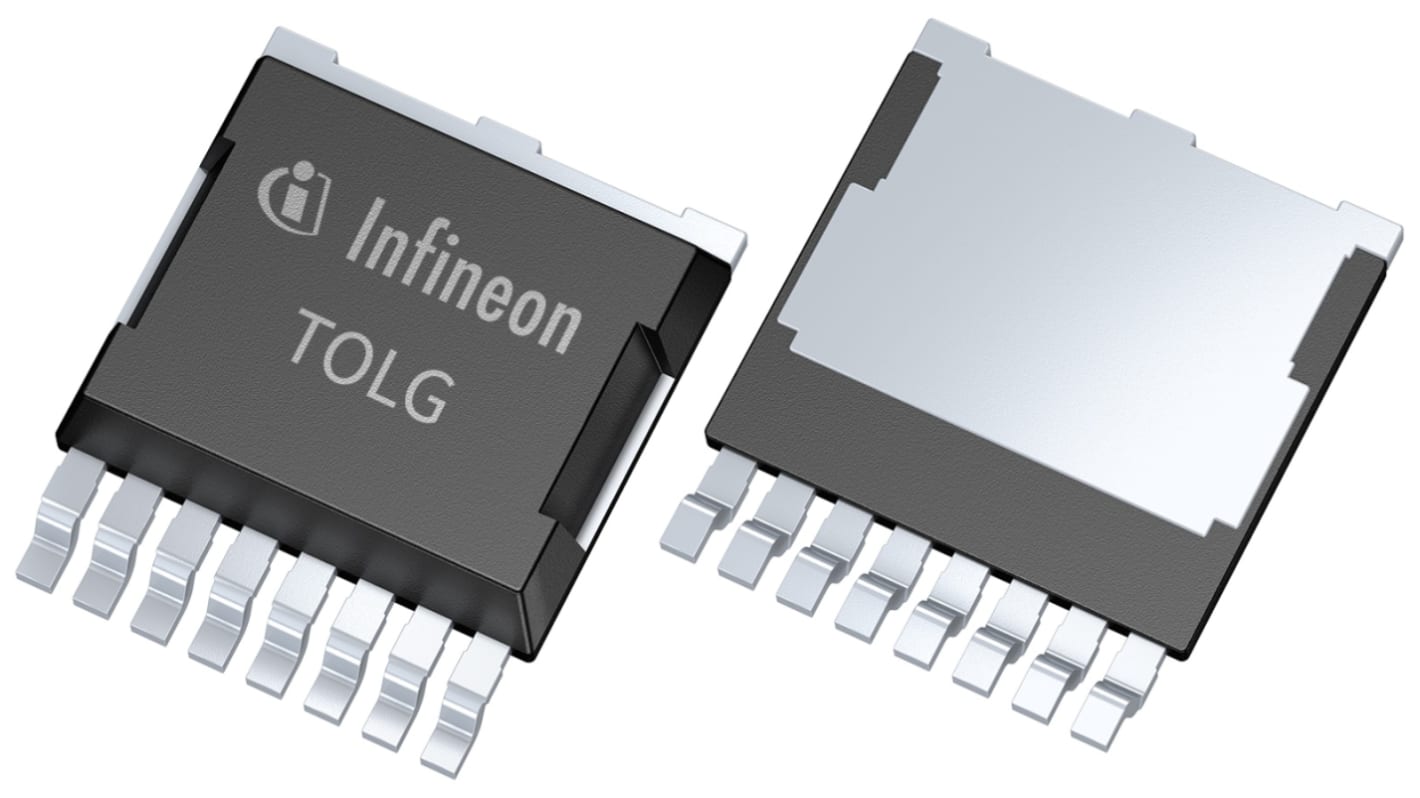

The Infineon MOSFET comes in the improved TO leaded package with gullwing leads having a compatible footprint to TO leadless which allows excellent electrical performance. It is a best in class technology with a high current rating.
Low ringing and voltage overshoot
High performance capability
High system reliability
High efficiency and lower EMI
Optimized board utilization
