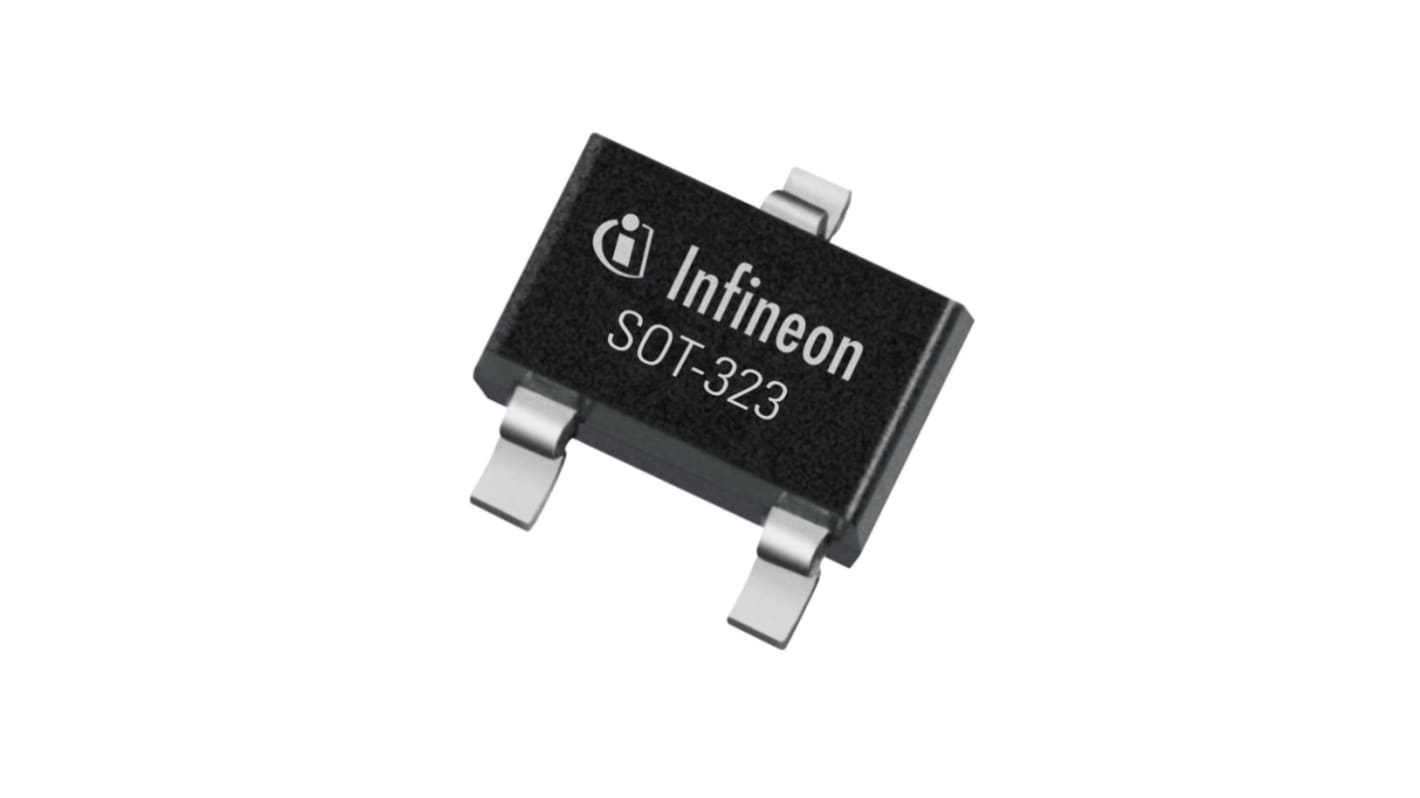

Infineon SN7002W Type N-Channel MOSFET, 0.23 A, 60 V Enhancement, 3-Pin SOT-323 SN7002WH6327XTSA1

RS Stock No.:: 259-1573
Mfr. Part No.:: SN7002WH6327XTSA1
Brand:: Infineon

Infineon SN7002W Type N-Channel MOSFET, 0.23 A, 60 V Enhancement, 3-Pin SOT-323 SN7002WH6327XTSA1

Bulk discount available

Subtotal (1 pack of 25 units)*

£1.65

(exc. VAT)

£1.975

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2,225 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 - 225	£0.066	£1.65
250 - 600	£0.033	£0.83
625 - 1225	£0.03	£0.75
1250 - 2475	£0.026	£0.65
2500 +	£0.024	£0.60

*price indicative

RS Stock No.:: 259-1573
Mfr. Part No.:: SN7002WH6327XTSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	0.23A
	Maximum Drain Source Voltage Vds	60V
	Package Type	SOT-323
	Series	SN7002W
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	5Ω
	Channel Mode	Enhancement
	Maximum Gate Source Voltage Vgs	20 V
	Minimum Operating Temperature	-55°C
	Maximum Power Dissipation Pd	0.5W
	Typical Gate Charge Qg @ Vgs	1nC
	Forward Voltage Vf	1.2V
	Maximum Operating Temperature	150°C
	Standards/Approvals	IEC61249-2-21, Q101
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 0.23A
	Maximum Drain Source Voltage Vds 60V
	Package Type SOT-323
	Series SN7002W
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 5Ω
	Channel Mode Enhancement
	Maximum Gate Source Voltage Vgs 20 V
	Minimum Operating Temperature -55°C
	Maximum Power Dissipation Pd 0.5W
	Typical Gate Charge Qg @ Vgs 1nC
	Forward Voltage Vf 1.2V
	Maximum Operating Temperature 150°C
	Standards/Approvals IEC61249-2-21, Q101
	Automotive Standard No

Datasheet - SN7002WH6327XTSA1

The Infineon N-Channel small signal MOSFET 60 V in SOT-323 package, Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N- and P-channel small signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages with unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED Lighting, ADAS, body control units, SMPS and motor control.

Enhancement mode

Logic level

Avalanche rated

Fast switching

Dv/dt rated

Pb-free lead-plating

RoHS compliant, Halogen-free

Qualified according to automotive standards

PPAP capable
