MPN

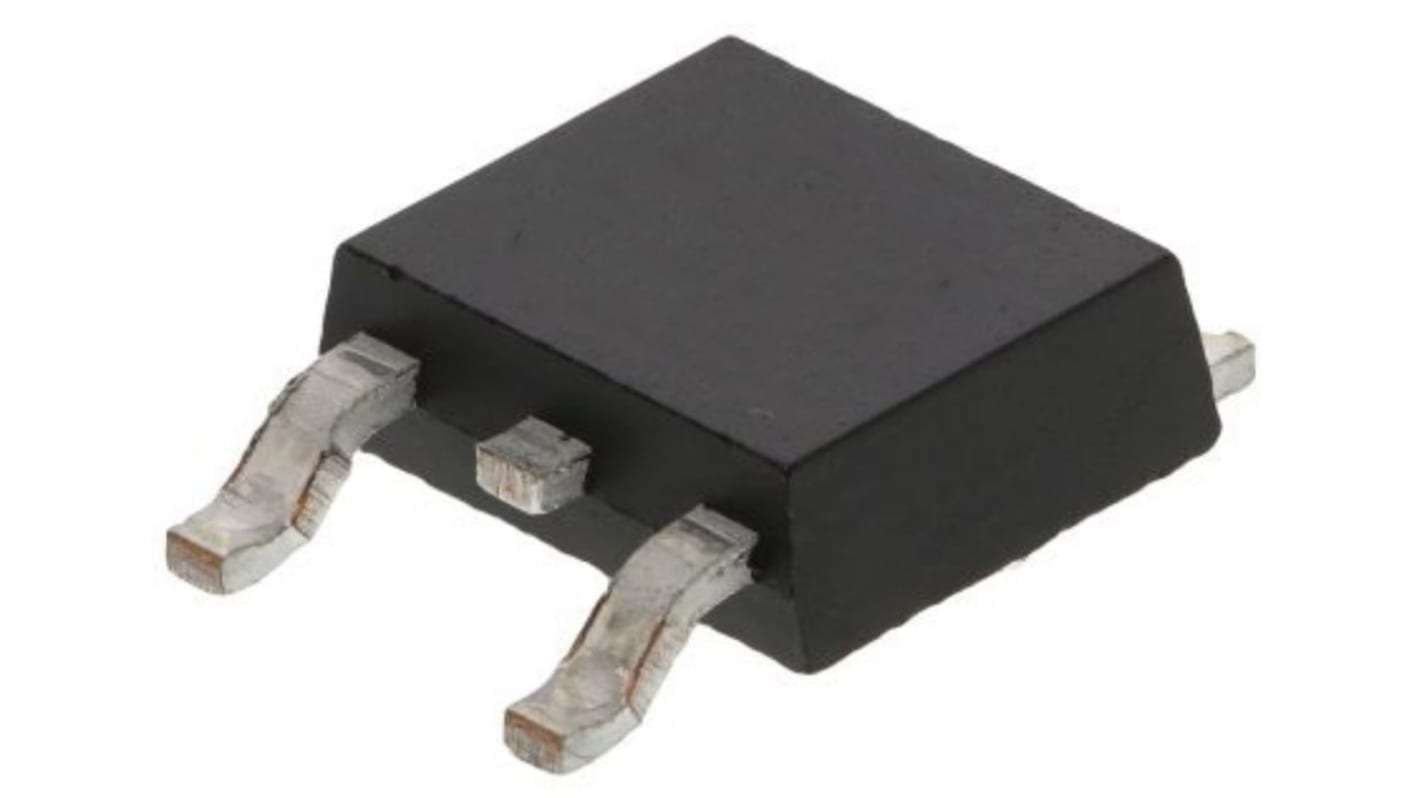

Infineon SPD15P10P Type P-Channel MOSFET, 15 A, 100 V Enhancement, 3-Pin TSDSON

RS Stock No.:: 258-7097
Mfr. Part No.:: SPD15P10PGBTMA1
Brand:: Infineon

Infineon SPD15P10P Type P-Channel MOSFET, 15 A, 100 V Enhancement, 3-Pin TSDSON

Subtotal (1 reel of 2500 units)*

£1,235.00

(exc. VAT)

£1,482.50

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 25 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2500 +	£0.494	£1,235.00

*price indicative

RS Stock No.:: 258-7097
Mfr. Part No.:: SPD15P10PGBTMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type P
	Maximum Continuous Drain Current Id	15A
	Maximum Drain Source Voltage Vds	100V
	Package Type	TSDSON
	Series	SPD15P10P
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	0.24Ω
	Channel Mode	Enhancement
	Maximum Gate Source Voltage Vgs	20 V
	Typical Gate Charge Qg @ Vgs	37nC
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	1.35V
	Maximum Operating Temperature	175°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type P
	Maximum Continuous Drain Current Id 15A
	Maximum Drain Source Voltage Vds 100V
	Package Type TSDSON
	Series SPD15P10P
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 0.24Ω
	Channel Mode Enhancement
	Maximum Gate Source Voltage Vgs 20 V
	Typical Gate Charge Qg @ Vgs 37nC
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 1.35V
	Maximum Operating Temperature 175°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - SPD15P10PGBTMA1

The Infineon SIPMOS power transistor belongs highly innovative OptiMOS family P channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on state resistance and figure of merit characteristics.

Enhancement mode

Avalanche rated

Pb free lead plating

RoHS compliant
