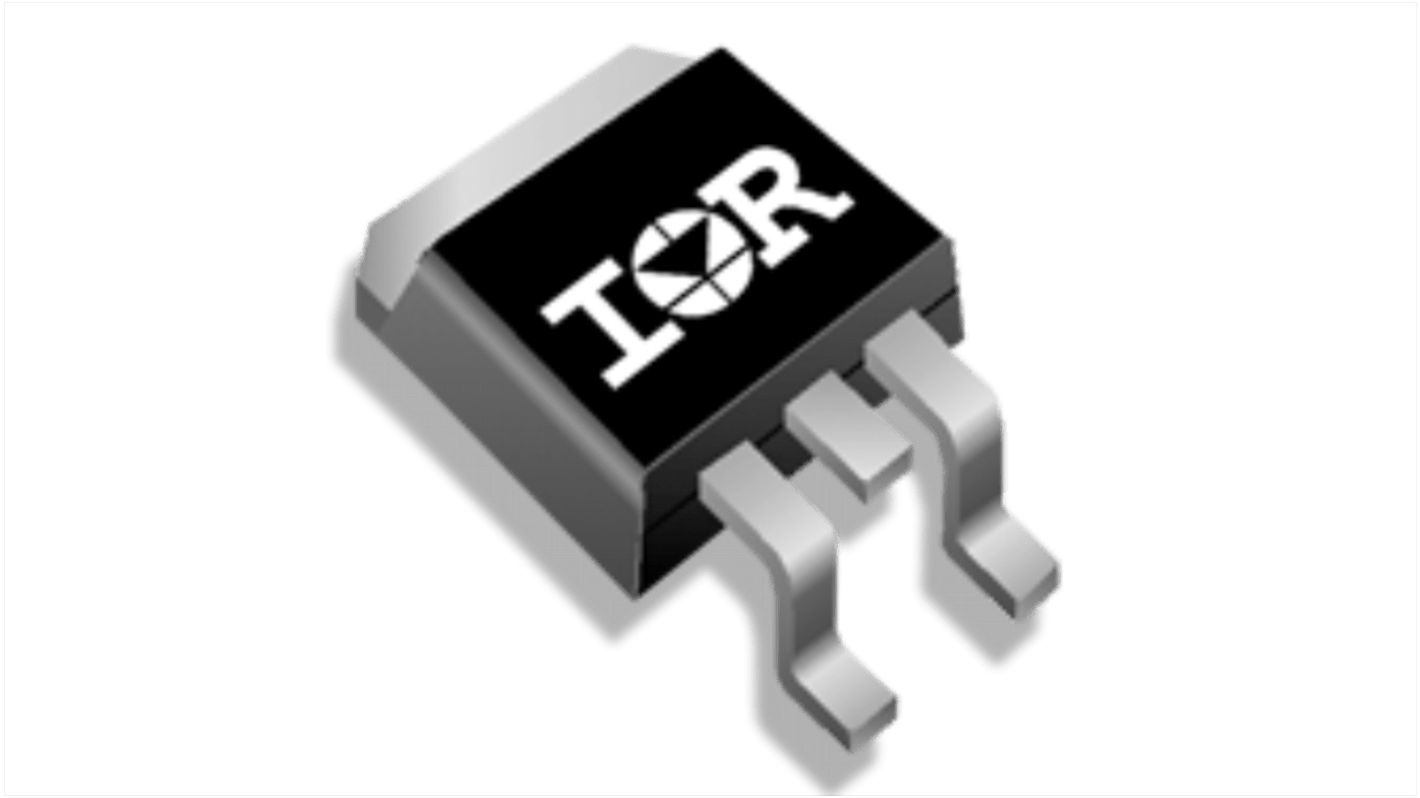

Infineon HEXFET Type N-Channel MOSFET, 195 A, 60 V TO-263 IRFS7530TRLPBF
- RS Stock No.:
- 257-9438
- Mfr. Part No.:
- IRFS7530TRLPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.24
(exc. VAT)
£7.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 582 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £3.12 | £6.24 |
| 20 - 48 | £2.74 | £5.48 |
| 50 - 98 | £2.595 | £5.19 |
| 100 - 198 | £2.40 | £4.80 |
| 200 + | £2.22 | £4.44 |
*price indicative
- RS Stock No.:
- 257-9438
- Mfr. Part No.:
- IRFS7530TRLPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 195A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | HEXFET | |
| Package Type | TO-263 | |
| Maximum Drain Source Resistance Rds | 2mΩ | |
| Maximum Power Dissipation Pd | 375W | |
| Typical Gate Charge Qg @ Vgs | 274nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 195A | ||
Maximum Drain Source Voltage Vds 60V | ||
Series HEXFET | ||
Package Type TO-263 | ||
Maximum Drain Source Resistance Rds 2mΩ | ||
Maximum Power Dissipation Pd 375W | ||
Typical Gate Charge Qg @ Vgs 274nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Infineon IRFS series is the 60V single n channel HEXFET power mosfet in a D2 Pak package.
Optimized for broadest availability from distribution partners
Product qualification according to JEDEC standard
Optimized for 10 V gate drive voltage (called normal level)
Silicon optimized for applications switching below 100 kHz
Softer body diode compared to previous silicon generation
Industry standard surface mount power package
Capable of being wave soldered
