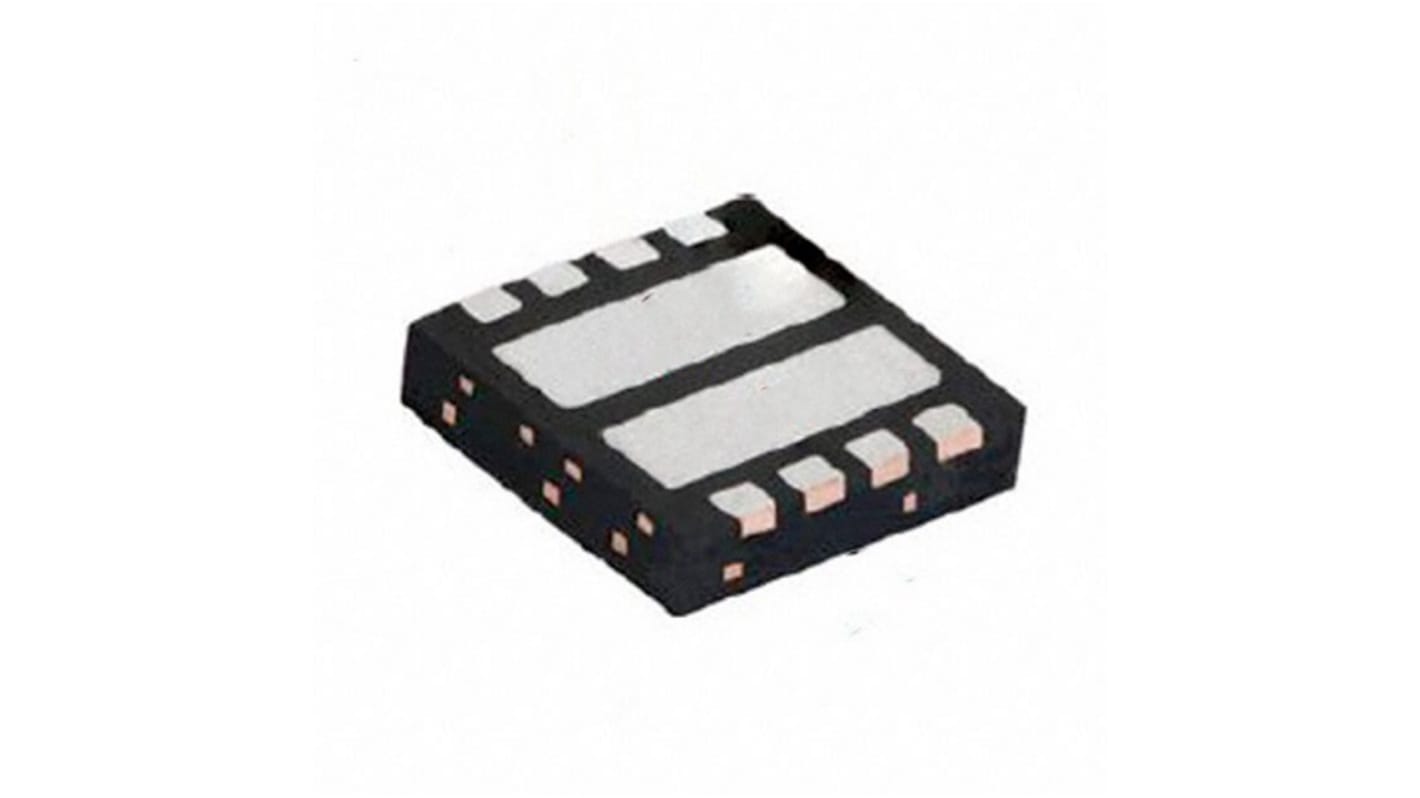

Vishay SIZ260DT Type N-Channel MOSFET, 8.9 A, 80 V, 8-Pin PowerPAIR 3 x 3S
- RS Stock No.:
- 256-7436
- Mfr. Part No.:
- SIZ260DT-T1-GE3
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£1,248.00
(exc. VAT)
£1,497.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.416 | £1,248.00 |
*price indicative
- RS Stock No.:
- 256-7436
- Mfr. Part No.:
- SIZ260DT-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 8.9A | |
| Maximum Drain Source Voltage Vds | 80V | |
| Series | SIZ260DT | |
| Package Type | PowerPAIR 3 x 3S | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.0247Ω | |
| Maximum Power Dissipation Pd | 33W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Typical Gate Charge Qg @ Vgs | 6.3nC | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | +150°C | |
| Standards/Approvals | RoHS | |
| Length | 3.3mm | |
| Width | 3.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 8.9A | ||
Maximum Drain Source Voltage Vds 80V | ||
Series SIZ260DT | ||
Package Type PowerPAIR 3 x 3S | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.0247Ω | ||
Maximum Power Dissipation Pd 33W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Typical Gate Charge Qg @ Vgs 6.3nC | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature +150°C | ||
Standards/Approvals RoHS | ||
Length 3.3mm | ||
Width 3.3mm | ||
Automotive Standard No | ||
Vishay SIZ260DT Series MOSFET, 80V Drain Source Voltage, 8.9A Continuous Drain Current - SIZ260DT-T1-GE3
This MOSFET is a surface-mount N-channel transistor designed for switching and power management in industrial electronic systems. It operates at elevated temperatures and supports moderate continuous currents, making it suitable for Compact assemblies where thermal resilience and voltage handling are required.
Features and Benefits:
• 80V drain rating enables use in medium-voltage circuits
• 8.9A continuous current allows sustained load driving
• 0.0247Ω Rds(on) reduces conduction losses
• 6.3nC typical gate charge supports fast switching
• 33W power dissipation permits higher power handling
• ±20V gate tolerance accommodates varied gate-drive ranges
• 8.9A continuous current allows sustained load driving
• 0.0247Ω Rds(on) reduces conduction losses
• 6.3nC typical gate charge supports fast switching
• 33W power dissipation permits higher power handling
• ±20V gate tolerance accommodates varied gate-drive ranges
Applications
• Suitable for DC-DC converters in automation equipment
• Ideal for motor-driver stages in industrial drives
• Used for power switching in control modules
• Can be used for load switching in battery management
• Suitable for Compact SMD power assemblies in electrical systems
• Ideal for motor-driver stages in industrial drives
• Used for power switching in control modules
• Can be used for load switching in battery management
• Suitable for Compact SMD power assemblies in electrical systems
What temperature extremes can it withstand during operation?
It is rated to operate down to -55°C and up to +150°C, allowing use in environments with wide thermal fluctuations.
How does the package form affect PCB layout?
The PowerPAIR 3x3S SMD package with eight pins concentrates power and signal pins for short thermal paths and straightforward thermal-pad design.
Is this device appropriate for automotive applications?
It is not specified as meeting automotive standards, so it should not be selected where formal automotive-grade approval is required.
What are the benefits of the device’s pin count for circuit design?
The eight-pin arrangement separates gate and source connections from power paths, simplifying gate-drive routing and thermal management.
