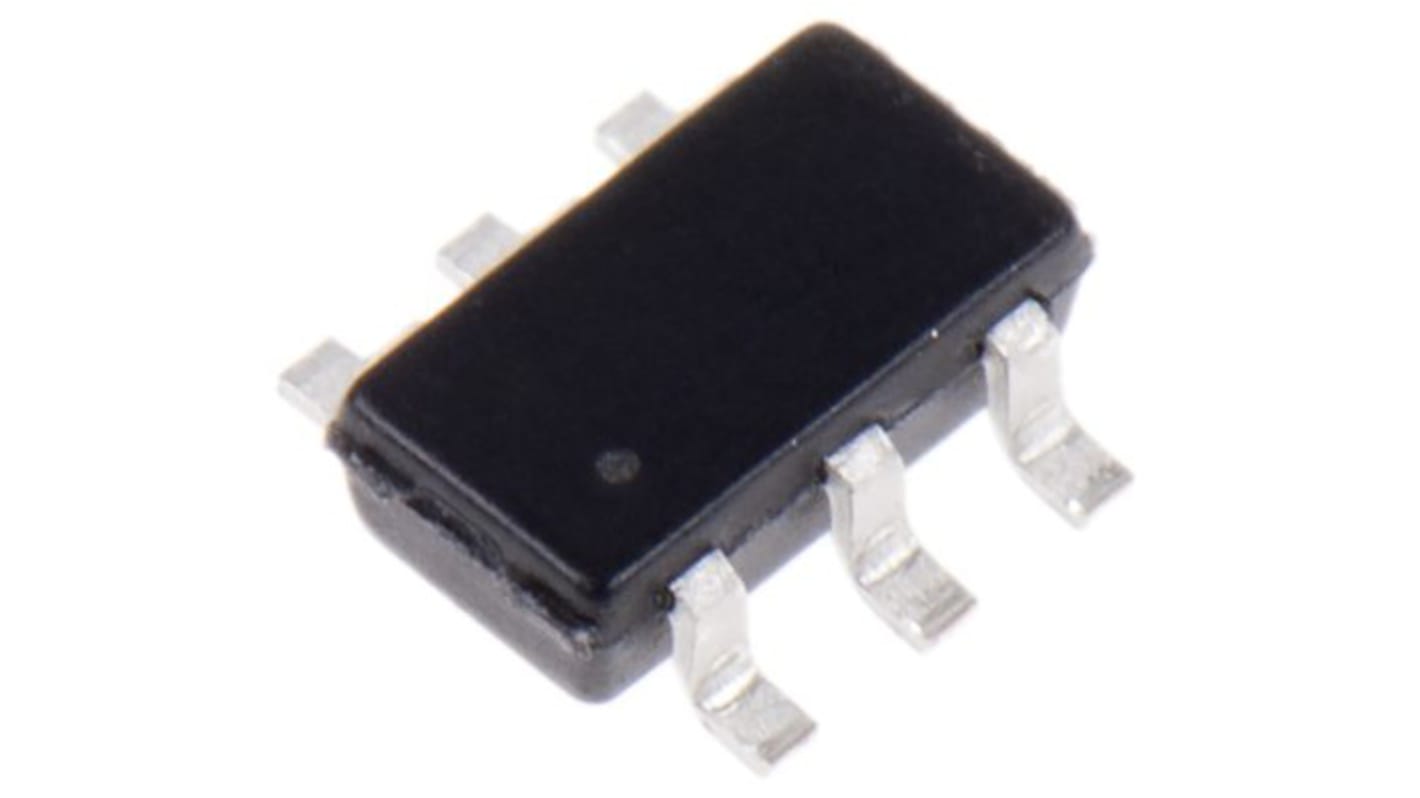

Vishay Type P-Channel MOSFET, 4 A, 20 V, 6-Pin TSOP-6

Name: Vishay Type P-Channel MOSFET, 4 A, 20 V, 6-Pin TSOP-6
Brand: Vishay
SKU: 256-7354
Price: 0.09 GBP
Availability: BackOrder

Subtotal (1 reel of 3000 units)*

£231.00

(exc. VAT)

£276.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.077	£231.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Product Type	MOSFET
	Channel Type	Type P
	Maximum Continuous Drain Current Id	4A
	Maximum Drain Source Voltage Vds	20V
	Package Type	TSOP-6
	Mount Type	Surface
	Pin Count	6
	Maximum Drain Source Resistance Rds	1.4Ω
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	175°C
	Height	1.1mm
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Vishay
	Product Type MOSFET
	Channel Type Type P
	Maximum Continuous Drain Current Id 4A
	Maximum Drain Source Voltage Vds 20V
	Package Type TSOP-6
	Mount Type Surface
	Pin Count 6
	Maximum Drain Source Resistance Rds 1.4Ω
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 175°C
	Height 1.1mm
	Standards/Approvals No
	Automotive Standard No

The Vishay Semiconductor P-channel 20 V (D-S) mosfet maximum under steady state conditions is 110 °C, W.

TrenchFET power mosfet

PWM optimized

100 % Rg tested
