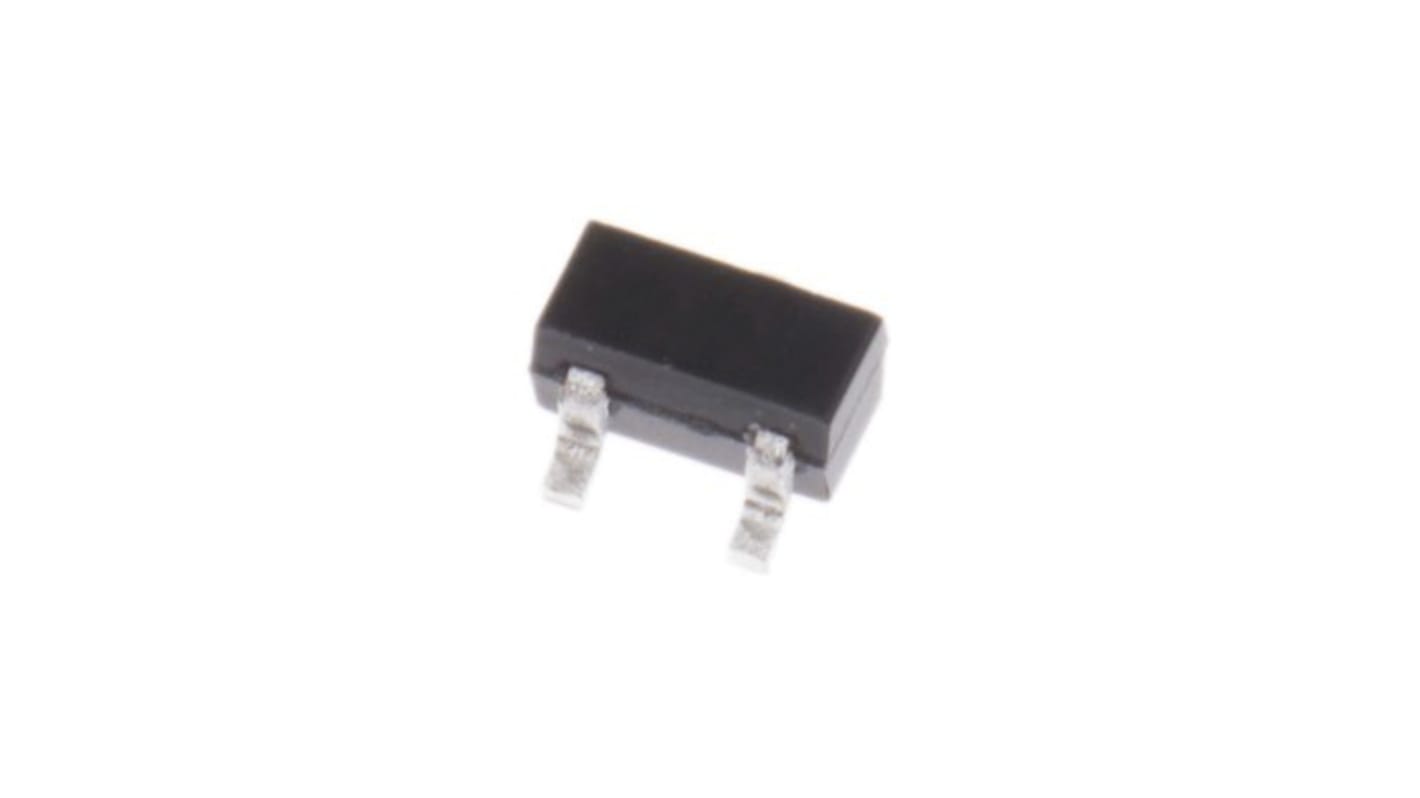

Vishay Type P, Type P-Channel MOSFET, 140 mA, 20 V SC-75A SI1031R-T1-GE3
- RS Stock No.:
- 256-7337
- Mfr. Part No.:
- SI1031R-T1-GE3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 256-7337
- Mfr. Part No.:
- SI1031R-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type P, Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current (Id) | 140 mA | |
| Maximum Drain Source Voltage (Vds) | 20 V | |
| Package Type | SC-75A | |
| Automotive Standard | No | |
| Forward Voltage (Vf) | 1.2 V | |
| Maximum Drain Source Resistance (Rds) | 1.4 Ω | |
| Maximum Operating Temperature | 175 °C | |
| Minimum Operating Temperature | -55 °C | |
| Mount Type | Surface | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type P, Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current (Id) 140 mA | ||
Maximum Drain Source Voltage (Vds) 20 V | ||
Package Type SC-75A | ||
Automotive Standard No | ||
Forward Voltage (Vf) 1.2 V | ||
Maximum Drain Source Resistance (Rds) 1.4 Ω | ||
Maximum Operating Temperature 175 °C | ||
Minimum Operating Temperature -55 °C | ||
Mount Type Surface | ||
Standards/Approvals No | ||
The Vishay Semiconductor P-channel 20 V 140mA (Ta) 250mW (Ta) surface mount SC-75A halogen-free according to IEC 61249-2-21 definition.
High-side switching
Low on-resistance 8 ohm
Low threshold 0.9 V
Fast switching speed 45 ns
TrenchFET power mosfets 1.5 V rated
ESD protected 2000 V
Compliant to RoHS directive 2002/95/EC
