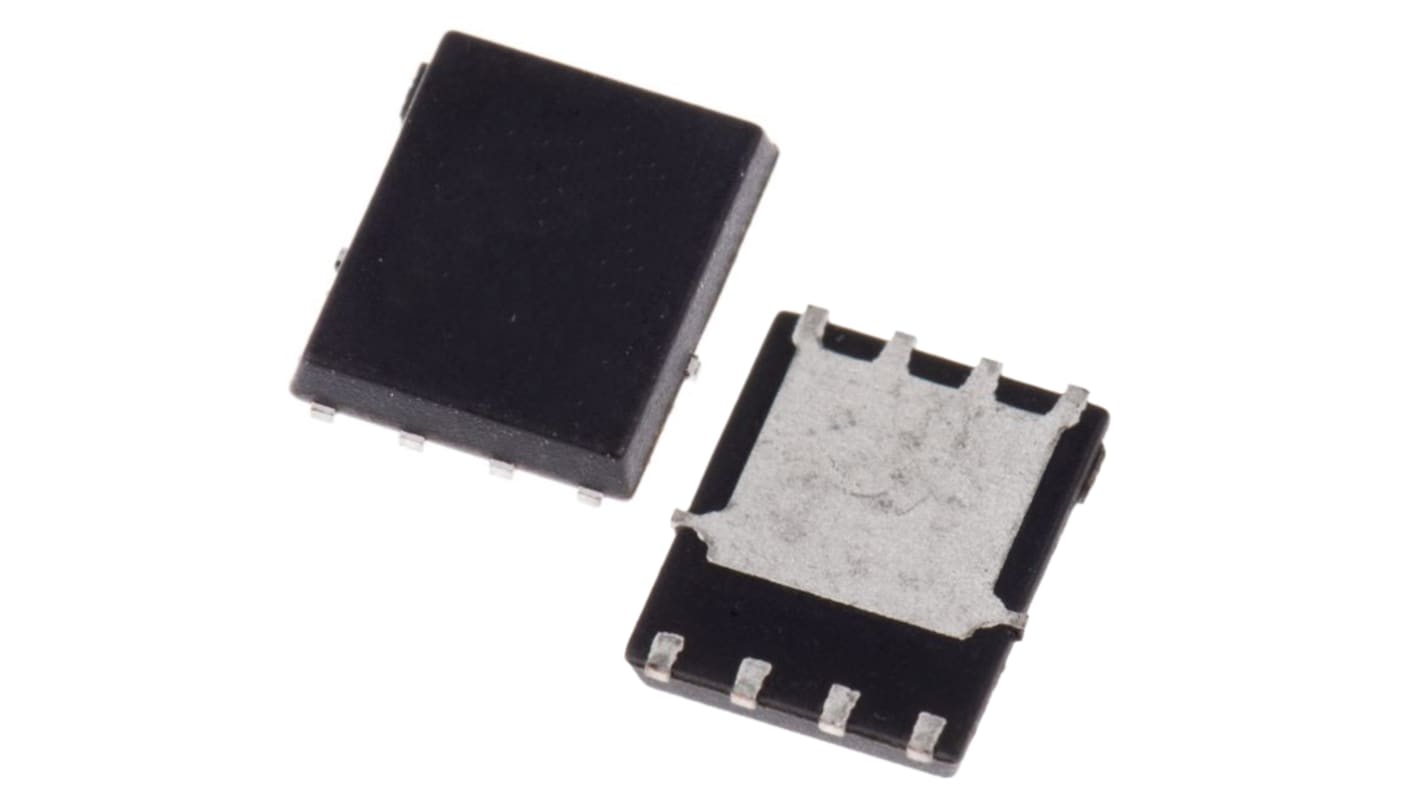

Vishay Type N-Channel MOSFET, 51 A, 60 V Depletion, 8-Pin PowerPAK SO-8 SIR4604LDP-T1-GE3

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 5 units)*

£6.23

(exc. VAT)

£7.475

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 6,025 unit(s), ready to ship
Units
Per unit
Per Pack*
5 - 45£1.246£6.23
50 - 245£1.17£5.85
250 - 495£1.06£5.30
500 - 1245£0.998£4.99
1250 +£0.934£4.67

*price indicative

Packaging Options:
RS Stock No.:
252-0276
Mfr. Part No.:
SIR4604LDP-T1-GE3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

51A

Maximum Drain Source Voltage Vds

60V

Package Type

PowerPAK SO-8

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

0.01mΩ

Channel Mode

Depletion

Forward Voltage Vf

1.1V

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

83W

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

56nC

Maximum Operating Temperature

175°C

Standards/Approvals

No

Width

5.15 mm

Length

6.15mm

Automotive Standard

AEC-Q101

The Vishay siliconix MOSFET product line includes a diverse range of advanced technologies. MOSFETs are transistor devices which are controlled by a capacitor. The field effect means that they are controlled by voltage. N-Channel MOSFETs contain additional electrons which are free to move around. They are a more popular channel type. N-Channel MOSFETs work when a positive charge is applied to the gate terminal.

TrenchFET Gen V power MOSFET

Very low RDS - Qg figure-of-merit (FOM)

Tuned for the lowest RDS - Qoss FOM

100 % Rg and UIS tested
