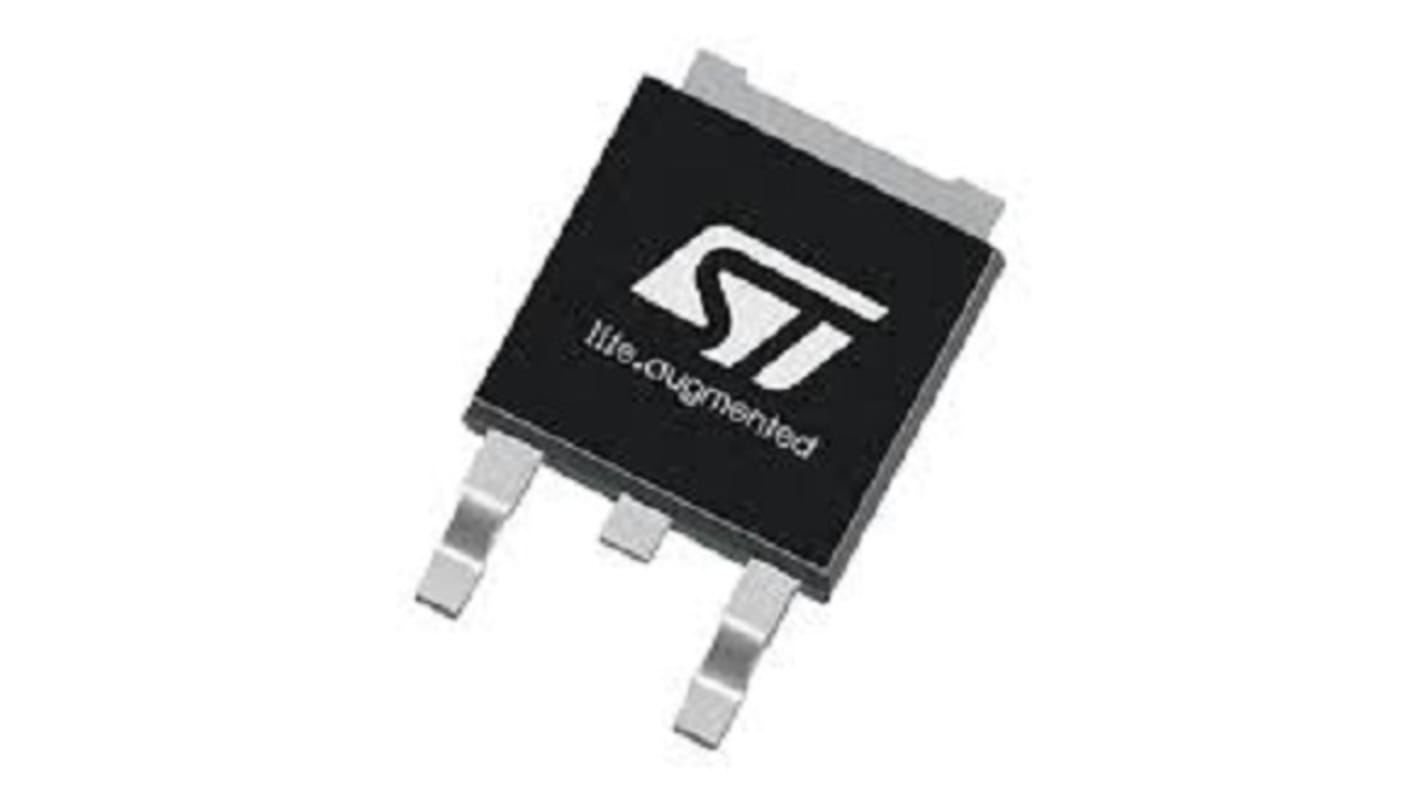

STMicroelectronics STD Type N-Channel MOSFET, 80 A, 35 V Enhancement, 3-Pin TO-252

View all MOSFETs

Subtotal (1 reel of 2500 units)*

£6,042.50

(exc. VAT)

£7,250.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£2.417£6,042.50

*price indicative

RS Stock No.:
249-6744
Mfr. Part No.:
STD80N240K6
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

80A

Maximum Drain Source Voltage Vds

35V

Package Type

TO-252

Series

STD

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

0.01mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

14nC

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

30 V

Maximum Power Dissipation Pd

70W

Forward Voltage Vf

1.1V

Maximum Operating Temperature

175°C

Standards/Approvals

UL

Width

6.6 mm

Height

2.4mm

Length

10.1mm

Automotive Standard

AEC-Q101

The STMicroelectronics is very high voltage N-channel Power MOSFET is designed using the ultimate mesh K6 technology based on super junction technology. The result is the best-in-class on-resistance per area and gate charge for applications requiring superior power density and high efficiency.

Worldwide best RDS(on) x area

Worldwide best FOM (figure of merit)

Ultra low gate charge

100% avalanche tested

Zener-protected
