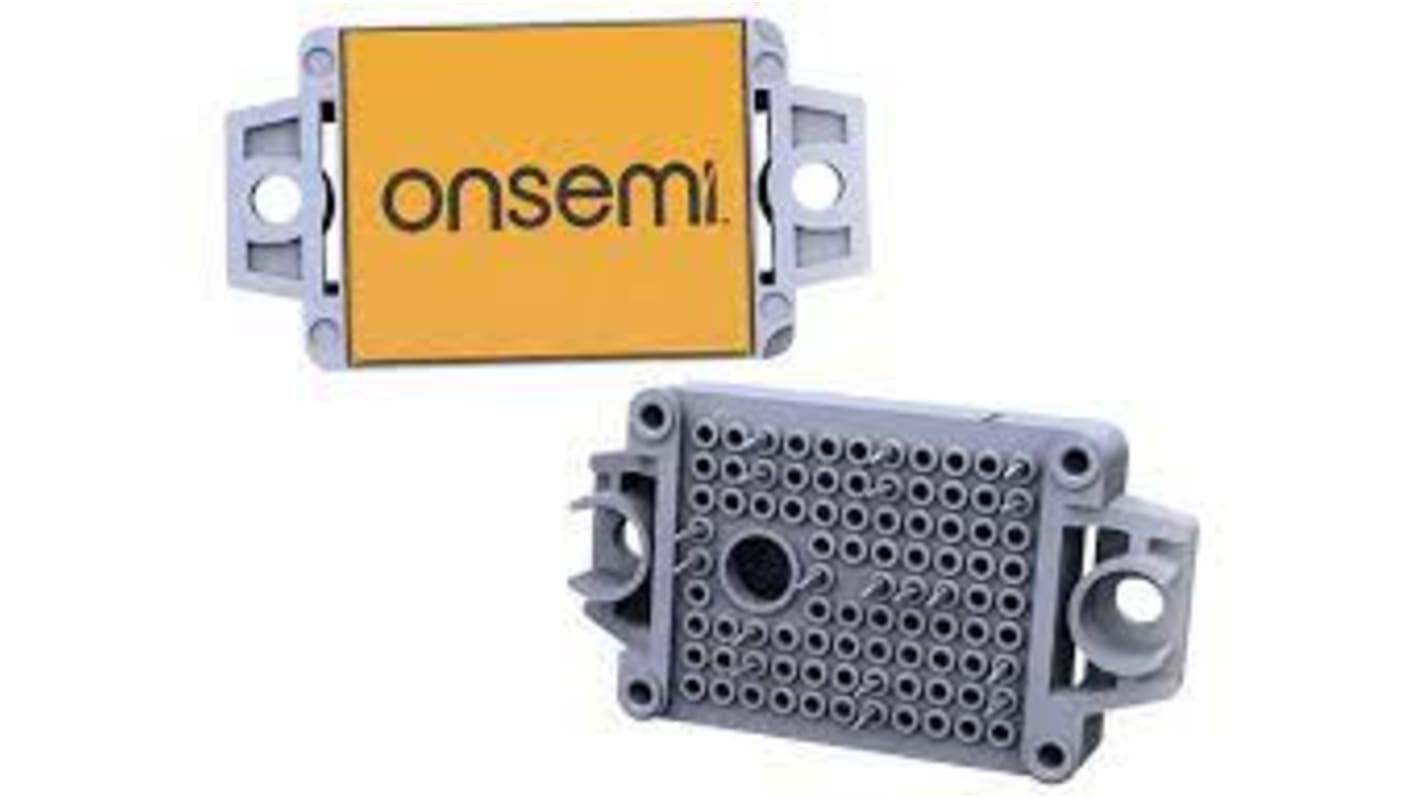

onsemi SiC Power Module, 114 A, 1200 V F1-2PACK NXH010P120MNF1PTG
- RS Stock No.:
- 248-5824
- Mfr. Part No.:
- NXH010P120MNF1PTG
- Brand:
- onsemi
Subtotal (1 unit)*
£156.07
(exc. VAT)
£187.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £156.07 |
*price indicative
- RS Stock No.:
- 248-5824
- Mfr. Part No.:
- NXH010P120MNF1PTG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Continuous Drain Current | 114 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Package Type | F1-2PACK | |
| Mounting Type | Through Hole | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Continuous Drain Current 114 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type F1-2PACK | ||
Mounting Type Through Hole | ||
SiC Module - EliteSiC 2-PACK Half Bridge Topology, 1200 V, 10 mohm SiC M1 MOSFET Press-fit pins, Thermal Interface Material
The ON Semiconductor is a power module containing an 10 mohm/1200 V SiC MOSFET half bridge and a thermistor in an F1 package.
10 mohm/1200 V SiC MOSFET half bridge
Options with pre−applied thermal interface material and without pre−applied TIM
Press−fit pins
Options with pre−applied thermal interface material and without pre−applied TIM
Press−fit pins
