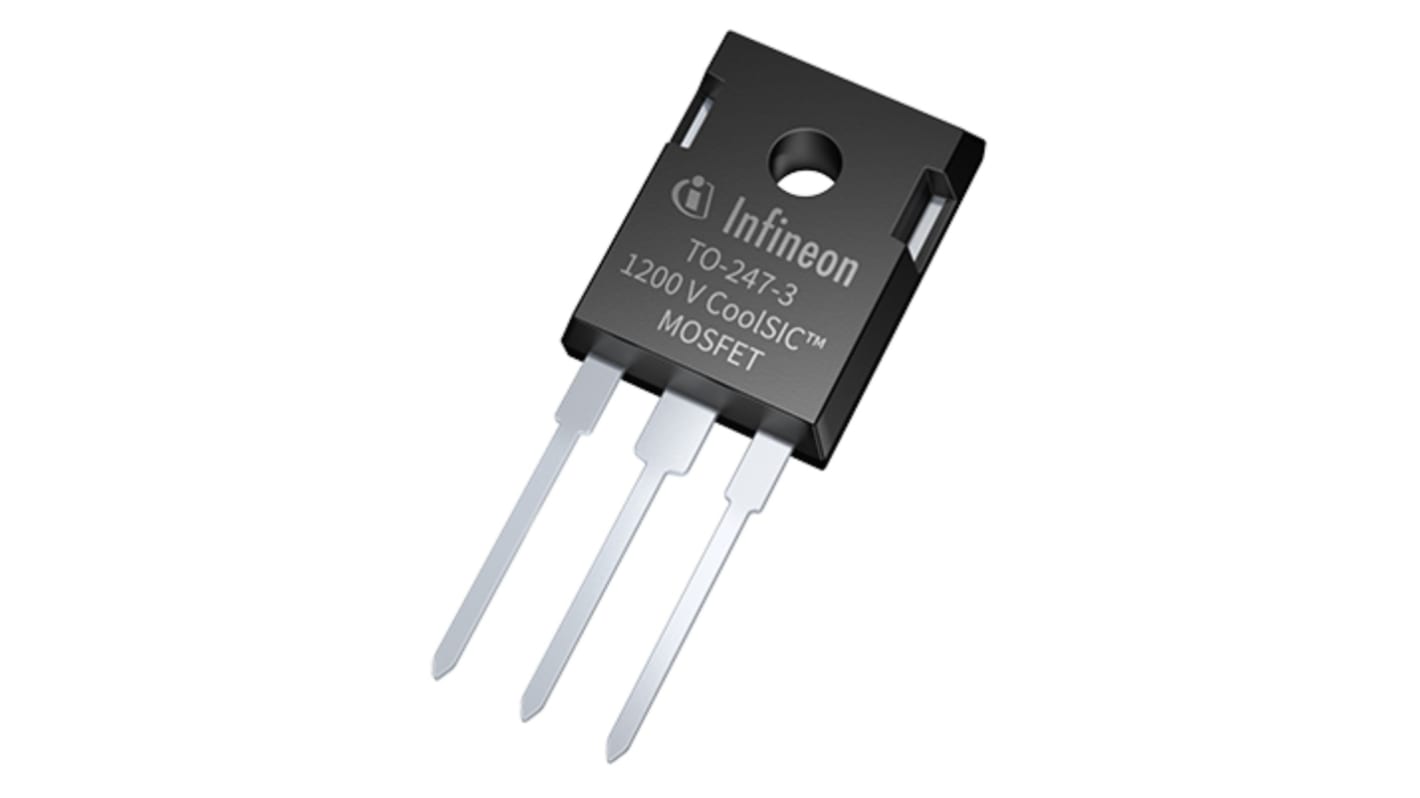

Infineon N-Channel MOSFET, 26 A, 1200 V, 3-Pin TO-247 IMW120R090M1HXKSA1
- RS Stock No.:
- 244-2922
- Mfr. Part No.:
- IMW120R090M1HXKSA1
- Brand:
- Infineon
Subtotal (1 tube of 240 units)*
£768.00
(exc. VAT)
£921.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 240 unit(s) ready to ship
- Plus 999,999,600 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
240 + | £3.20 | £768.00 |
*price indicative
- RS Stock No.:
- 244-2922
- Mfr. Part No.:
- IMW120R090M1HXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Channel Type | N | |
Maximum Continuous Drain Current | 26 A | |
Maximum Drain Source Voltage | 1200 V | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 26 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
The Infineon IMW120R090M1HXKSA1 MOSFET in TO247-3 package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability. In comparison to traditional silicon (Si) based switches like IGBTs and MOSFETs, the SiC MOSFET offers a series of advantages. These include, the lowest gate charge and device capacitance levels seen in 1200 V switches, no reverse recovery losses of the internal commutation proof body diode, temperature independent low switching losses, and threshold-free on-state characteristic.
Very low switching losses
Threshold-free on state characteristic
Wide gate-source voltage range
Benchmark gate threshold voltage, VGS(th) = 4.5V
0V turn-off gate voltage for easy and simple gate drive
Fully controllable dV/dt
Robust body diode for hard commutation
Temperature independent turn-off switching losses
Threshold-free on state characteristic
Wide gate-source voltage range
Benchmark gate threshold voltage, VGS(th) = 4.5V
0V turn-off gate voltage for easy and simple gate drive
Fully controllable dV/dt
Robust body diode for hard commutation
Temperature independent turn-off switching losses
