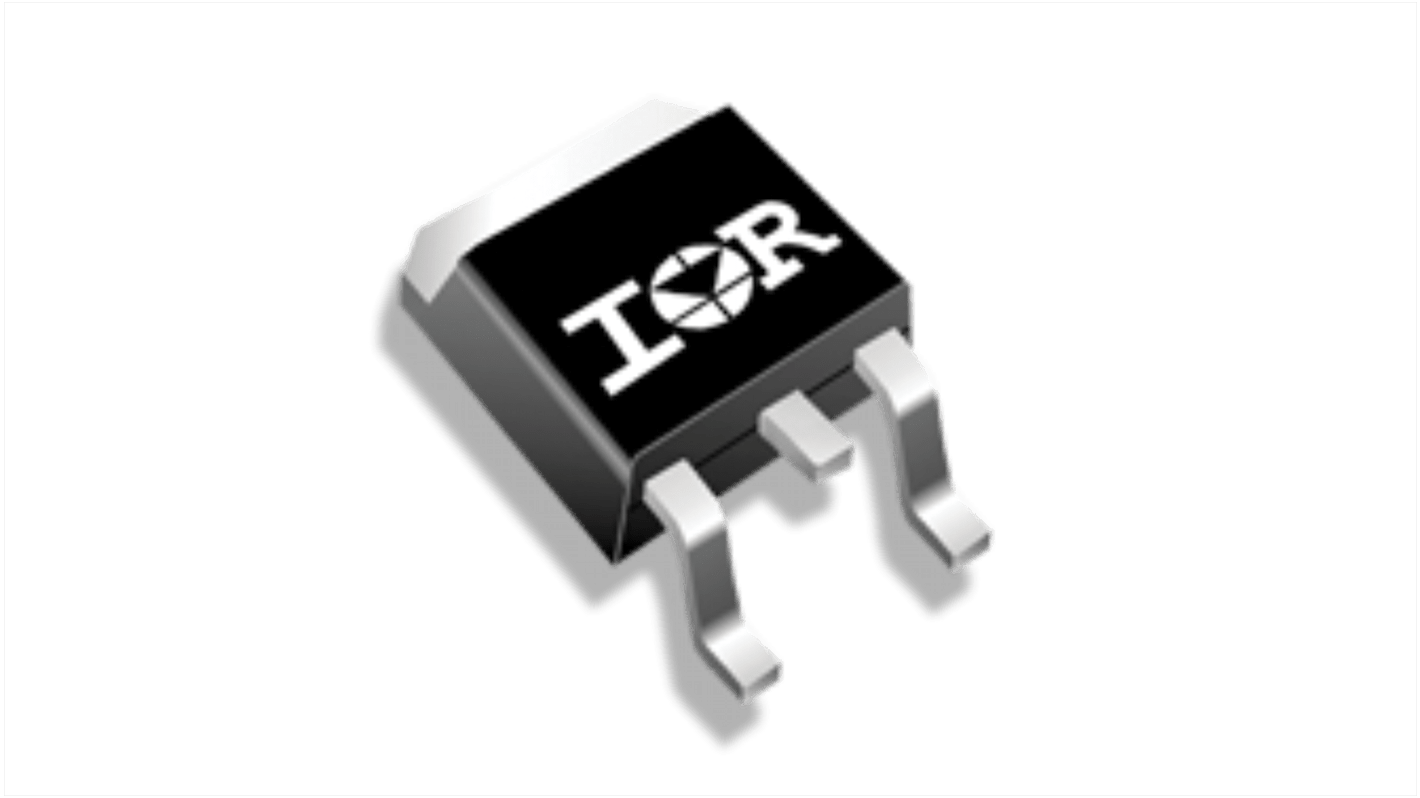

Infineon AUIRFS Type N-Channel MOSFET, 35 A, 100 V, 3-Pin TO-252 AUIRFR540ZTRL

RS Stock No.:: 244-2881
Mfr. Part No.:: AUIRFR540ZTRL
Brand:: Infineon

Infineon AUIRFS Type N-Channel MOSFET, 35 A, 100 V, 3-Pin TO-252 AUIRFR540ZTRL

Bulk discount available

Subtotal (1 pack of 2 units)*

£4.44

(exc. VAT)

£5.32

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 1,766 unit(s), ready to ship

Units	Per unit	Per Pack*
2 - 18	£2.22	£4.44
20 - 48	£2.00	£4.00
50 - 98	£1.865	£3.73
100 - 198	£1.73	£3.46
200 +	£1.60	£3.20

*price indicative

RS Stock No.:: 244-2881
Mfr. Part No.:: AUIRFR540ZTRL
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	35A
	Maximum Drain Source Voltage Vds	100V
	Package Type	TO-252
	Series	AUIRFS
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	3mΩ
	Maximum Gate Source Voltage Vgs	20 V
	Typical Gate Charge Qg @ Vgs	80nC
	Maximum Power Dissipation Pd	81W
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	1.3V
	Maximum Operating Temperature	175°C
	Standards/Approvals	RoHS
	Automotive Standard	AEC-Q101

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 35A
	Maximum Drain Source Voltage Vds 100V
	Package Type TO-252
	Series AUIRFS
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 3mΩ
	Maximum Gate Source Voltage Vgs 20 V
	Typical Gate Charge Qg @ Vgs 80nC
	Maximum Power Dissipation Pd 81W
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 1.3V
	Maximum Operating Temperature 175°C
	Standards/Approvals RoHS
	Automotive Standard AEC-Q101

Datasheet - AUIRFR540ZTRL

The Infineon AUIRFR540ZTRL specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .These features combine to make this design an extremely efficientand reliable device for use in Automotive applications and a widevariety of other applications.

Advanced process technology

Ultra-low on-resistance

175°C operating temperature

Fast switching

Repetitive avalanche allowed up to Tjmax

Lead free, RoHS compliant

Automotive qualified
