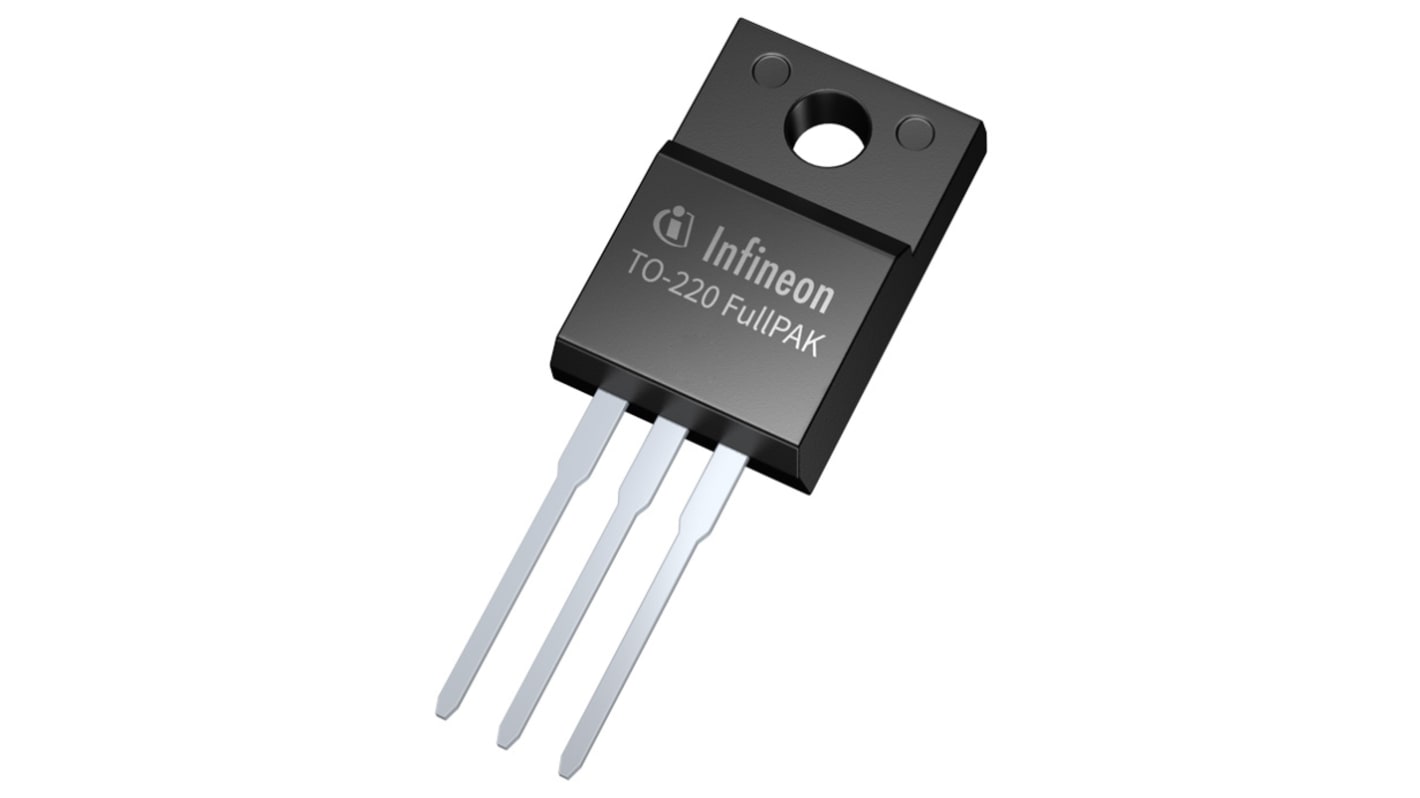

Infineon IPA Type N-Channel MOSFET, 84 A, 40 V P, 3-Pin TO-220 IPA029N06NXKSA1
- RS Stock No.:
- 242-0982
- Mfr. Part No.:
- IPA029N06NXKSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£5.08
(exc. VAT)
£6.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 400 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £2.54 | £5.08 |
| 20 - 48 | £2.285 | £4.57 |
| 50 - 98 | £2.135 | £4.27 |
| 100 - 198 | £1.98 | £3.96 |
| 200 + | £1.855 | £3.71 |
*price indicative
- RS Stock No.:
- 242-0982
- Mfr. Part No.:
- IPA029N06NXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 84A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | TO-220 | |
| Series | IPA | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 2.9mΩ | |
| Channel Mode | P | |
| Maximum Power Dissipation Pd | 81W | |
| Typical Gate Charge Qg @ Vgs | 80nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 84A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type TO-220 | ||
Series IPA | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 2.9mΩ | ||
Channel Mode P | ||
Maximum Power Dissipation Pd 81W | ||
Typical Gate Charge Qg @ Vgs 80nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Infineon is a N-Channel Power MOSFET is in TO-220-3 package form. The maximum continous drain current is 84 A and drain source voltage is 60 V.The operating temperature is from -55 °C to 175 °C. It provides industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.
Through hole mounting technology
38 W Power Dissipation
Highest system efficiency
Less paralleling required
Increased power density
System cost reduction
Very low voltage overshoot
