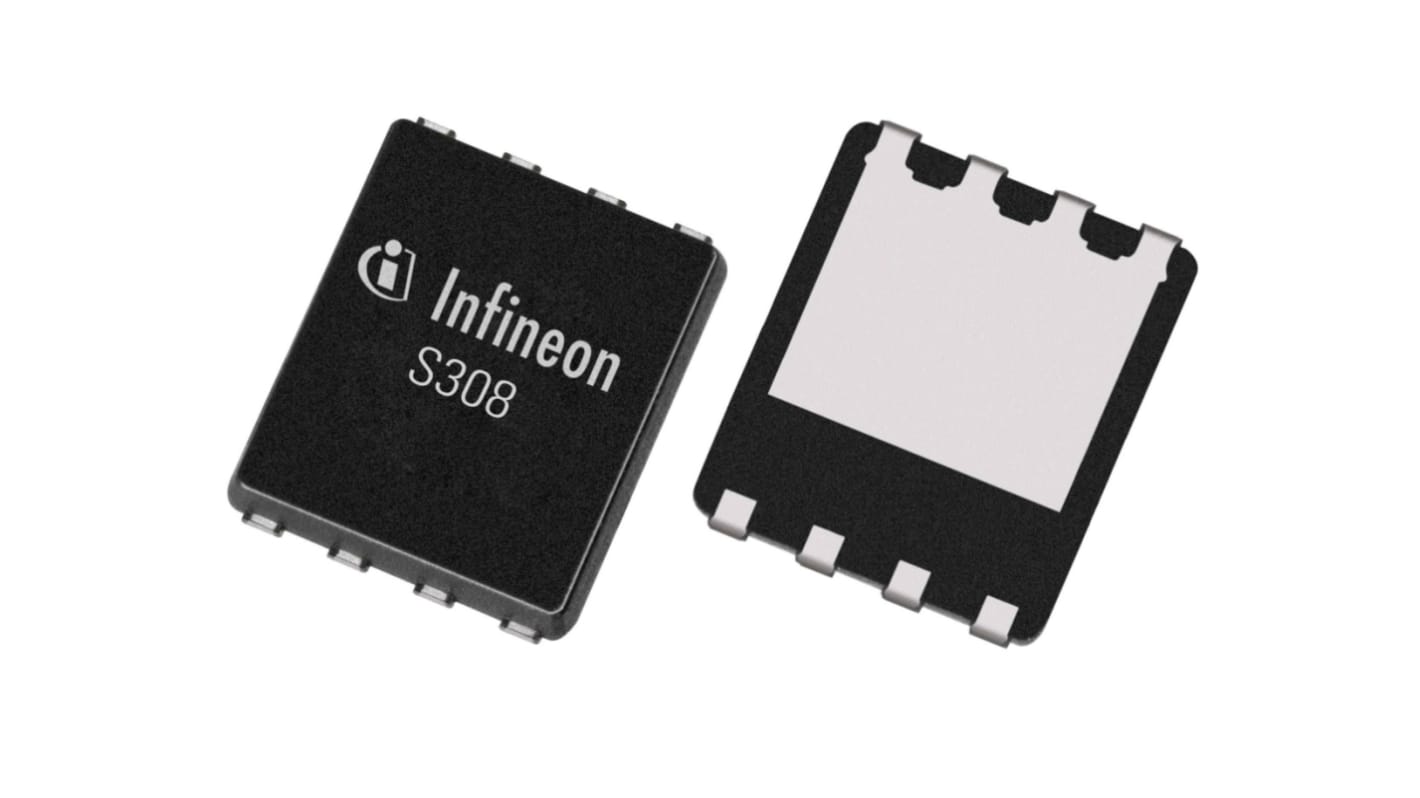

Infineon N-Channel MOSFET Transistor, 101 A, 60 V, 8-Pin SuperSO8 5 x 6 BSZ040N06LS5ATMA1
- RS Stock No.:
- 241-9680
- Mfr. Part No.:
- BSZ040N06LS5ATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£2,170.00
(exc. VAT)
£2,605.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.434 | £2,170.00 |
*price indicative
- RS Stock No.:
- 241-9680
- Mfr. Part No.:
- BSZ040N06LS5ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 101 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | SuperSO8 5 x 6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 101 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type SuperSO8 5 x 6 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Number of Elements per Chip 1 | ||
The Infineon OptiMOS™ 5 N-channel power MOSFET has 60 V drain source voltage (VDS) & 101 A drain current (ID). It's logic level are highly suitable for wireless charging, adapter and telecom applications. The devices' low gate charge (Q g) reduces switching losses without compromising conduction losses. The improved figues of merit allow operations at high switching frequencies. Furthermore, the logic level drive provides a low gate threshold voltage (V GS(th)) allowing the MOSFETs to be driven at 5V and directly from microcontrollers.
Optimized for high performance SMPS ,e.g. sync. rec.
100% avalanche tested
Superior thermal resistance
N-channel
Qualified according to JEDEC1) for target applications
Pb-free lead plating
RoHScompliant
Halogen-free according to IEC61249-2-21
100% avalanche tested
Superior thermal resistance
N-channel
Qualified according to JEDEC1) for target applications
Pb-free lead plating
RoHScompliant
Halogen-free according to IEC61249-2-21
