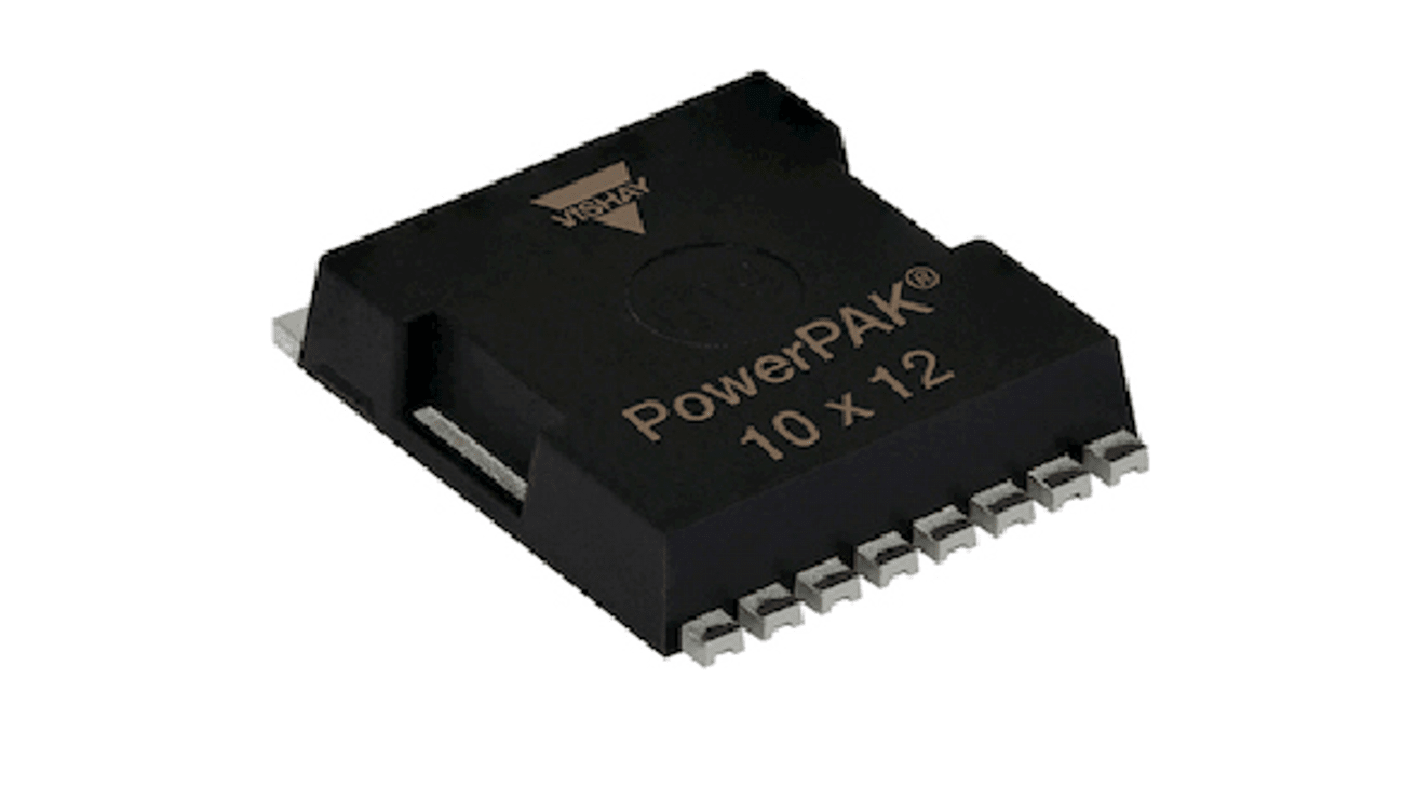

Vishay E Type N-Channel Power MOSFET, 42 A, 650 V Depletion, 8-Pin PowerPAK 10 x 12
- RS Stock No.:
- 239-8635
- Mfr. Part No.:
- SIHK055N60E-T1-GE3
- Brand:
- Vishay
Subtotal (1 reel of 2000 units)*
£5,744.00
(exc. VAT)
£6,892.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,000 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £2.872 | £5,744.00 |
*price indicative
- RS Stock No.:
- 239-8635
- Mfr. Part No.:
- SIHK055N60E-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Power MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 42A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | PowerPAK 10 x 12 | |
| Series | E | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.056Ω | |
| Channel Mode | Depletion | |
| Typical Gate Charge Qg @ Vgs | 54nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 30V | |
| Maximum Power Dissipation Pd | 236W | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | +150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Power MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 42A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type PowerPAK 10 x 12 | ||
Series E | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.056Ω | ||
Channel Mode Depletion | ||
Typical Gate Charge Qg @ Vgs 54nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 30V | ||
Maximum Power Dissipation Pd 236W | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature +150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
Vishay Series E Power MOSFET, 650V Maximum Drain Source Voltage, 42A Maximum Continuous Drain Current - SIHK055N60E-T1-GE3
This power MOSFET is a high-voltage N-channel transistor designed for switching and power management in demanding industrial and automotive contexts. It operates across a wide temperature range and is intended for surface-mounted assemblies where robust high-voltage handling and Compact packaging are required.
Features and Benefits:
• 650V drain rating enables high-voltage switching applications • 42A continuous drain current supports heavy-load operation • 0.056Ω low Rds(on) reduces conduction losses • 54nC typical gate charge balances switching speed and drive effort • 236W power dissipation allows sustained power handling • Rated to +150°C for elevated-temperature environments
Applications
• Suitable for power conversion stages in industrial automation • Ideal for motor drive inverter switching circuits • Used for high-voltage DC-DC converters in electrical systems • Can be used for automotive power management modules that require AEC-Q101 qualification
What mounting style is required for board assembly?
It is supplied in a PowerPAK 10x12 surface package with eight pins designed for surface-mount soldering processes and thermal conduction to the PCB.
How does the gate drive requirement affect controller selection?
The device supports gate-source voltages up to 30V and has a typical gate charge of 54nC, so drivers must source sufficient charge for desired switching transitions while remaining within the VGS limit.
What environmental extremes can it withstand during operation?
The component is specified for operation from -55°C up to +150°C, enabling use across a broad ambient and junction temperature range in harsh settings.
Are there industry approvals relevant to automotive use?
It meets AEC-Q101 standards for automotive-grade semiconductors and is RoHS compliant for material restrictions.
