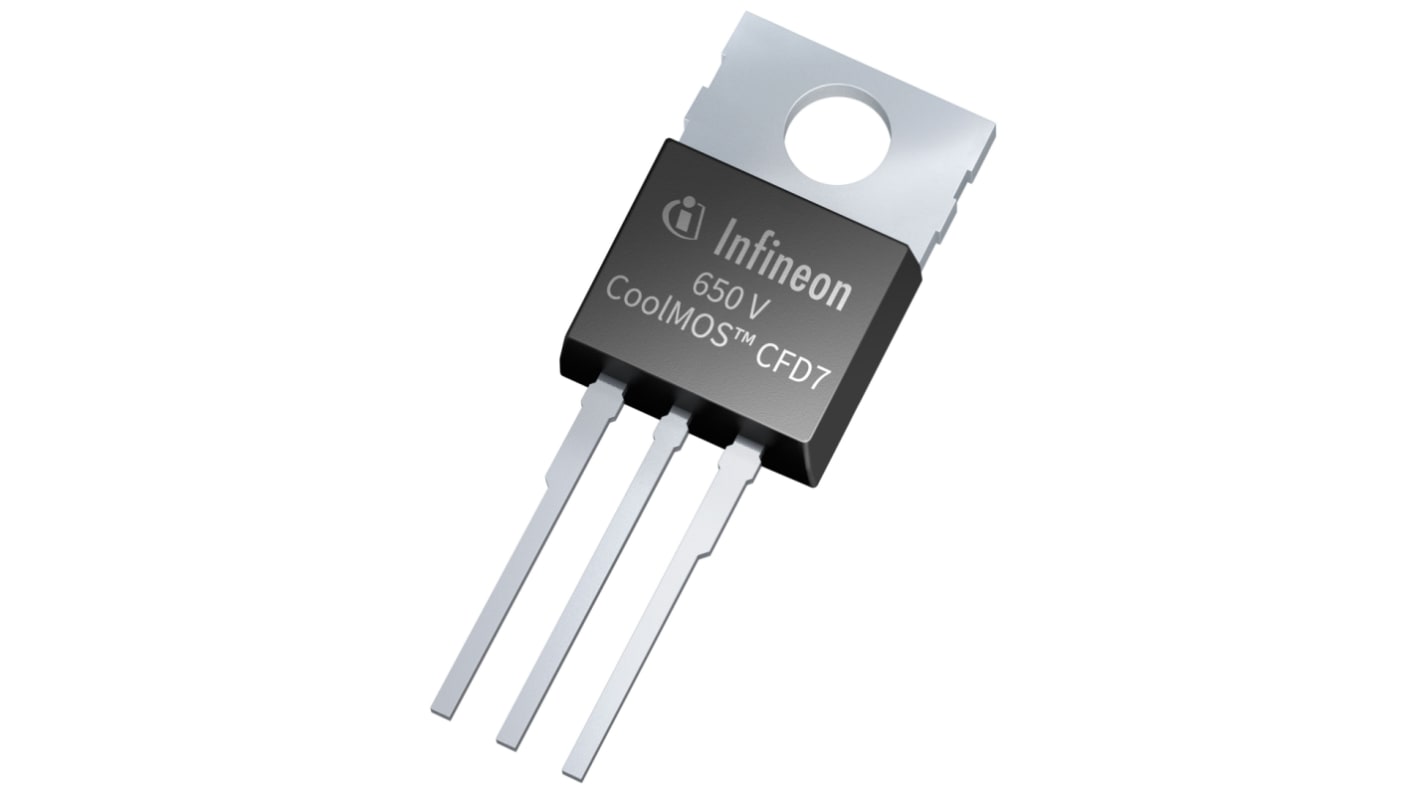

Infineon CoolMOS™ N-Channel MOSFET, 25 A, 700 V, 3-Pin TO-220 IPP65R090CFD7XKSA1
- RS Stock No.:
- 236-3662
- Mfr. Part No.:
- IPP65R090CFD7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£9.34
(exc. VAT)
£11.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 496 unit(s) ready to ship
- Plus 999,999,502 unit(s) shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £4.67 | £9.34 |
| 10 - 18 | £4.205 | £8.41 |
| 20 - 48 | £3.97 | £7.94 |
| 50 - 98 | £3.69 | £7.38 |
| 100 + | £3.41 | £6.82 |
*price indicative
- RS Stock No.:
- 236-3662
- Mfr. Part No.:
- IPP65R090CFD7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 25 A | |
| Maximum Drain Source Voltage | 700 V | |
| Package Type | TO-220 | |
| Series | CoolMOS™ | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.9 Ω | |
| Maximum Gate Threshold Voltage | 4.5V | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 25 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type TO-220 | ||
Series CoolMOS™ | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.9 Ω | ||
Maximum Gate Threshold Voltage 4.5V | ||
Number of Elements per Chip 1 | ||
The Infineon CoolMOS super junction MOSFET with integrated fast body diode is the perfect choice for resonant high power topologies. It is ideally suited for industrial applications, such as server, telecom, solar, and EV-charging stations, in which it enables significant efficiency improvements compared to competition. It has drain current of 25 A.
Excellent hard-commutation ruggedness
Extra safety margin for designs with increased bus voltage
Enabling increased power density
Outstanding light-load efficiency in industrial SMPS applications
Improved full-load efficiency in industrial SMPS applications
Price competitiveness compared to alternative offerings in the market
Extra safety margin for designs with increased bus voltage
Enabling increased power density
Outstanding light-load efficiency in industrial SMPS applications
Improved full-load efficiency in industrial SMPS applications
Price competitiveness compared to alternative offerings in the market
